E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

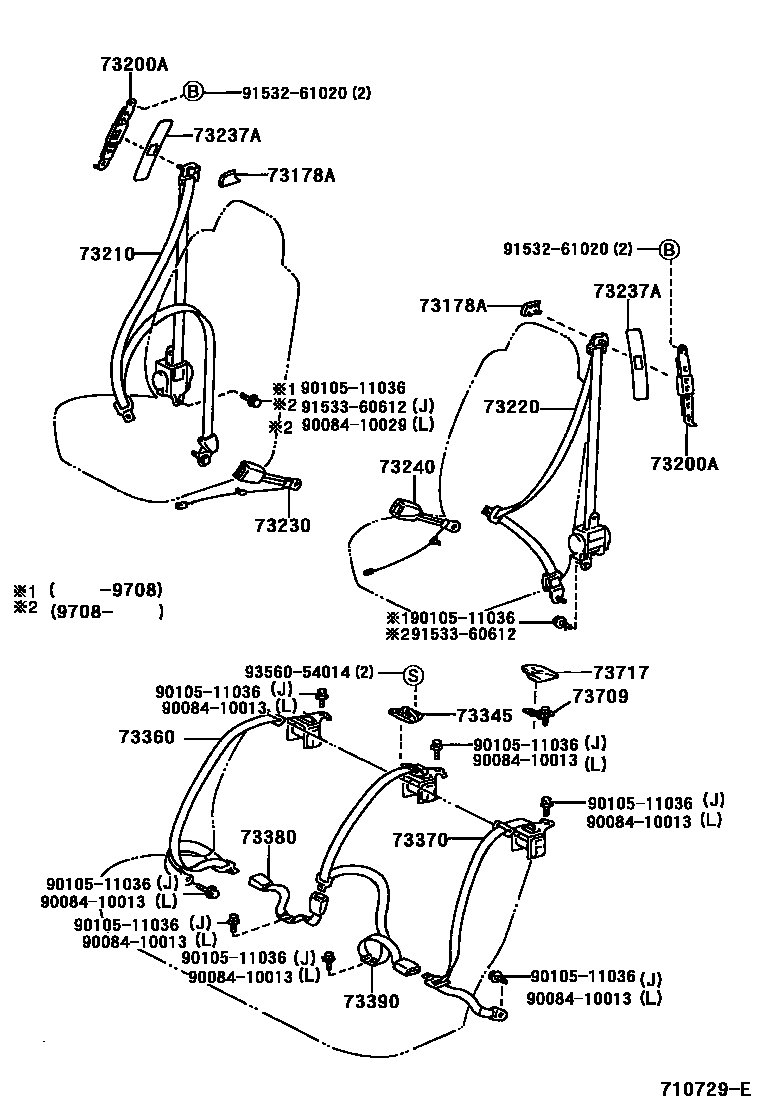

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-07020-A0i199607-200002
IVORY,TRIM4#
sub73178-07020
main73178-07020-B1i199607-200002
LT.GRAY,TRIM1#
sub73178-07020
main73178-07020-G0i199607-200002
SAGE,TRIM6#
sub73178-07020
main73178-AA010-A0i200002
IVORY,TRIM4#
sub73178-AA010
sub73178-33020
main73178-AA010-B0i200002
LT.GRAY,TRIM1#
sub73178-AA010
sub73178-33020
main73178-AA010-G0i200002
SAGE,TRIM6#
sub73178-AA010
sub73178-33020
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-AA010-A0i199607-199808
IVORY,TRIM4#
main73200-AA010-B1i199607-199808
LT.GRAY,TRIM1#
main73200-AA010-G1i199607-199808
SAGE,TRIM6#
main73200-AA030-A0i199808-199908
IVORY,TRIM4#
main73200-AA030-B0i199808-199908
LT.GRAY,TRIM1#
main73200-AA030-G0i199808-199908
SAGE,TRIM6#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-AA030-B0i199607-199708
BLUISH GRAY,TRIM1#
sub73210-AA030
main73210-AA030-E0i199607-199708
OAK,TRIM4#
sub73210-AA030
main73210-AA030-G0i199607-199708
DARK AGATE,TRIM6#
sub73210-AA030
main73210-AA040-B0i199708-199808
BLUISH GRAY,TRIM1#
sub73210-AA040
main73210-AA040-E0i199708-199808
OAK,TRIM4#
sub73210-AA040
main73210-AA040-G0i199708-199808
DARK AGATE,TRIM6#
sub73210-AA040
main73210-AA060-B0i199808-199901
BLUISH GRAY,TRIM1#
sub73210-AA062
main73210-AA060-E0i199808-199901
OAK,TRIM4#
sub73210-AA062
main73210-AA060-G0i199808-199901
DARK AGATE,TRIM6#
sub73210-AA062
main73210-AA060-G0i199810-199908
DARK AGATE,TRIM1#
sub73210-AA062
main73210-AA062-B0i199901-200006
BLUISH GRAY,TRIM1#
sub73210-AA062
main73210-AA062-E0i199901-200006
OAK,TRIM4#
sub73210-AA062
main73210-AA062-G0i199901-200006
DARK AGATE,TRIM6#
sub73210-AA062
main73210-AA063-B0i200006
BLUISH GRAY,TRIM1#
sub73210-AA063
main73210-AA063-E0i200006
OAK,TRIM4#
sub73210-AA063
main73210-AA063-G0i200006
AGATE,TRIM6#
sub73210-AA063
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-AA040-B0i199607-199610
BLUISH GRAY,TRIM1#
sub73220-AA041
main73220-AA040-E0i199607-199610
OAK,TRIM4#
sub73220-AA041
main73220-AA040-G0i199607-199610
DARK AGATE,TRIM6#
sub73220-AA041
main73220-AA041-B0i199610-199708
BLUISH GRAY,TRIM1#
sub73220-AA041
main73220-AA041-E0i199610-199708
OAK,TRIM4#
sub73220-AA041
main73220-AA041-G0i199610-199708
DARK AGATE,TRIM6#
sub73220-AA041
main73220-AA050-B0i199708-199808
BLUISH GRAY,TRIM1#
sub73220-AA050
main73220-AA050-E0i199708-199808
OAK,TRIM4#
sub73220-AA050
main73220-AA050-G0i199708-199808
DARK AGATE,TRIM6#
sub73220-AA050
main73220-AA070-B0i199808-199901
BLUISH GRAY,TRIM1#
sub73220-AA072
main73220-AA070-E0i199808-199901
OAK,TRIM4#
sub73220-AA072
main73220-AA070-G0i199808-199901
DARK AGATE,TRIM6#
sub73220-AA072
main73220-AA072-B0i199901-200006
BLUISH GRAY,TRIM1#
sub73220-AA072
main73220-AA072-E0i199901-200006
OAK,TRIM4#
sub73220-AA072
main73220-AA072-G0i199901-200006
DARK AGATE,TRIM6#
sub73220-AA072
main73220-AA073-B0i200006
BLUISH GRAY,TRIM1#
sub73220-AA073
main73220-AA073-E0i200006
OAK,TRIM4#
sub73220-AA073
main73220-AA073-G0i200006
AGATE,TRIM6#
sub73220-AA073
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-AA020-B0i199607
BLUISH GRAY,TRIM1#
sub73230-AA020
main73230-AA020-E0i199607
OAK,TRIM4#
sub73230-AA020
main73230-AA020-G0i199607
DK.SAGE,TRIM6#
sub73230-AA020
73237ACOVER, SHOULDER BELT ANCHOR
main73237-AA010-A0i199607
IVORY,TRIM4#
main73237-AA010-B0i199607
LT.GRAY,TRIM1#
main73237-AA010-G0i199607
SAGE,TRIM6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-AA020-B0i199607
BLUISH GRAY,TRIM1#
sub73240-AA020
main73240-AA020-E0i199607
OAK,TRIM4#
sub73240-AA020
main73240-AA020-G0i199607
DK.SAGE,TRIM6#
sub73240-AA020
main73240-AA030-B0i199607-199908
LEATHER SEAT,BLUISH GRAY,TRIM1#
sub73240-AA030
main73240-AA030-E0i199607-199908
LEATHER SEAT,OAK,TRIM4#
sub73240-AA030
main73240-AA030-G0i199607-199908
LEATHER SEAT,DK.SAGE,TRIM6#
sub73240-AA030
73345GUIDE, REAR SEAT SHOULDER BELT, CENTER
main73345-AA010-B1i199607
BLUE GRAY,TRIM1#
main73345-AA010-E1i199607
MD.OAK,TRIM4#
main73345-AA010-G1i199607
SAGE,TRIM6#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-AA030-B0i199607-199808
BLUISH GRAY,TRIM1#
sub73360-AA030
main73360-AA030-E0i199607-199808
OAK,TRIM4#
sub73360-AA030
main73360-AA030-G0i199607-199808
DARK AGATE,TRIM6#
sub73360-AA030
main73360-AA040-B0i199808
BLUISH GRAY,TRIM1#
sub73360-AA040
main73360-AA040-E0i199808
OAK,TRIM4#
sub73360-AA040
main73360-AA040-G0i199808
DARK AGATE,TRIM6#
sub73360-AA040
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-AA030-B0i199607-199808
BLUISH GRAY,TRIM1#
sub73370-AA030
main73370-AA030-E0i199607-199808
OAK,TRIM4#
sub73370-AA030
main73370-AA030-G0i199607-199808
DARK AGATE,TRIM6#
sub73370-AA030
main73370-AA040-B0i199808
BLUISH GRAY,TRIM1#
sub73370-AA040
main73370-AA040-E0i199808
OAK,TRIM4#
sub73370-AA040
main73370-AA040-G0i199808
DARK AGATE,TRIM6#
sub73370-AA040
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73470-AA010-B0i199607
BLUISH GRAY,TRIM1#
sub73470-AA010
main73470-AA010-E0i199607
OAK,TRIM4#
sub73470-AA010
main73470-AA010-G0i199607
DARK AGATE,TRIM6#
sub73470-AA010
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-AA020-B0i199607-199708
BLUISH GRAY,TRIM1#
sub73480-AA030
main73480-AA020-E0i199607-199708
OAK,TRIM4#
sub73480-AA030
main73480-AA020-G0i199607-199708
DARK AGATE,TRIM6#
sub73480-AA030
main73480-AA030-B0i199708-199808
BLUISH GRAY,TRIM1#
sub73480-AA030
main73480-AA030-E0i199708-199808
OAK,TRIM4#
sub73480-AA030
main73480-AA030-G0i199708-199808
DARK AGATE,TRIM6#
sub73480-AA030
main73480-AA040-B0i199808
BLUISH GRAY,TRIM1#
sub73480-AA040
main73480-AA040-E0i199808
OAK,TRIM4#
sub73480-AA040
main73480-AA040-G0i199808
DARK AGATE,TRIM6#
sub73480-AA040
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73708-33021i199908
LH & RH
main73708-33030i199908
CENTER
main73709-20010i199607-199808
73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main73717-50011-B2i199908
BLUISH GRAY,TRIM1#
sub73717-50011
main73717-50011-E2i199908
OAK,TRIM4#
sub73717-50011
main73717-50011-G1i199908
DK.SAGE,TRIM6#
sub73717-50011
9008410013
main90084-10013
9008410029
main90084-10029
9010511036
main90105-11036
9153261020
main91532-61020
9153360612
main91533-60612
9356054014
main93560-54014

20 parts on this diagram · 1 diagram in section
