REAR DOOR WINDOW REGULATOR & HINGE

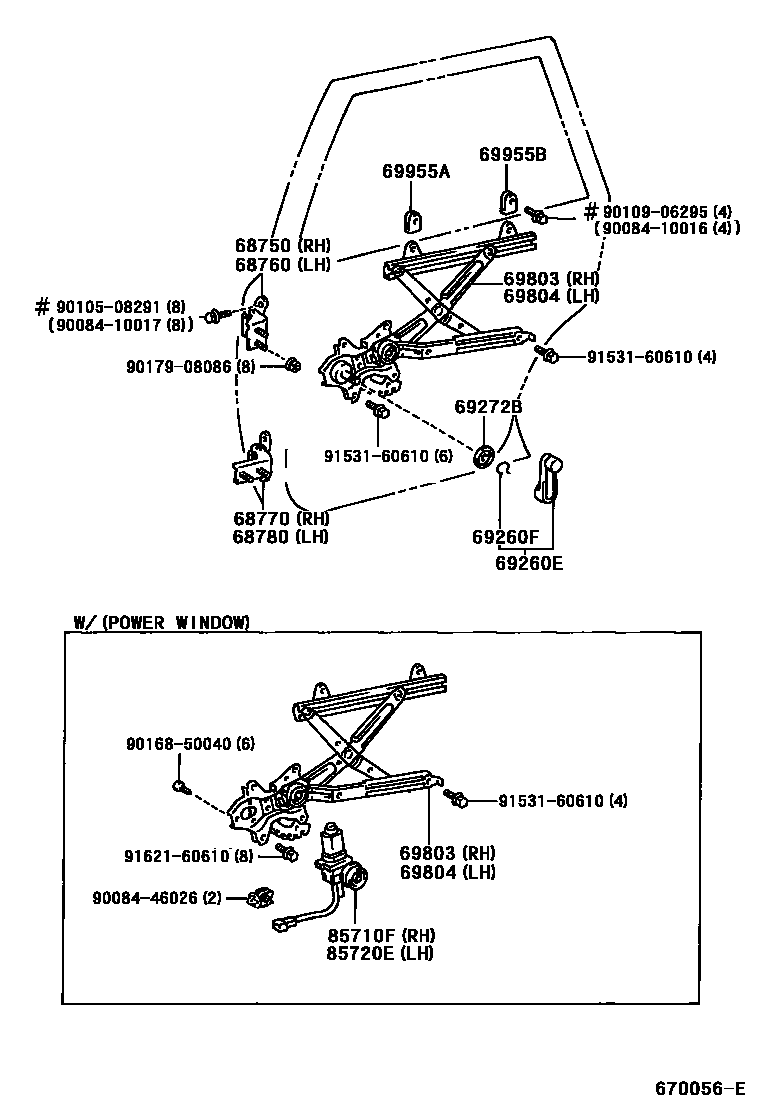

Parts diagram
68750HINGE ASSY, REAR DOOR, UPPER RH
main68750-AA010i199607
68760HINGE ASSY, REAR DOOR, UPPER LH
main68760-AA010i199607
68770HINGE ASSY, REAR DOOR, LOWER RH
main68770-07010i199607
68780HINGE ASSY, REAR DOOR, LOWER LH
main68780-07010i199607
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
main69260-AA010-B0i199607
BLUE GRAY,TRIM1#
main69260-AA010-E0i199607
MD.OAK,TRIM4#
main69260-AA010-G0i199607
SAGE.,TRIM6#
69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
main90080-52001i199607
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
main69268-01020i199607-199908
main69268-01020i199908
(L)
main69268-20020i199908
(J)
sub69285-22010
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-33010i199607
W(POWER WINDOW),(J)
main69803-AA010i199708
W(POWER WINDOW),(L)
main69830-AA040i199908
main69830-AA040i199607-199908
(L)
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
main69804-33010i199607
W(POWER WINDOW),(J)
main69804-AA010i199708
W(POWER WINDOW),(L)
main69840-AA040i199908
main69840-AA040i199607-199908
(L)
69955ACHANNEL, REAR DOOR GLASS
main69951-AA010i199607
69955BCHANNEL, REAR DOOR GLASS
main69951-AA020i199607
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-AA030i199607
85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-AA030i199607
9008410016
main90084-10016
9008410017
main90084-10017
9008446026
main90084-46026
9010508291
main90105-08291
9010906295
main90109-06295
9016850040
main90168-50040
9017908086
main90179-08086
9153160610
main91531-60610
9162160610
main91621-60610

22 parts on this diagram · 1 diagram in section
