REAR DOOR PANEL & GLASS

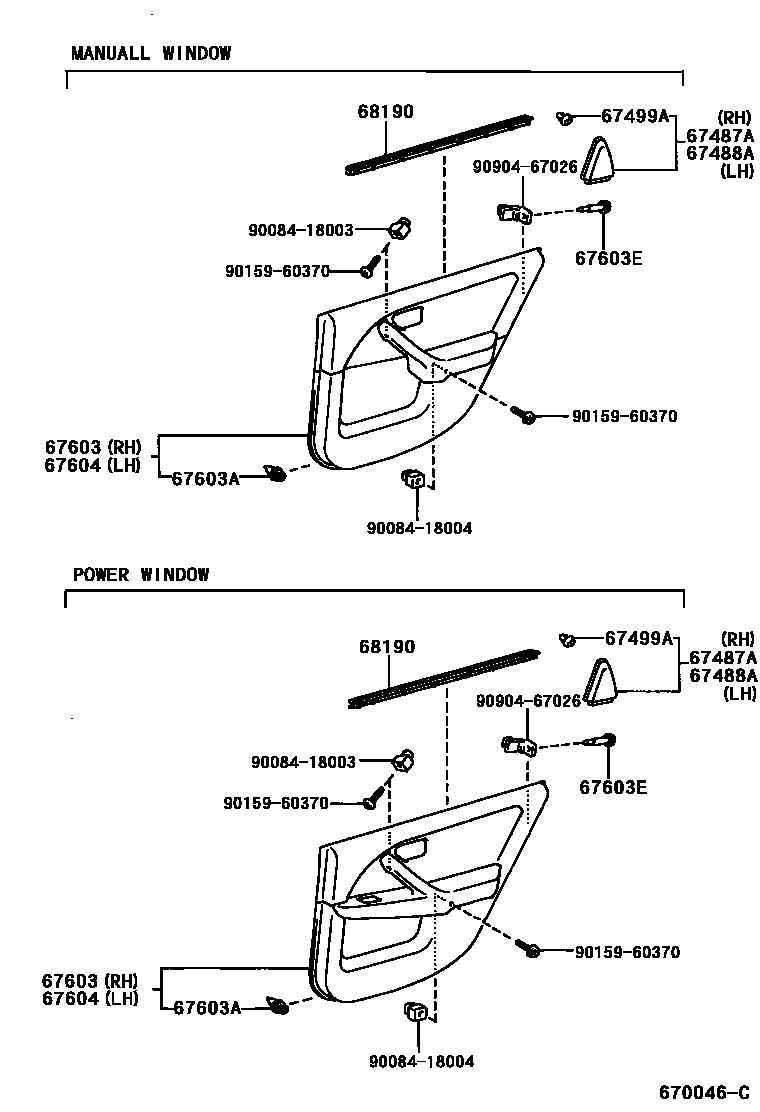

Parts diagram
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
main67487-AA010i199607
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
main67488-AA010i199607
67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH
main67499-06010i199607
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-AA010-B0i199607-199808
BLUISH GRAY,TRIM1#
main67630-AA010-E0i199607-199808
OAK,TRIM4#
main67630-AA010-G0i199607-199808
DK.SAGE,TRIM6#
main67630-AA020-B0i199607-199808
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67630-AA020-E0i199607-199808
W(POWER WINDOW),OAK,TRIM4#
main67630-AA020-G0i199607-199808
W(POWER WINDOW),DK.SAGE,TRIM6#
main67630-AA030-B0i199607-199908
BLUISH GRAY,TRIM1#
main67630-AA030-E0i199607-199908
OAK,TRIM4#
main67630-AA030-G0i199607-199908
DK.SAGE,TRIM6#
main67630-AA040-B0i199607-199708
BLUISH GRAY,TRIM1#
sub67630-AA040
sub67630-AA010
main67630-AA040-B1i199708-199908
BLUISH GRAY,TRIM1#
sub67630-AA040
sub67630-AA010
main67630-AA040-B4i199908-200107
BLUE GRAY,TRIM1#
sub67630-AA040
sub67630-AA010
main67630-AA040-E0i199607-199708
OAK,TRIM4#
sub67630-AA040
sub67630-AA010
main67630-AA040-E1i199708-199908
OAK,TRIM4#
sub67630-AA040
sub67630-AA010
main67630-AA040-E4i199908-200107
MD.OAK,TRIM4#
sub67630-AA040
sub67630-AA010
main67630-AA040-G0i199607-199708
DK.SAGE,TRIM6#
sub67630-AA040
sub67630-AA010
main67630-AA040-G1i199708-199908
SAGE,TRIM6#
sub67630-AA040
sub67630-AA010
main67630-AA040-G4i199908-200107
SAGE,TRIM6#
sub67630-AA040
sub67630-AA010
main67630-AA050-B0i199607-199908
W(LEATHER SEAT & POWER WINDOW),BLUISH GRAY,TRIM1#
sub67630-AA050
main67630-AA050-B1i199908-200107
W(LEATHER SEAT),BLUE GRAY,TRIM1#
sub67630-AA050
main67630-AA050-E0i199607-199908
W(LEATHER SEAT & POWER WINDOW),OAK,TRIM4#
sub67630-AA050
main67630-AA050-E1i199908-200107
W(LEATHER SEAT),MD.OAK,TRIM4#
sub67630-AA050
main67630-AA060-B0i199808-199908
BLUISH GRAY,TRIM1#
sub67630-AA060
main67630-AA060-B1i199908-200107
BLUE GRAY,TRIM1#
sub67630-AA060
main67630-AA060-E0i199808-199908
OAK,TRIM4#
sub67630-AA060
main67630-AA060-E1i199908-200107
MD.OAK,TRIM4#
sub67630-AA060
main67630-AA060-G0i199808-199908
DK.SAGE,TRIM6#
sub67630-AA060
main67630-AA060-G1i199908-200107
SAGE,TRIM6#
sub67630-AA060
main67630-AA070-B0i199808-199908
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67630-AA070
main67630-AA070-B1i199908-200107
W(POWER WINDOW),BLUE GRAY,TRIM1#
sub67630-AA070
main67630-AA070-E0i199808-199908
W(POWER WINDOW),OAK,TRIM4#
sub67630-AA070
main67630-AA070-E1i199908-200107
W(POWER WINDOW),MD.OAK,TRIM4#
sub67630-AA070
main67630-AA070-G0i199808-199908
W(POWER WINDOW),DK.SAGE,TRIM6#
sub67630-AA070
main67630-AA070-G1i199908-200107
W(POWER WINDOW),SAGE,TRIM6#
sub67630-AA070
main67630-AA080-B1i199908-200107
BLUE GRAY,TRIM1#
sub67630-AA090
main67630-AA080-E1i199908-200107
MD.OAK,TRIM4#
sub67630-AA090
main67630-AA080-G1i199908-200107
SAGE,TRIM6#
sub67630-AA090
main67630-AA090-B0i199908-200107
W(JBL SPEAKER),BLUE GRAY,TRIM1#
main67630-AA090-E0i199908-200107
W(JBL SPEAKER),MD.OAK,TRIM4#
main67630-AA090-G0i199908-200107
W(JBL SPEAKER),SAGE,TRIM6#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
main67771-06070i199607-200003
sub67771-06030
main67771-12050i200003
67603ECLIP(FOR REAR DOOR TRIM BOARD)
main90467-07066-B5i199607
BLUISH GRAY,TRIM1#
sub90467-07066
main90467-07066-E0i199607
OAK,TRIM4#
sub90467-07066
main90467-07066-G2i199607
DK.SAGE,TRIM6#
sub90467-07066
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-AA010-B0i199607-199808
BLUISH GRAY,TRIM1#
main67640-AA010-E0i199607-199808
OAK,TRIM4#
main67640-AA010-G0i199607-199808
DK.SAGE,TRIM6#
main67640-AA020-B0i199607-199808
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67640-AA020-E0i199607-199808
W(POWER WINDOW),OAK,TRIM4#
main67640-AA020-G0i199607-199808
W(POWER WINDOW),DK.SAGE,TRIM6#
main67640-AA030-B0i199607-199908
BLUISH GRAY,TRIM1#
main67640-AA030-E0i199607-199908
OAK,TRIM4#
main67640-AA030-G0i199607-199908
DK.SAGE,TRIM6#
main67640-AA040-B0i199607-199708
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67640-AA040
main67640-AA040-B1i199708-199908
BLUISH GRAY,TRIM1#
sub67640-AA040
main67640-AA040-B4i199908-200107
BLUE GRAY,TRIM1#
sub67640-AA040
main67640-AA040-E0i199607-199708
W(POWER WINDOW),OAK,TRIM4#
sub67640-AA040
main67640-AA040-E1i199708-199908
OAK,TRIM4#
sub67640-AA040
main67640-AA040-E4i199908-200107
MD.OAK,TRIM4#
sub67640-AA040
main67640-AA040-G0i199607-199708
DK.SAGE,TRIM6#
sub67640-AA040
main67640-AA040-G1i199708-199908
SAGE,TRIM6#
sub67640-AA040
main67640-AA040-G4i199908-200107
SAGE,TRIM6#
sub67640-AA040
main67640-AA050-B0i199607-199908
W(LEATHER SEAT & POWER WINDOW),BLUISH GRAY,TRIM1#
sub67640-AA050
main67640-AA050-B1i199908-200107
W(LEATHER SEAT),BLUE GRAY,TRIM1#
sub67640-AA050
main67640-AA050-E0i199607-199908
W(LEATHER SEAT & POWER WINDOW),OAK,TRIM4#
sub67640-AA050
main67640-AA050-E1i199908-200107
W(LEATHER SEAT),MD.OAK,TRIM4#
sub67640-AA050
main67640-AA060-B0i199808-199908
BLUISH GRAY,TRIM1#
sub67640-AA060
main67640-AA060-B1i199908-200107
BLUE GRAY,TRIM1#
sub67640-AA060
main67640-AA060-E0i199808-199908
OAK,TRIM4#
sub67640-AA060
main67640-AA060-E1i199908-200107
MD.OAK,TRIM4#
sub67640-AA060
main67640-AA060-G0i199808-199908
DK.SAGE,TRIM6#
sub67640-AA060
main67640-AA060-G1i199908-200107
SAGE,TRIM6#
sub67640-AA060
main67640-AA070-B0i199808-199908
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67640-AA070
main67640-AA070-B1i199908-200107
W(POWER WINDOW),BLUE GRAY,TRIM1#
sub67640-AA070
main67640-AA070-E0i199808-199908
W(POWER WINDOW),OAK,TRIM4#
sub67640-AA070
main67640-AA070-E1i199908-200107
W(POWER WINDOW),MD.OAK,TRIM4#
sub67640-AA070
main67640-AA070-G0i199808-199908
W(POWER WINDOW),DK.SAGE,TRIM6#
sub67640-AA070
main67640-AA070-G1i199908-200107
W(POWER WINDOW),SAGE,TRIM6#
sub67640-AA070
main67640-AA080-B1i199908-200107
BLUE GRAY,TRIM1#
sub67640-AA090
main67640-AA080-E1i199908-200107
MD.OAK,TRIM4#
sub67640-AA090
main67640-AA080-G1i199908-200107
SAGE,TRIM6#
sub67640-AA090
main67640-AA090-B0i199908-200107
W(JBL SPEAKER),BLUE GRAY,TRIM1#
main67640-AA090-E0i199908-200107
W(JBL SPEAKER),MD.OAK,TRIM4#
main67640-AA090-G0i199908-200107
W(JBL SPEAKER),SAGE,TRIM6#
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68190-AA020i199607
9008418003
main90084-18003
9008418004
main90084-18004
9015960370
main90159-60370
9090467026
main90904-67026

12 parts on this diagram · 2 diagrams in section
