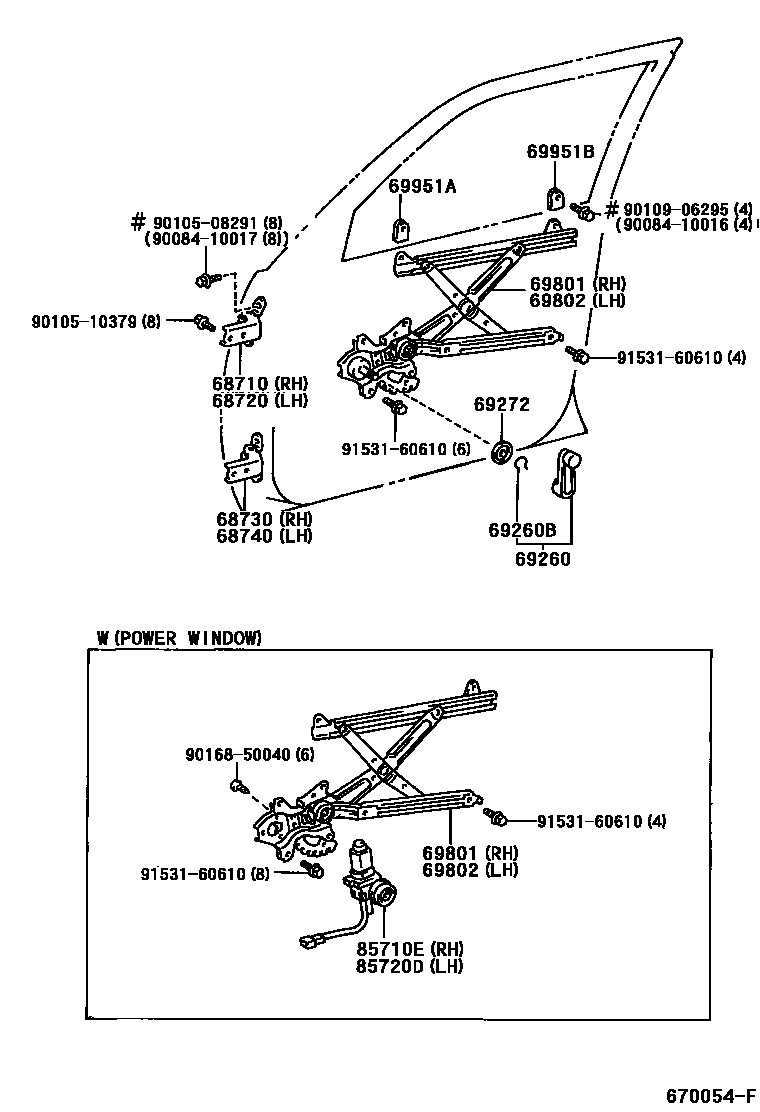

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-07010iMCV20,SXV20..NAP199607

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-07010iMCV20,SXV20..NAP199607

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-07010iMCV20,SXV20..NAP199607

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-07010iMCV20,SXV20..NAP199607

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-AA010-B0iMCV20,SXV20..NAP..CE199607

BLUE GRAY,TRIM1#

main69260-AA010-E0iMCV20,SXV20..NAP..CE199607

MD.OAK,TRIM4#

main69260-AA010-G0iMCV20,SXV20..NAP..CE199607

SAGE.,TRIM6#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52001iMCV20,SXV20..NAP..CE199607

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-01020iMCV20,SXV20..NAP..CE199607-199908

main69268-01020iSXV20..NAP..CE199908

(L)

main69268-20020iSXV20..NAP..CE199908

(J)

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-AA020iMCV20,SXV20..NAP199607

W(POWER WINDOW)

main69810-AA030iMCV20,SXV20..NAP..CE199607

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-AA020iMCV20,SXV20..NAP199607

W(POWER WINDOW)

main69820-AA030iMCV20,SXV20..NAP..CE199607

69951ACHANNEL, FRONT DOOR GLASS

main69951-AA010iMCV20,SXV20..NAP199607-199708

main69951-AA030iMCV20,SXV20..NAP199708

(L)

main69961-33020iMCV20,SXV20..NAP199708

(J)

69951BCHANNEL, FRONT DOOR GLASS

main69951-AA020iMCV20,SXV20..NAP199607-199708

main69951-AA040iMCV20,SXV20..NAP199708

(L)

main69963-33020iMCV20,SXV20..NAP199708

(J)

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AA020iMCV20,SXV20..NAP199607

sub85710-AA030

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AA020iMCV20,SXV20..NAP199607

9008410016

main90084-10016

9008410017

main90084-10017

9010508291

main90105-08291

9010510379

main90105-10379

9010906295

main90109-06295

9016850040

main90168-50040

9153160610

main91531-60610

20 parts on this diagram · 1 diagram in section
