FRONT DOOR PANEL & GLASS

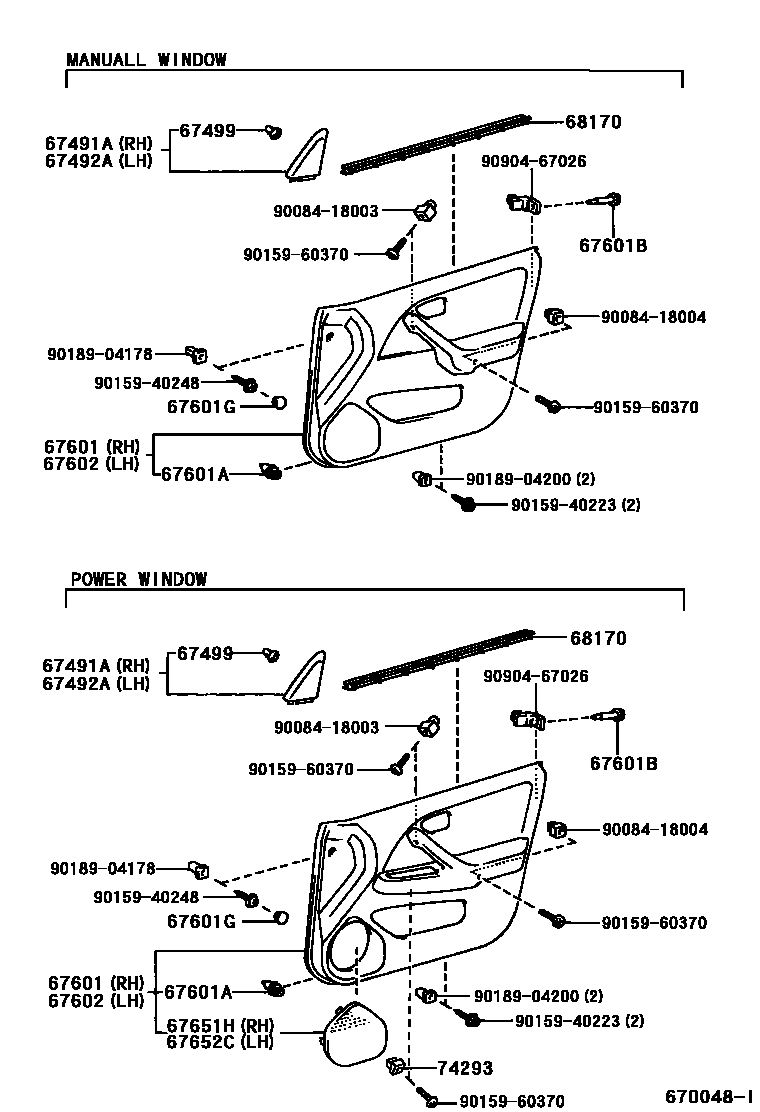

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-AA010i199607-199708
W(ELECTRIC REMOTE CONTOROL MIRROR)
main67491-AA020i199607
main67491-AA030i199607-199708
W(SPEAKER)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-AA010i199607-199708
W(ELECTRIC REMOTE CONTOROL MIRROR)
main67492-AA020i199607
main67492-AA030i199607-199708
W(SPEAKER)
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-06010i199607-199705
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-AA321-B0i199708-199808
W(POWER PACKAGE),BLUISH GRAY,TRIM1#
main67610-AA321-E0i199708-199808
W(POWER PACKAGE),OAK,TRIM4#
main67610-AA321-G0i199708-199808
DK.SAGE,TRIM6#
main67610-AA331-B0i199708-199908
BLUISH GRAY,TRIM1#
main67610-AA331-E0i199708-199908
OAK,TRIM4#
main67610-AA331-G0i199708-199908
DK.SAGE,TRIM6#
main67610-AA341-B0i199708-199908
BLUISH GRAY,TRIM1#
main67610-AA341-E0i199708-199908
OAK,TRIM4#
main67610-AA341-G0i199708-199908
DK.SAGE,TRIM6#
main67610-AA351-B0i199708-199908
W(LEATHER SEAT & POWER SEAT),BLUISH GRAY,TRIM1#
sub67610-AA351
main67610-AA351-B1i199908
W(LEATHER SEAT & POWER SEAT),BLUE GRAY,TRIM1#
sub67610-AA351
main67610-AA351-E0i199708-199908
W(LEATHER SEAT & POWER SEAT),OAK,TRIM4#
sub67610-AA351
main67610-AA351-E1i199908
W(LEATHER SEAT & POWER SEAT),MD.OAK,TRIM4#
sub67610-AA351
main67610-AA360-B0i199908
W(POWER SEAT & JBL SPEAKER),BLUE GRAY,TRIM1#
main67610-AA360-E0i199908
W(POWER SEAT & JBL SPEAKER),MD.OAK,TRIM4#
main67610-AA360-G0i199908
W(POWER SEAT & JBL SPEAKER),SAGE,TRIM6#
main67610-AA370-B0i199808-199908
BLUISH GRAY,TRIM1#
sub67610-AA370
main67610-AA370-B1i199908
BLUE GRAY,TRIM1#
sub67610-AA370
main67610-AA370-E0i199808-199908
OAK,TRIM4#
sub67610-AA370
main67610-AA370-E1i199908
MD.OAK,TRIM4#
sub67610-AA370
main67610-AA370-G0i199808-199908
DK.SAGE,TRIM6#
sub67610-AA370
main67610-AA370-G1i199908
SAGE,TRIM6#
sub67610-AA370
main67610-AA380-B0i199808-199908
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67610-AA380
main67610-AA380-B1i199908
W(POWER WINDOW),BLUE GRAY,TRIM1#
sub67610-AA380
main67610-AA380-E0i199808-199908
W(POWER WINDOW),OAK,TRIM4#
sub67610-AA380
main67610-AA380-E1i199908
W(POWER WINDOW),MD.OAK,TRIM4#
sub67610-AA380
main67610-AA380-G0i199808-199908
W(POWER WINDOW),DK.SAGE,TRIM6#
sub67610-AA380
main67610-AA380-G1i199908
W(POWER WINDOW),SAGE,TRIM6#
sub67610-AA380
main67610-AA390-B1i199908
BLUE GRAY,TRIM1#
main67610-AA390-E1i199908
MD.OAK,TRIM4#
main67610-AA390-G1i199908
SAGE,TRIM6#
main67610-AA400-B3i199908
BLUE GRAY,TRIM1#
main67610-AA400-E3i199908
MD.OAK,TRIM4#
main67610-AA400-G3i199908
SAGE,TRIM6#
main67610-AA410-B1i199908
W(LEATHER SEAT & JBL SPEAKER),BLUE GRAY,TRIM1#
main67610-AA410-E1i199908
W(LEATHER SEAT & JBL SPEAKER),MD.OAK,TRIM4#
main67610-AA480-B0i199607-199708
BLUISH GRAY,TRIM1#
main67610-AA480-E0i199607-199708
OAK,TRIM4#
main67610-AA480-G0i199607-199708
DK.SAGE,TRIM6#
main67610-AA481-B0i199708-199808
BLUISH GRAY,TRIM1#
main67610-AA481-E0i199708-199808
OAK,TRIM4#
main67610-AA481-G0i199708-199808
DK.SAGE,TRIM6#
main67610-AA490-B0i199607-199708
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67610-AA490-E0i199607-199708
W(POWER WINDOW),OAK,TRIM4#
main67610-AA490-G0i199607-199708
W(POWER WINDOW),DK.SAGE,TRIM6#
main67610-AA500-B0i199607-199708
BLUISH GRAY,TRIM1#
sub67610-AA500
main67610-AA500-E0i199607-199708
OAK,TRIM4#
sub67610-AA500
main67610-AA500-G0i199607-199708
DK.SAGE,TRIM6#
sub67610-AA500
main67610-AA510-B0i199607-199708
BLUISH GRAY,TRIM1#
sub67610-AA510
main67610-AA510-E0i199607-199708
OAK,TRIM4#
sub67610-AA510
main67610-AA510-G0i199607-199708
DK.SAGE,TRIM6#
sub67610-AA510
main67610-AA520-B0i199607-199708
LEATHER,BLUISH GRAY,TRIM1#
main67610-AA520-E0i199607-199708
LEATHER,OAK,TRIM4#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-06070i199607-200003
sub67771-06030
main67771-12050i200003
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-B5i199607
BLUISH GRAY,TRIM1#
sub90467-07066
main90467-07066-E0i199607
OAK,TRIM4#
sub90467-07066
main90467-07066-G2i199607
DK.SAGE,TRIM6#
sub90467-07066
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01746-B1i199607
BLUISH GRAY,TRIM1#
sub90950-01746
main90950-01746-B2i199607-199908
BLUE GRAY,TRIM10
sub90950-01746
main90950-01746-E0i199607
OAK,TRIM4#
sub90950-01746
main90950-01746-E4i199607-199908
MD.OAK,TRIM40
sub90950-01746
main90950-01746-G0i199608
DK.SAGE,TRIM6#
sub90950-01746
main90950-01746-G1i199708-199908
SAGE,TRIM60
sub90950-01746
main90950-01746-G1i199607-199908
SAGE,TRIM6#
sub90950-01746
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-AA320-B0i199808-199908
BLUISH GRAY,TRIM1#
sub67620-AA320
main67620-AA320-B1i199908
BLUE GRAY,TRIM1#
sub67620-AA320
main67620-AA320-E0i199808-199908
OAK,TRIM4#
sub67620-AA320
main67620-AA320-E1i199908
MD.OAK,TRIM4#
sub67620-AA320
main67620-AA320-G0i199808-199908
DK.SAGE,TRIM6#
sub67620-AA320
main67620-AA320-G1i199908
SAGE,TRIM6#
sub67620-AA320
main67620-AA330-B0i199808-199908
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67620-AA330
main67620-AA330-B1i199908
W(POWER WINDOW),BLUE GRAY,TRIM1#
sub67620-AA330
main67620-AA330-E0i199808-199908
W(POWER WINDOW),OAK,TRIM4#
sub67620-AA330
main67620-AA330-E1i199908
W(POWER WINDOW),MD.OAK,TRIM4#
sub67620-AA330
main67620-AA330-G0i199808-199908
W(POWER WINDOW),DK.SAGE,TRIM6#
sub67620-AA330
main67620-AA330-G1i199908
W(POWER WINDOW),SAGE,TRIM6#
sub67620-AA330
main67620-AA340-B1i199908
W(POWER WINDOW),BLUE GRAY,TRIM1#
main67620-AA340-E1i199908
W(POWER WINDOW),MD.OAK,TRIM4#
main67620-AA340-G1i199908
W(POWER WINDOW),SAGE,TRIM6#
main67620-AA350-B3i199908
W(POWER WINDOW),BLUE GRAY,TRIM1#
main67620-AA350-E3i199908
W(POWER WINDOW),MD.OAK,TRIM4#
main67620-AA350-G3i199908
W(POWER WINDOW),SAGE,TRIM6#
main67620-AA360-B1i199908
W(LEATHER SEAT & JBL SPEAKER),BLUE GRAY,TRIM1#
main67620-AA360-E1i199908
W(LEATHER SEAT & JBL SPEAKER),MD.SAGE,TRIM4#
main67620-AA370-B0i199908
W(POWER SEAT & JBL SPEAKER),BLUE GRAY,TRIM1#
main67620-AA370-E0i199908
W(POWER SEAT & JBL SPEAKER),MD.OAK,TRIM4#
main67620-AA370-G0i199908
W(POWER SEAT & JBL SPEAKER),SAGE,TRIM6#
main67620-AA480-B0i199607-199708
BLUISH GRAY,TRIM1#
main67620-AA480-E0i199607-199708
OAK,TRIM4#
main67620-AA480-G0i199607-199708
DK.SAGE,TRIM6#
main67620-AA481-B0i199708-199808
BLUISH GRAY,TRIM1#
main67620-AA481-E0i199708-199808
OAK,TRIM4#
main67620-AA481-G0i199708-199808
DK.SAGE,TRIM6#
main67620-AA490-B0i199607-199708
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67620-AA490-E0i199607-199708
W(POWER WINDOW),OAK,TRIM4#
main67620-AA490-G0i199607-199708
W(POWER WINDOW),DK.SAGE,TRIM6#
main67620-AA491-B0i199708-199808
W(POWER PACKAGE),BLUISH GRAY,TRIM1#
main67620-AA491-E0i199708-199808
W(POWER PACKAGE),OAK,TRIM4#
main67620-AA491-G0i199708-199808
W(POWER PACKAGE),DK.SAGE,TRIM6#
main67620-AA500-B0i199607-199708
BLUISH GRAY,TRIM1#
sub67620-AA500
main67620-AA500-E0i199607-199708
OAK,TRIM4#
sub67620-AA500
main67620-AA500-G0i199607-199708
DK.SAGE,TRIM6#
sub67620-AA500
main67620-AA501-B0i199708-199908
BLUISH GRAY,TRIM1#
main67620-AA501-E0i199708-199908
OAK,TRIM4#
main67620-AA501-G0i199708-199908
DK.SAGE,TRIM6#
main67620-AA510-B0i199607-199708
BLUISH GRAY,TRIM1#
sub67610-AC030
sub67620-AA510
main67620-AA510-E0i199607-199708
OAK,TRIM4#
sub67610-AC030
sub67620-AA510
main67620-AA510-G0i199607-199708
DK.SAGE,TRIM6#
sub67610-AC030
sub67620-AA510
main67620-AA511-B1i199708-199908
BLUISH GRAY,TRIM1#
main67620-AA511-E1i199708-199908
OAK,TRIM4#
main67620-AA511-G1i199708-199908
DK.SAGE,TRIM6#
main67620-AA520-B0i199607-199708
LEATHER,BLUISH GRAY,TRIM1#
sub67620-AA520
main67620-AA520-E0i199607-199708
LEATHER,OAK,TRIM4#
sub67620-AA520
main67620-AA521-B0i199708-199908
W(LEATHER SEAT & POWER SEAT),BLUISH GRAY,TRIM1#
sub67620-AA521
main67620-AA521-B1i199908
W(LEATHER SEAT & POWER SEAT),BLUE GRAY,TRIM1#
sub67620-AA521
main67620-AA521-E0i199708-199908
W(LEATHER SEAT & POWER SEAT),OAK,TRIM4#
sub67620-AA521
main67620-AA521-E1i199908
W(LEATHER SEAT & POWER SEAT),MD.OAK,TRIM4#
sub67620-AA521
67651HGRILLE, SPEAKER DOOR, RH
main67651-AA010-B0i199607-199908
BLUE GRAY,TRIM1#
main67651-AA010-E0i199607-199908
MD.OAK,TRIM4#
main67651-AA010-G0i199607-199908
SAGE,TRIM6#
main67651-AA020-B0i199908
W(MARK = JBL),BLUE GRAY,TRIM1#
main67651-AA020-E0i199908
W(MARK = JBL),MD.OAK,TRIM4#
main67651-AA020-G0i199908
W(MARK = JBL),SAGE,TRIM6#
67652CGRILLE, SPEAKER DOOR, LH
main67652-AA010-B0i199607-199908
BLUE GRAY,TRIM1#
main67652-AA010-E0i199607-199908
MD.OAK,TRIM4#
main67652-AA010-G0i199607-199908
SAGE,TRIM6#
main67652-AA020-B0i199908
W(MARK = JBL),BLUE GRAY,TRIM1#
main67652-AA020-E0i199908
W(MARK = JBL),MD.OAK,TRIM4#
main67652-AA020-G0i199908
W(MARK = JBL),SAGE,TRIM6#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-AA030i199607-199708
main68170-AA040i199708
74293PLATE, FRONT DOOR ARMREST, NO.1
main74294-32010i199607-199712
9008418003
main90084-18003
9008418004
main90084-18004
9015940223
main90159-40223
9015940248
main90159-40248
9015960370
main90159-60370
9018904178
main90189-04178
9018904200
main90189-04200
9090467026
main90904-67026

20 parts on this diagram · 2 diagrams in section
