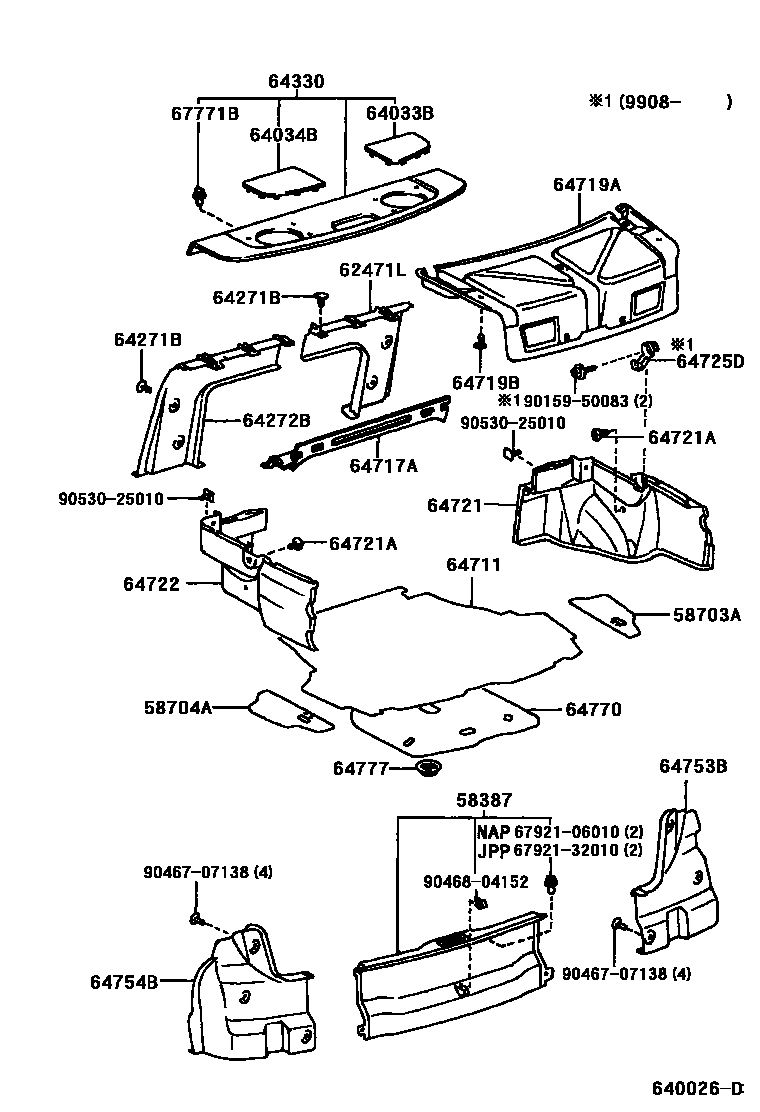

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-AA010iMCV20,SXV20..NAP199607

sub58387-33030

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06020iMCV20,SXV20..NAP199607

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-06020iMCV20,SXV20..NAP199607

62471LBOARD, ROOM PARTITION, RH

main64271-AA010iMCV20,SXV20..NAP199607

main64271-AA020iMCV20,SXV20..NAP199607-200103

W(CHILD RESTRAINT SYSTEM)

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-AA010-B0iMCV20,SXV20..NAP..(CE,LE)199607-199808

BLUISH GRAY,TRIM1#

main64033-AA010-E0iMCV20..NAP..MTM199607-199908

OAK,TRIM4#

main64033-AA010-G0iMCV20,SXV20..NAP..(CE,LE)..USA199607-199908

DK.SAGE,TRIM6#

main64033-AA020-B0iMCV20,SXV20..NAP..LE199607-199908

LEATHER,BLUISH GRAY,TRIM1#

main64033-AA020-E0iMCV20,SXV20..NAP..LE199607-199908

LEATHER,OAK,TRIM4#

main64033-AA020-G0iMCV20,SXV20..NAP..(LE,XLE)199607-199908

LEATHER,DK.SAGE,TRIM6#

main64033-AA030-B0iMCV20,SXV20..NAP..(LE,XLE)199908

W(MARK = JBL),BLUISH GRAY,TRIM1#

main64033-AA030-E0iMCV20,SXV20..NAP..(LE,XLE)199908

W(MARK = JBL),OAK,TRIM4#

main64033-AA030-G0iMCV20,SXV20..NAP..(LE,XLE)199908

W(MARK = JBL),DK.SAGE,TRIM6#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-AA010-B0iMCV20,SXV20..NAP..LE..USA199607-199808

BLUISH GRAY,TRIM1#

main64034-AA010-E0iMCV20,SXV20..NAP..(CE,LE)..USA199607-199908

OAK,TRIM4#

main64034-AA010-G0iMCV20,SXV20..NAP..(CE,LE)..USA199607-199908

DK.SAGE,TRIM6#

main64034-AA020-B0iMCV20,SXV20..NAP..LE199607-199908

LEATHER,BLUISH GRAY,TRIM1#

main64034-AA020-E0iMCV20,SXV20..NAP..LE199607-199908

LEATHER,OAK,TRIM4#

main64034-AA020-G0iMCV20,SXV20..NAP..(LE,XLE)199607-199908

LEATHER,DK.SAGE,TRIM6#

main64034-AA030-B0iMCV20,SXV20..NAP..(LE,XLE)199908

W(MARK = JBL),BLUISH GRAY,TRIM1#

main64034-AA030-E0iMCV20,SXV20..NAP..(LE,XLE)199908

W(MARK = JBL),OAK,TRIM4#

main64034-AA030-G0iMCV20,SXV20..NAP..(LE,XLE)199908

W(MARK = JBL),DK.SAGE,TRIM6#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90080-46294iMCV20,SXV20..NAP199912

main90467-07146iMCV20,SXV20..NAP199607-199912

64272BBOARD, ROOM PARTITION, LH

main64272-AA010iMCV20,SXV20..NAP199607

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-AA050-B0iMCV20,SXV20..NAP..(CE,LE)..USA199607-199908

BLUISH GRAY,TRIM1#

sub64330-AA070

main64330-AA050-E0iMCV20,SXV20..NAP..(CE,LE)199607-199908

OAK,TRIM4#

sub64330-AA070

main64330-AA050-G0iMCV20,SXV20..NAP..(CE,LE)..USA199607-199709

DARK SAGE,TRIM6#

sub64330-AA070

main64330-AA051-B0iMCV20,SXV20..NAP..(CE,LE)199908

LIGMA,BLUISH GRAY,TRIM1#

sub64330-AA071

main64330-AA051-E0iMCV20,SXV20..NAP..(CE,LE)199908

LIGMA,OAK,TRIM4#

sub64330-AA071

main64330-AA060-B0iMCV20..NAP..LE;SXV20..NAP..(LE,XLE);MCV20..NAP..XLE..USA199607-199908

LEATHER,BLUISH GRAY,TRIM1#

main64330-AA060-E0iMCV20..NAP..LE;SXV20..NAP..(LE,XLE);MCV20..NAP..XLE..USA199607-199908

LEATHER,OAK,TRIM4#

main64330-AA060-G0iMCV20,SXV20..NAP..XLE..USA199607-199908

W(LEATHER SEAT),DARK SAGE,TRIM6#

main64330-AA061-B0iMCV20,SXV20..NAP..LE199908

LIGMA & W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main64330-AA061-E0iMCV20,SXV20..NAP..LE199908

LIGMA & W(LEATHER SEAT),OAK,TRIM4#

main64330-AA070-G0iMCV20,SXV20..NAP..(CE,LE)..USA199709-199908

DARK SAGE,TRIM6#

sub64330-AA071

main64330-AA071-G0iMCV20,SXV20..NAP..(CE,LE)199908

AMTEX,DARK SAGE,TRIM6#

sub64330-AA051

main64330-AA081-B0iMCV20,SXV20..NAP..LE199908

AMTEX & W(LEATHER SEAT),BLUISH GRAY,TRIM1#

sub64330-AA061

main64330-AA081-E0iMCV20,SXV20..NAP..LE199908

AMTEX & W(LEATHER SEAT),OAK,TRIM4#

sub64330-AA061

main64330-AA090-B0iMCV20,SXV20..NAP..CND199708-199808

BLUISH GRAY,TRIM1#

main64330-AA090-E0iMCV20,SXV20..NAP..CND199708-199808

OAK,TRIM4#

main64330-AA090-G0iMCV20,SXV20..NAP..(CE,LE)..CND199708-199808

DARK SAGE,TRIM6#

main64330-AA100-B0iMCV20,SXV20..NAP..(LE,XLE)..CND199708-199808

W(LEATHER SEAT & POWER SEAT),BLUISH GRAY,TRIM1#

main64330-AA100-E0iMCV20,SXV20..NAP..(LE,XLE)..CND199708-199808

W(LEATHER SEAT & POWER SEAT),OAK,TRIM4#

main64330-AA100-G0iMCV20..NAP..XLE..CND199708-199808

DARK SAGE,TRIM6#

main64330-AA131-G0iMCV20,SXV20..NAP..(LE,XLE)199908

AMTEX & W(MARK = JBL),DARK SAGE,TRIM6#

sub64330-AA141

main64330-AA141-B0iMCV20,SXV20..NAP..(LE,XLE)199908

LIGMA & W(MARK = JBL),BLUISH GRAY,TRIM1#

main64330-AA141-E0iMCV20,SXV20..NAP..(LE,XLE)199908

LIGMA & W(MARK = JBL),OAK,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-AA010-C0iMCV20,SXV20..NAP199607

BLACK,TRIM1#,4#,6#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-AA010-C0iMCV20,SXV20..NAP199607

BLACK,TRIM1#,4#,6#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-AA010-C0iMCV20,SXV20..NAP199607-199908

BLACK,TRIM1#,4#,6#

main64719-AA011-C0iMCV20,SXV20..NAP199908-200008

BLACK,TRIM1#,4#,6#

main64719-AA030-C0iMCV20,SXV20..NAP200008

BLACK,TRIM1#,4#,6#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07042-C0iMCV20..NAP..ATM;SXV20..NAP..CE..CND;SXV20..NAP..(LE,XLE)199607-199808

BLACK,TRIM1#,4#,6#

sub90467-07042

sub90467-06175

main90467-07042-C0iMCV20,SXV20..NAP..CE..USA199607-199808

BLACK,TRIM4#,6#

sub90467-07042

sub90467-06175

main90467-07138iMCV20,SXV20..NAP199802-200008

main90467-07146iMCV20,SXV20..NAP199607-199802

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-AA010-C0iMCV20,SXV20..NAP199607-199908

BLACK,TRIM1#,4#,6#

sub64721-AA011

main64721-AA011-C0iMCV20,SXV20..NAP199908

BLACK,TRIM1#,4#,6#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0iMCV20,SXV20..NAP..CE..USA199607-199808

BLACK,TRIM4#,6#

sub90467-07042

sub90467-06175

main90467-07042-C0iMCV20,SXV20..NAP..CE..USA199607-199908

BLACK,TRIM1#,4#,6#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-AA010-C0iMCV20..NAP..ATM;SXV20..NAP..CE..CND;SXV20..NAP..(LE,XLE)199607-199808

BLACK,TRIM4#,6#

sub64722-AA011

main64722-AA010-C0iMCV20,SXV20..NAP..CE..USA199607-199908

BLACK,TRIM1#,4#,6#

sub64722-AA011

main64722-AA011-C0iMCV20,SXV20..NAP199908

BLACK,TRIM1#,4#,6#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-AA020iMCV20,SXV20..NAP199908

64753BPLATE, REAR FLOOR FINISH SIDE, RH

main64753-AA010iMCV20,SXV20..NAP199607-199908

sub64753-AA020

main64753-AA020iMCV20,SXV20..NAP199908

64754BPLATE, REAR FLOOR FINISH SIDE, LH

main64754-AA010iMCV20,SXV20..NAP199607-199908

sub64754-AA020

main64754-AA020iMCV20,SXV20..NAP199908

64770COVER ASSY, SPARE WHEEL

main64770-06030iMCV20,SXV20..NAP199607

sub64770-06031

64777CLAMP, SPARE WHEEL COVER

main64777-32030iMCV20,SXV20..NAP199607

67771BRETAINER, PACKAGE TRAY TRIM

main67771-16080iMCV20,SXV20..NAP199607-199908

6792106010RETAINER, FRONT DOOR SCUFF PLATE

main67921-06010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9015950083

main90159-50083

9046707138

main90467-07138

9046804152

main90468-04152

9053025010

main90530-25010

28 parts on this diagram · 1 diagram in section
