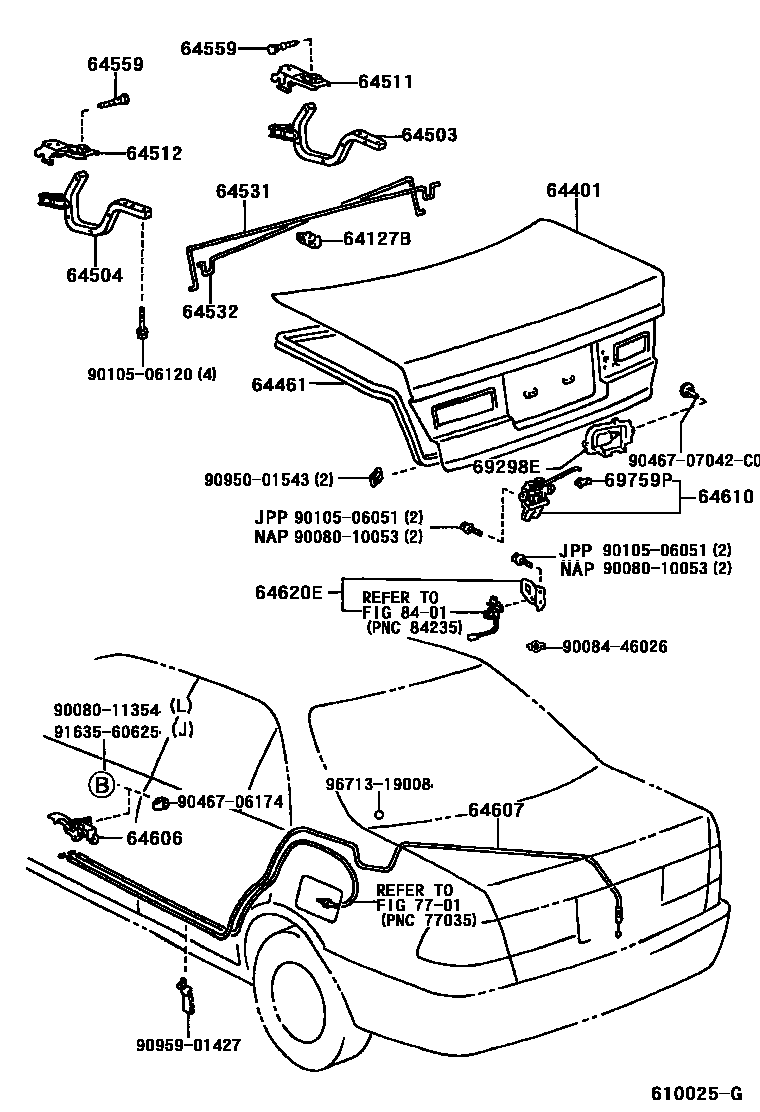

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
69298ECOVER, LUGGAGE COMPONENT DOOR INSIDE HANDLE
69759PSNAP, DOOR LOCK CONTROL LINK
7701
8401
9008010053
main90080-10053
9008011354
main90080-11354
9008446026
main90084-46026
9010506051
main90105-06051
9010506120
main90105-06120
9046706174
main90467-06174
9046707042C0
main90467-07042C0
9095001543
main90950-01543
9095901427
main90959-01427
9163560625
main91635-60625
9671319008
main96713-19008
29 parts on this diagram · 1 diagram in section
