EPC Data

SIDE MEMBER

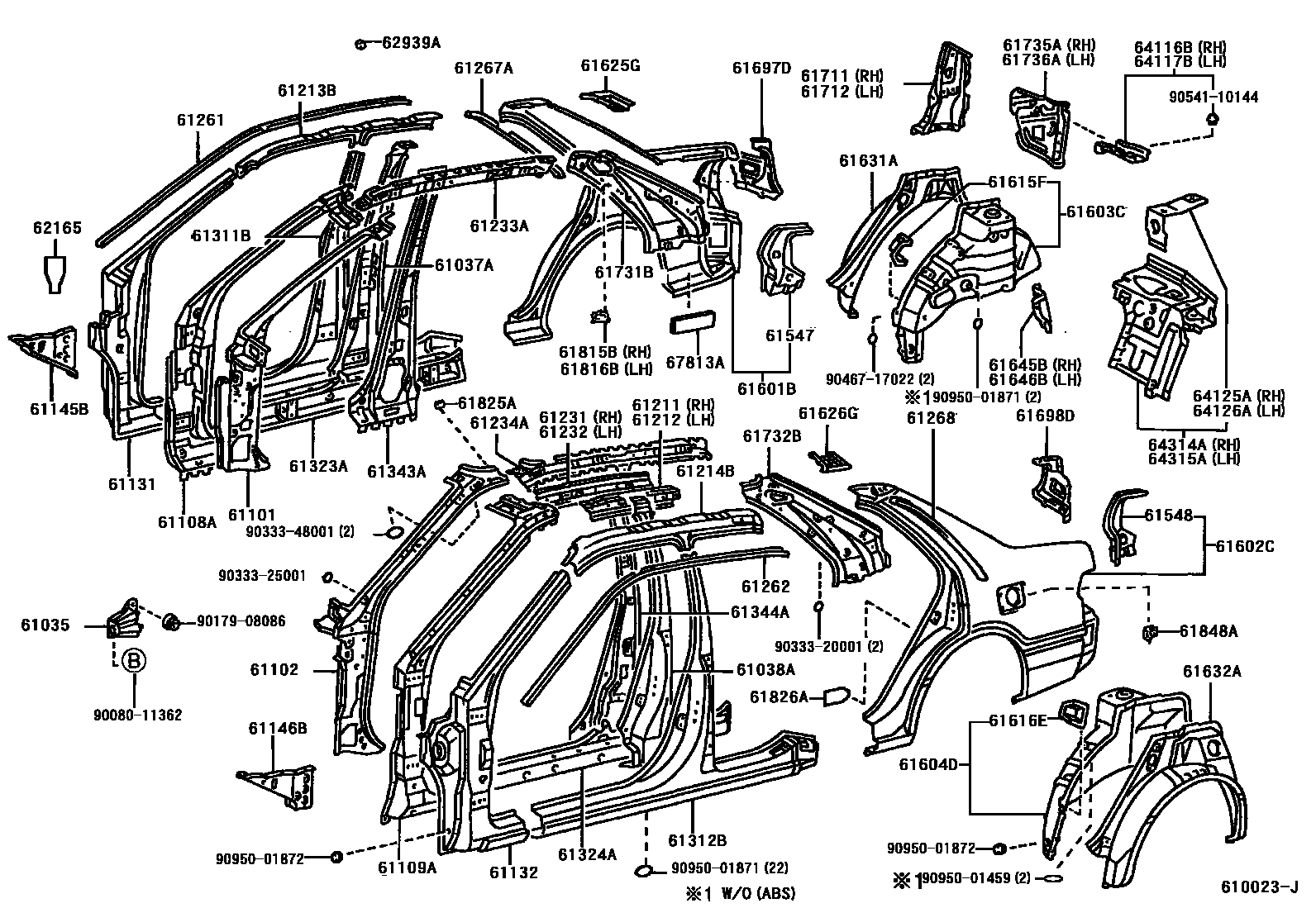

Parts diagram
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
main61165-AA010i199607
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-AA900i199607-199708
sub61037-AA901
main61037-AA902i199708-199804
sub61037-AA903
main61037-AA903i199804
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-AA900i199607-199708
sub61038-AA901
main61038-AA902i199708-199804
sub61038-AA903
main61038-AA903i199804
61101PANEL SUB-ASSY, COWL SIDE, RH
main61101-AA010i199607
61102PANEL SUB-ASSY, COWL SIDE, LH
main61102-AA010i199607
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-AA900i199607-199706
sub61108-AA901
main61108-AA901i199706
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61109-AA900i199607-199706
sub61109-AA901
main61109-AA901i199706
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-AA020i199607
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-AA020i199607
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-AA010i199607
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-AA010i199607
61211RAIL, ROOF SIDE, OUTER RH
main61211-AA020i199607
61212RAIL, ROOF SIDE, OUTER LH
main61212-AA020i199607
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
main61213-AA020i199607
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
main61214-AA010i199607
61231RAIL, ROOF SIDE, INNER RH
main61231-AA020i199607-199805
sub61231-AA021
main61231-AA021i199805
61232RAIL, ROOF SIDE, INNER LH
main61232-AA020i199607-199805
sub61232-AA021
main61232-AA021i199805
61233ARAIL, ROOF SIDE, INNER NO.2 RH
main61233-AA021i199607-199804
sub61233-AA040
main61233-AA040i199804
W(MOON ROOF)
61234ARAIL, ROOF SIDE, INNER NO.2 LH
main61234-33060i199708-199710
(J)
main61234-AA020i199708-199710
(L)
sub61234-AA040
main61234-AA020i199607-199804
sub61234-AA040
main61234-AA040i199804
W(MOON ROOF)
61261CHANNEL, ROOF DRIP, RH
main61261-AA020i199607
61262CHANNEL, ROOF DRIP, LH
main61262-AA020i199607
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61267-AA020i199607
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61268-AA020i199607
61311BPILLAR, CENTER BODY, OUTER RH
main61311-AA010i199607
61312BPILLAR, CENTER BODY, OUTER LH
main61312-AA010i199607
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
main61401-AA900i199607-199808
sub61401-AA901
main61401-AA901i199808
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
main61402-AA900i199607-199808
sub61402-AA901
main61402-AA901i199808
61343APILLAR, CENTER BODY, INNER RH
main61343-AA901i199607-199708
sub61343-AA902
main61343-AA902i199708-199808
sub61343-AA903
sub90167-50057
main61343-AA903i199808
61344APILLAR, CENTER BODY, INNER LH
main61344-AA901i199607-199708
sub61344-AA902
main61344-AA902i199708-199808
sub61344-AA903
sub90167-50057
main61344-AA903i199808
61547REINFORCEMENT, QUARTER PILLAR, INNER RH
main61547-AA010i199607
61548REINFORCEMENT, QUARTER PILLAR, INNER LH
main61548-AA010i199607
61601BPANEL SUB-ASSY, QUARTER, RH
main61601-AA900i199607-199908
W(AUTOMATIC ANTENNA)
main61601-AA901i199607-199908
sub61601-AA903
main61601-AA903i199908
61602CPANEL SUB-ASSY, QUARTER, LH
main61602-AA900i199607-199908
sub61602-AA901
main61602-AA901i199908
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
main61607-AA900i199607-200012
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
main61608-AA900i199607-200012
61615FREINFORCEMENT, QUARTER PANEL, OUTER RH
main61615-33030i199607-199608
(J)
61616EREINFORCEMENT, QUARTER PANEL, OUTER LH
main61616-33030i199607-199608
(J)
61625GEXTENSION, QUARTER PANEL, REAR RH
main61625-AA020i199607-199801
sub61625-AA030
main61625-AA030i199801
61626GEXTENSION, QUARTER PANEL, REAR LH
main61626-AA020i199607-199801
sub61626-AA030
main61626-AA030i199801
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-AA900i199607
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-AA900i199607
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-AA010i199607
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-AA010i199607
61697DHOUSING, QUARTER PANEL END, RH
main61697-AA900i199607-199812
sub61697-AA901
main61697-AA901i199812
61698DHOUSING, QUARTER PANEL END, LH
main61698-AA900i199607-199812
sub61698-AA901
main61698-AA901i199812
61711PANEL, ROOF SIDE, OUTER RH
main61711-AA020i199607
61712PANEL, ROOF SIDE, OUTER LH
main61712-AA020i199607
61731BPANEL, ROOF SIDE, INNER RH
main61731-AA010i199607-199804
sub61731-AA020
sub61625-AA030
main61731-AA020i199804-200008
main61731-AA021i200008
61732BPANEL, ROOF SIDE, INNER LH
main61732-AA010i199607-199804
sub61732-AA020
sub61626-AA030
main61732-AA020i199804-200008
main61732-AA021i200008
61735APANEL, ROOF SIDE, INNER REAR RH
main61071-AA010i199706-199908
sub61071-AA011
main61071-AA011i199908-199912
sub61735-AA011
sub90170-06006
main61735-AA010i199607-199706
sub61071-AA010
main61735-AA011i199912
61736APANEL, ROOF SIDE, INNER REAR LH
main61072-AA010i199706-199908
sub61072-AA011
main61072-AA011i199908-199912
sub61736-AA011
sub90170-06006
main61736-AA010i199607-199706
sub61072-AA010
main61736-AA011i199912
61815BCOVER, ROOF SIDE, INNER UPPER RH
main61815-AA020i199607
61816BCOVER, ROOF SIDE, INNER UPPER LH
main61815-AA020i199607
61825APLATE, NOISE CONTROL, NO.2
main61825-12010i199607
61826APLATE, NOISE CONTROL, NO.3
main61826-AA010i199607
61848ARETAINER, QUARTER PANEL, LH
main61848-AA010i199908
62165SHEET, FRONT BODY PILLAR LOWER, OUTER RH
main62165-AA010i199607
62939ASILENCER, QUARTER VENT
main62939-06010i199607
64116BREINFORCEMENT, UPPER BACK, RH
main64116-AA010i199607
64117BREINFORCEMENT, UPPER BACK, LH
main64117-AA010i199607
64125ABRACKET, UPPER BACK PANEL, RH
main64125-AA010i199607
64126ABRACKET, UPPER BACK PANEL, LH
main64126-AA010i199607
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
main64304-AA900i199607
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
main64305-AA900i199607
67813ASHEET, QUARTER PANEL SILENCER, RH
main67813-AA010i199607
9008011362
main90080-11362
9017908086
main90179-08086
9033320001
main90333-20001
9033325001
main90333-25001
9033348001
main90333-48001
9046717022
main90467-17022
9054110144
main90541-10144
9095001459
main90950-01459
9095001871
main90950-01871
9095001872
main90950-01872

75 parts on this diagram · 1 diagram in section
