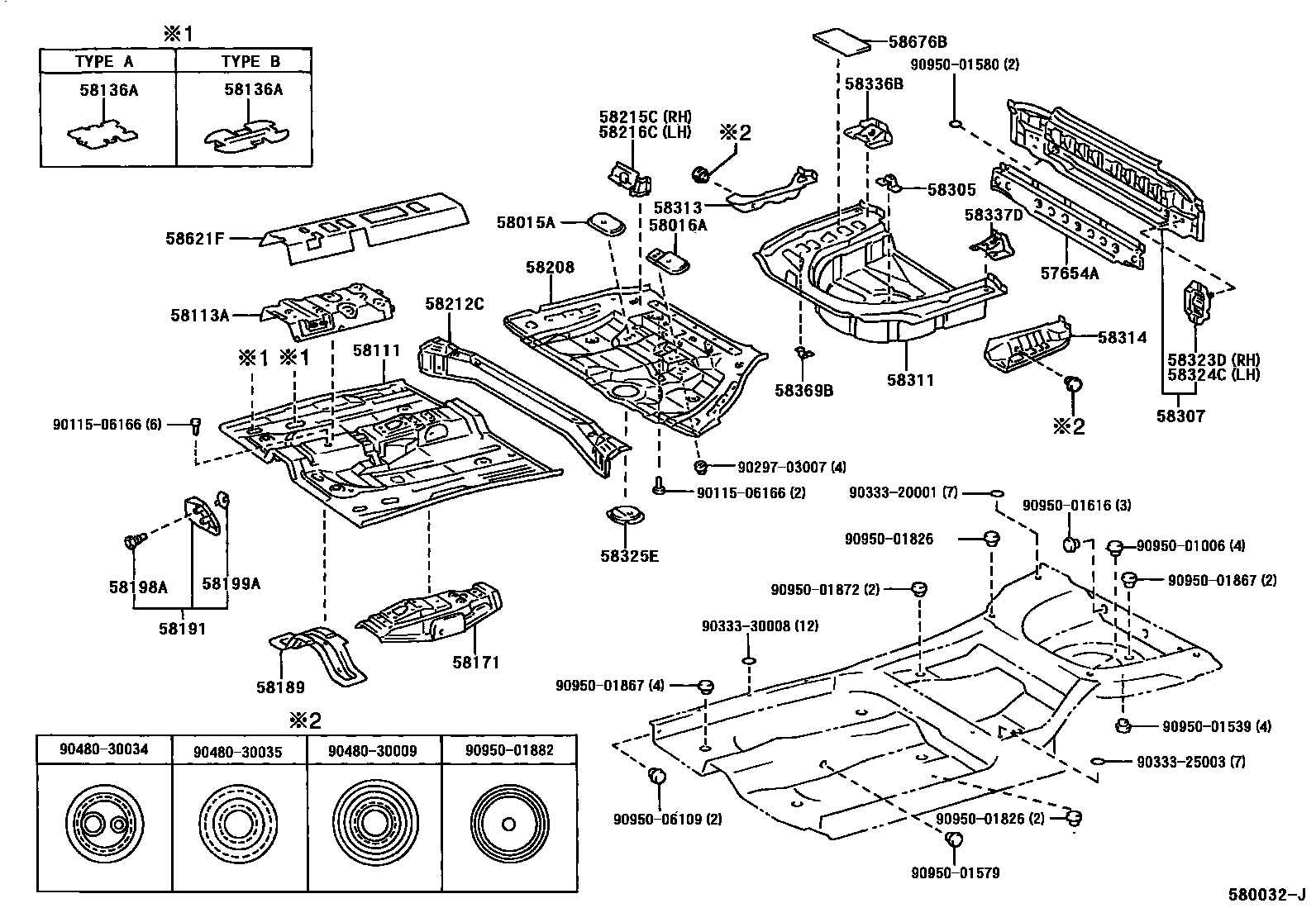

FLOOR PAN & LOWER BACK PANEL

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57654-06010iMCV20,SXV20..NAP199607

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-06010iMCV20,SXV20..NAP199607

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-06010iMCV20,SXV20..NAP199607

58111PAN, FRONT FLOOR

main58111-06020iMCV20,SXV20..NAP199607-199810

sub58111-06021

main58111-06021iMCV20,SXV20..NAP199810

58113APANEL, FRONT FLOOR, CENTER

main58013-06010iMCV20,SXV20..NAP199607

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iMCV20,SXV20..NAP199607

TYPE A:REFER TO ILLUSTRATION

main58136-33010iMCV20,SXV20..NAP199607

TYPE B:REFER TO ILLUSTRATION

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-06010iMCV20,SXV20..NAP199607

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06010iMCV20,SXV20..NAP199607

58191FOOTREST, FRONT FLOOR

main58192-06020iMCV20,SXV20..NAP199607

58198ACLIP, FOOTREST, NO.1

main58198-06010iMCV20,SXV20..NAP199607

58199ACLIP, FOOTREST, NO.2

main58199-06010iMCV20,SXV20..NAP199607

58208PAN, CENTER FLOOR

main58211-06060iMCV20,SXV20..NAP199607-199708

sub58211-06070

main58211-06070iMCV20,SXV20..NAP199708-199908

sub58211-06071

main58211-06071iMCV20,SXV20..NAP199908

sub58211-06072

58212CPAN, CENTER FLOOR, FRONT

main58212-06010iMCV20,SXV20..NAP199607

sub58212-06011

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-06010iMCV20,SXV20..NAP199607

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-06010iMCV20,SXV20..NAP199607

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iMCV20,SXV20..NAP199607

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-AA010iMCV20,SXV20..NAP199607

58311PAN, REAR FLOOR

main58311-06040iMCV20,SXV20..NAP199607

58313PANEL, REAR FLOOR SIDE, RH

main58305-06030iMCV20,SXV20..NAP199607

58314PANEL, REAR FLOOR SIDE, LH

main58314-06030iMCV20,SXV20..NAP199607

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-AA010iMCV20,SXV20..NAP199607

58324CREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-AA010iMCV20,SXV20..NAP199607

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06020iMCV20,SXV20..NAP199607

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-33010iMCV20,SXV20..NAP199607

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-33020iMCV20,SXV20..NAP199607

58369BBRACKET, FUEL TUBE, NO.3

main58369-06010iMCV20,SXV20..NAP199607

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-06010iMCV20,SXV20..NAP199708-199908

(L)

main58621-06010iSXV20..NAP;MCV20..NAP..ATM..(CE,LE);MCV20..NAP..(CE,XLE)..USA199607-199908

main58621-33030iMCV20..NAP..MTM..LE;MCV20..NAP..XLE..CND199708-199908

(J)

58676BPAD, REAR FLOOR SILENCER, NO.1 RH

main58676-33010iMCV20,SXV20..NAP199607

9011506166

main90115-06166

9029703007

main90297-03007

9033320001

main90333-20001

9033325003

main90333-25003

9033330008

main90333-30008

9048030009

main90480-30009

9048030034

main90480-30034

9048030035

main90480-30035

9095001006

main90950-01006

9095001539

main90950-01539

9095001579

main90950-01579

9095001580

main90950-01580

9095001616

main90950-01616

9095001826

main90950-01826

9095001867

main90950-01867

9095001872

main90950-01872

9095001882

main90950-01882

9095006109

main90950-06109

46 parts on this diagram · 1 diagram in section
