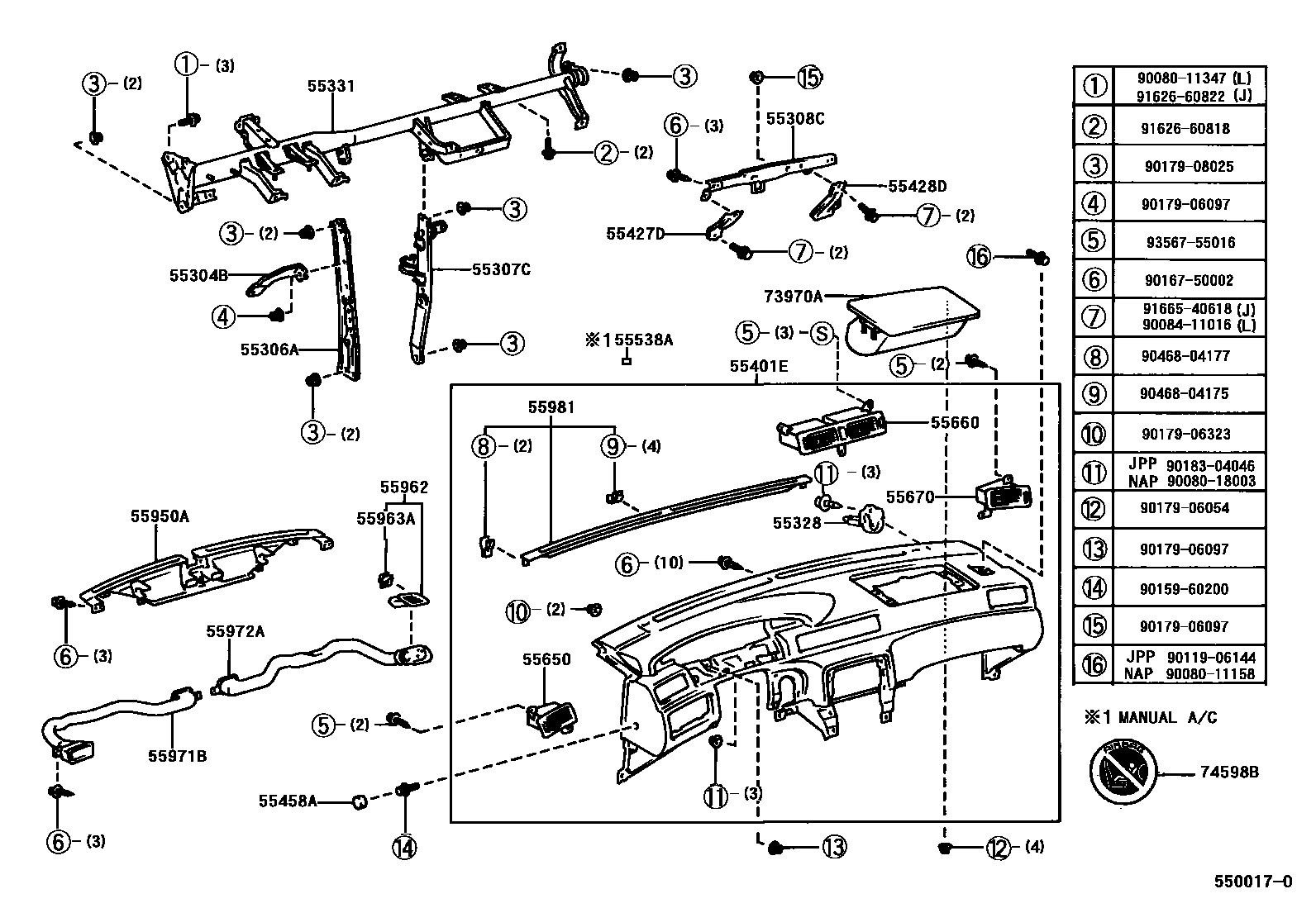

INSTRUMENT PANEL & GLOVE COMPARTMENT
55304BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
(J)
(L)
55328PIN, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK. SAGE,TRIM6#
W(DAY TIME RUNNING LIGHT SYSTEM & LIGHT CONTROL SYSTEM),BLUISH GRAY,TRIM1#
W(DAY TIME RUNNING LIGHT SYSTEM & LIGHT CONTROL SYSTEM),OAK,TRIM4#
W(DAY TIME RUNNING LIGHT SYSTEM & LIGHT CONTROL SYSTEM),DK.SAGE,TRIM6#
W(LIGHT CONTROL SYSTEM),BLUISH GRAY,TRIM1#
W(LIGHT CONTROL SYSTEM),OAK,TRIM4#
W(LIGHT CONTROL SYSTEM),DK.SAGE,TRIM6#
TAIWAN SPEC,BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
TAIWAN SPEC,OAK,TRIM4#
DK.SAGE,TRIM6#
TAIWAN SPEC,DK.SAGE,TRIM6#
55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1
55428DRETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2
55458ACAP, INSTRUMENT PANEL SAFETY PAD
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
55538ACOVER, COOLER SWITCH HOLE
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55950ANOZZLE ASSY, DEFROSTER
55962NOZZLE, SIDE DEFROSTER, NO.2
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
55963ARETAINER, SIDE DEFROSTER
(J)
(L)
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
W(DAY TIME RUNNING LIGHT SYSTEM)
TAIWAN SPEC
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
74598BLABEL, PASSENGER AIRBAG CAUTION
main74598-20010iMCV20..NAP..CND;MCV20..NAP..XLE;SXV20..NAP..CE..CND;SXV20..NAP..(LE,XLE)199607-199708
9008011158
main90080-11158
9008011347
main90080-11347
9008018003
main90080-18003
9008411016
main90084-11016
9011906144
main90119-06144
9015960200
main90159-60200
9016750002
main90167-50002
9017906054
main90179-06054
9017906097
main90179-06097
9017906323
main90179-06323
9017908025
main90179-08025
9018304046
main90183-04046
9046804175
main90468-04175
9046804177
main90468-04177
9162660818
main91626-60818
9162660822
main91626-60822
9166540618
main91665-40618
9356755016
main93567-55016
40 parts on this diagram · 2 diagrams in section
