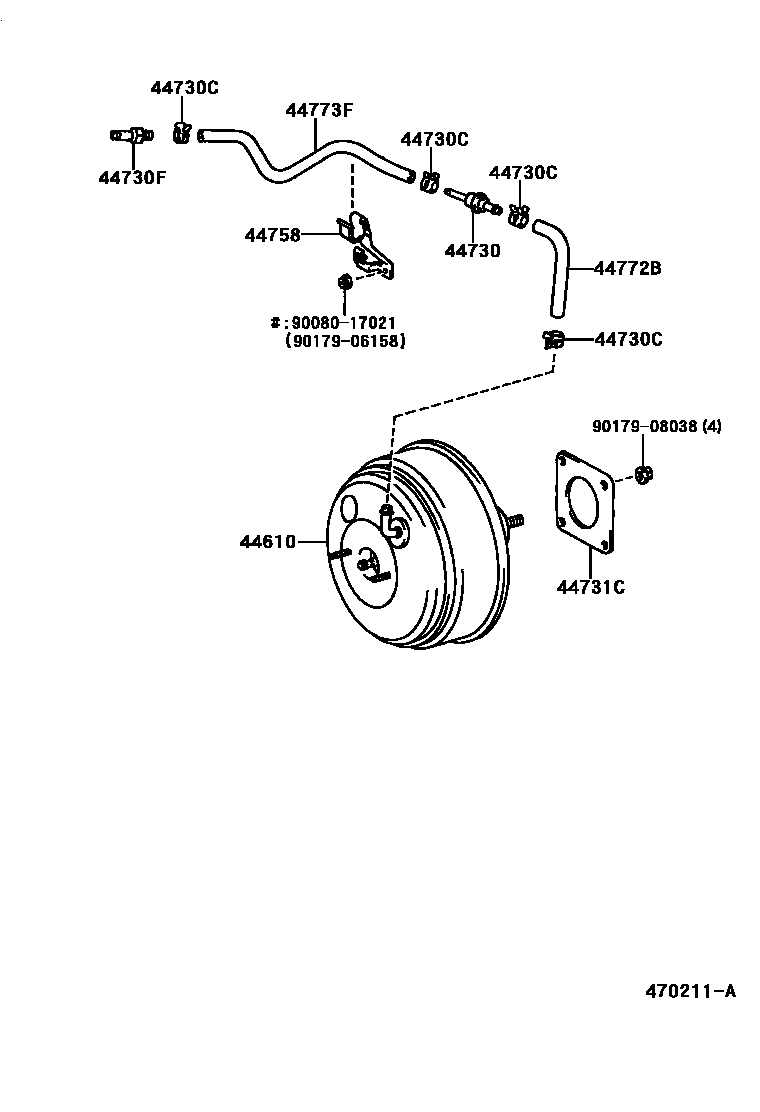

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-06130iMCV20,SXV20..NAP199607-199908

main44610-06140iSXV20..NAP..LE..USA;SXV20..NAP..(CE,XLE)199806-200008

sub44610-06190

main44610-06150iMCV20..NAP..ATM..(LE,XLE)199607-199908

W(TRACTION CONTROL)

main44610-06170iMCV20..NAP..ATM199908-200008

W(TRACTION CONTROL),(L)

sub44610-06200

main44610-06180iMCV20..NAP199908-200008

main44610-06190iMCV20,SXV20..NAP200008-200107

(L)

main44610-06200iMCV20..NAP..ATM200008-200107

W(TRACTION CONTROL),(L)

main44610-33580iMCV20..NAP..ATM200006-200008

W(TRACTION CONTROL),(J)

sub44610-06170

main44610-33590iMCV20..NAP200006-200008

(J)

sub44610-06180

main44610-33600iMCV20,SXV20..NAP200008-200107

(J)

sub44610-06190

main44610-33610iMCV20..NAP..ATM200008-200107

W(TRACTION CONTROL),(J)

sub44610-06200

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV20,SXV20..NAP199607

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iMCV20,SXV20..NAP199607

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51076iMCV20..NAP199702

main90404-51319iMCV20,SXV20..NAP199607-199702

44731CBRACKET, BRAKE BOOSTER

main44731-33010iMCV20,SXV20..NAP199607

44758BRACKET, VACUUM CHECK VALVE

main44758-33020iMCV20..NAP199607

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06020iSXV20..NAP199607

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06010iMCV20..NAP199607

main44772-07010iSXV20..NAP199607

44773FHOSE, UNION TO CHECK VALVE

main44773-06020iMCV20..NAP199607

main44774-06010iSXV20..NAP199607

9008017021

main90080-17021

9017906158

main90179-06158

9017908038

main90179-08038

12 parts on this diagram · 2 diagrams in section
