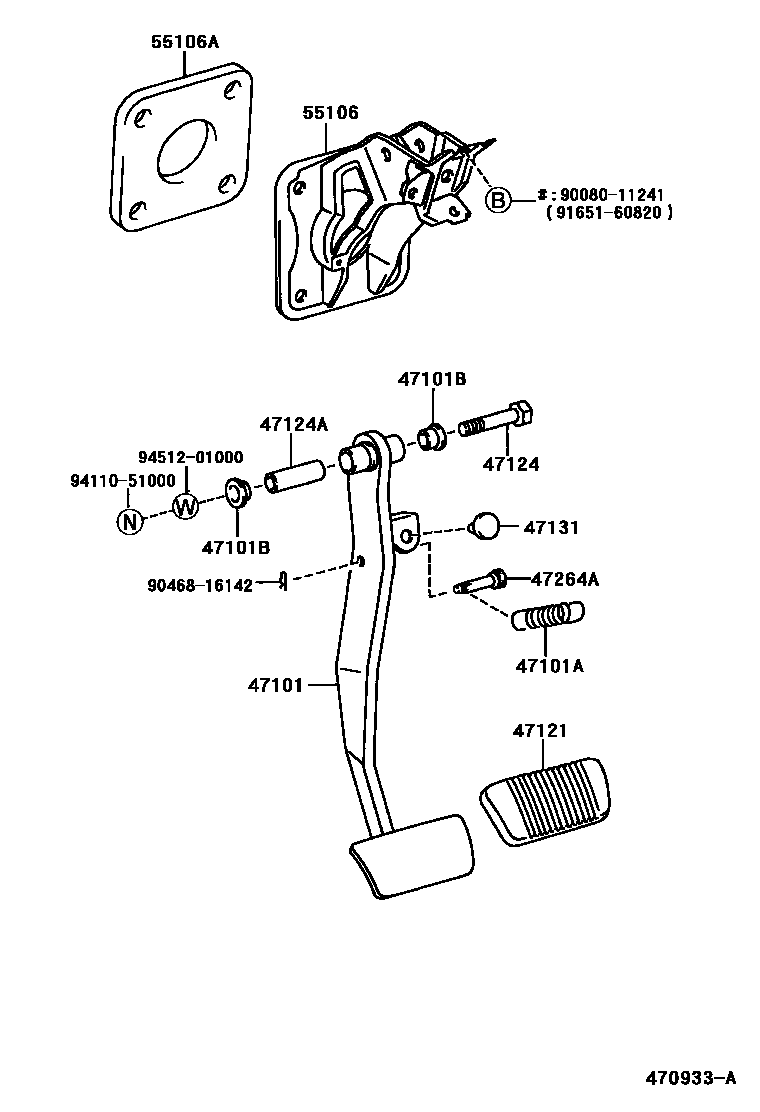

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-06010iMCV20,SXV20..NAP..MTM199607

main47101-06020iMCV20,SXV20..NAP..ATM199607

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iMCV20,SXV20..NAP199607

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCV20,SXV20..NAP199607

47121PAD, BRAKE PEDAL

main31321-14020iMCV20,SXV20..NAP..MTM199607

main47121-AC010iMCV20,SXV20..NAP..ATM199607

sub47121-14010

47124SHAFT, BRAKE PEDAL

main90080-10100iMCV20,SXV20..NAP199908

(L)

main90101-10039iMCV20,SXV20..NAP199607-199908

main90101-10039iMCV20,SXV20..NAP199908

(J)

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCV20,SXV20..NAP199607

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCV20,SXV20..NAP199607

47264APIN(FOR PUSH ROD)

main47148-12050iSXV20..NAP;MCV20..NAP..(CE,LE);MCV20..NAP..XLE..USA199607-199709

main47148-33010iMCV20..NAP..XLE..CND199708-199709

sub47148-33011

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-06020iMCV20,SXV20..NAP199607-199611

main55106-06020iMCV20,SXV20..NAP199611

(L)

main55106-33030iMCV20,SXV20..NAP199611

(J)

55106ASEAL, DASH PANEL

main55259-20010iMCV20,SXV20..NAP199607

9008011241

main90080-11241

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
