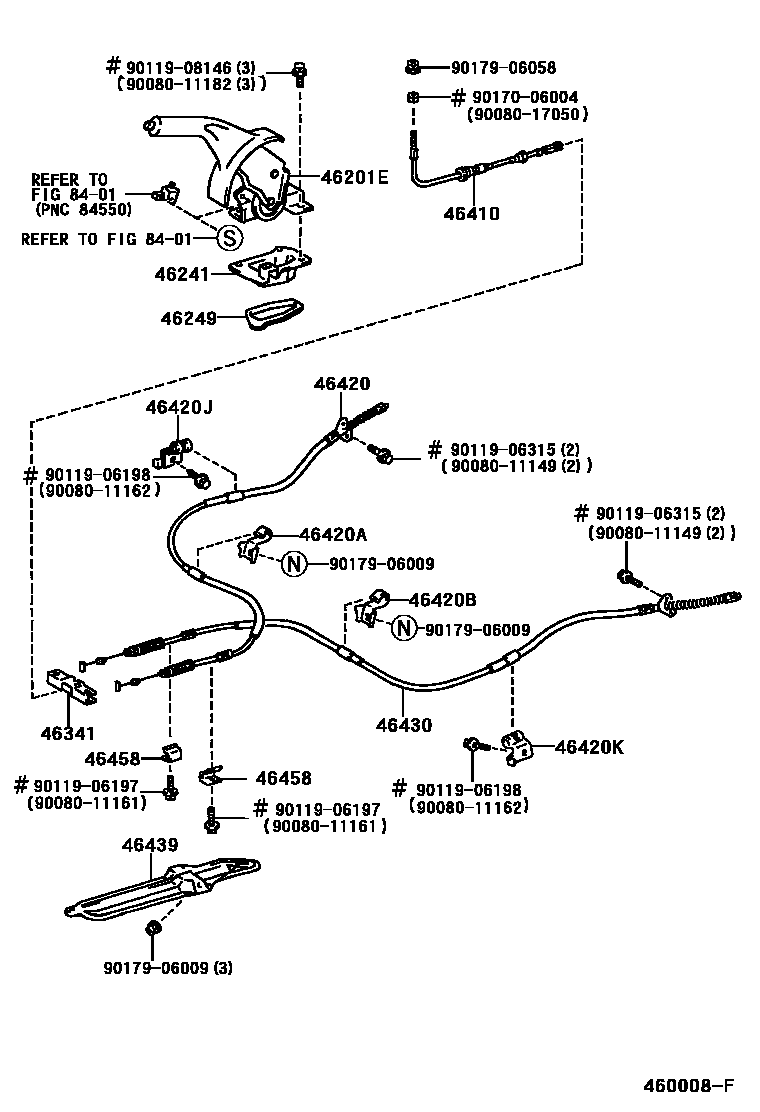

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-06050-B0iSXV20..NAP199607

BLUISH GRAY,TRIM1#

main46201-06050-E0iSXV20..NAP199607

OAK,TRIM4#

main46201-06050-G0iSXV20..NAP199607

DK.SAGE,TRIM6#

main46201-06060-B0iMCV20..NAP199607

BLUISH GRAY,TRIM1#

main46201-06060-E0iMCV20..NAP199607

OAK,TRIM4#

main46201-06060-G0iMCV20..NAP199607

DK.SAGE,TRIM6#

46241BOOT, PARKING BRAKE LEVER

main46241-06020iMCV20,SXV20..NAP199607

46249SHIELD, PARKING BRAKE HOLE

main46249-06020iMCV20,SXV20..NAP199607

46341EQUALIZER, PARKING BRAKE

main46341-AA010iSXV20..NAP;MCV20..NAP..ATM;MCV20..NAP..CE..USA199607-199908

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06020iMCV20,SXV20..NAP199607

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06030iSXV20..NAP199607

main46420-33050iMCV20..NAP199607

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01663iMCV20,SXV20..NAP199607

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01664iMCV20,SXV20..NAP199607-199709

main90949-01B08iMCV20,SXV20..NAP199709

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01A66iMCV20,SXV20..NAP199607

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01A67iMCV20,SXV20..NAP199607

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06030iSXV20..NAP199607

main46430-33050iMCV20..NAP199607

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-06010iMCV20,SXV20..NAP199607

46458RETAINER, CABLE

main46458-28010×2iMCV20,SXV20..NAP199607-199709

main46458-AC010×2iMCV20,SXV20..NAP199709

8401

9008011149

main90080-11149

9008011161

main90080-11161

9008011162

main90080-11162

9008011182

main90080-11182

9008017050

main90080-17050

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908146

main90119-08146

9017006004

main90170-06004

9017906009

main90179-06009

9017906058

main90179-06058

26 parts on this diagram · 2 diagrams in section
