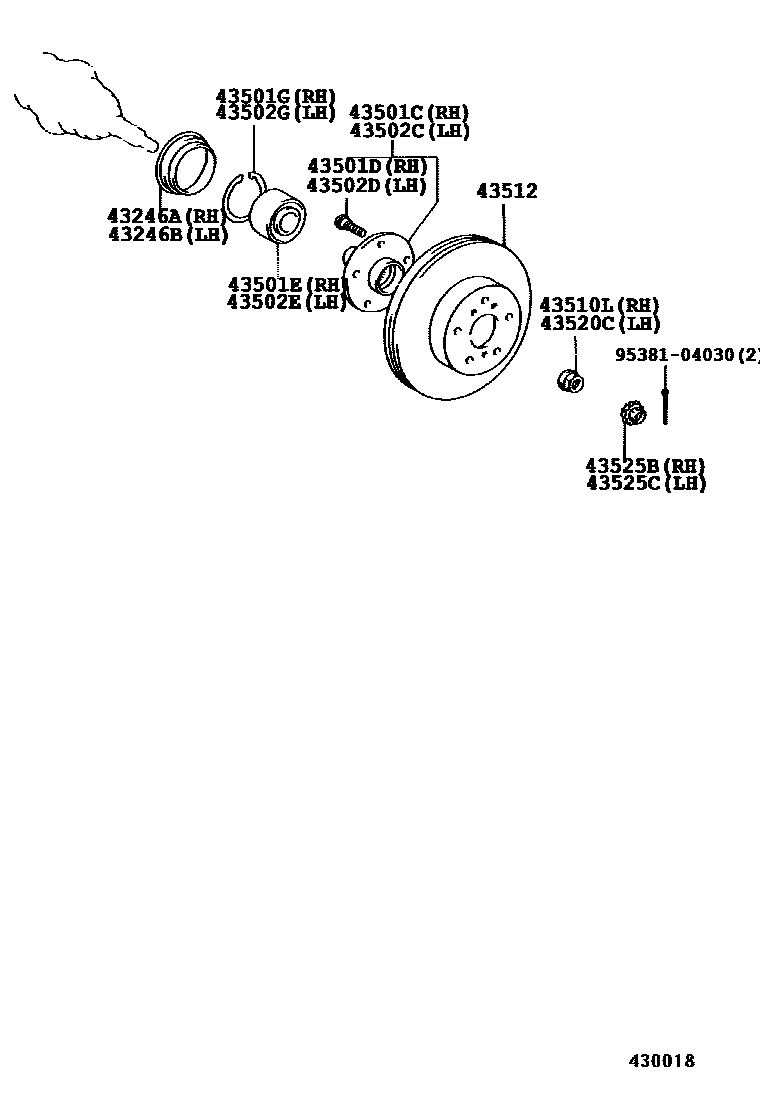

FRONT AXLE HUB
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
(J)
(J)
W(ABS),(J)
(L)
W(ABS)
(L)
W(ABS),(L)
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
(J)
(J)
W(ABS),(J)
(L)
W(ABS),(L)
W(ABS)
(L)
43501CHUB SUB-ASSY, FRONT AXLE, RH
(L)
(L)
(J)
(J)
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501EBEARING (FOR FRONT AXLE HUB RH)
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
(L)
(L)
(J)
(J)
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502EBEARING (FOR FRONT AXLE HUB LH)
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43510LNUT (FOR STEERING KNUCKLE RH)
W(ABS)
43520CNUT (FOR STEERING KNUCKLE LH)
W(ABS)
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9538104030
main95381-04030
16 parts on this diagram · 1 diagram in section
