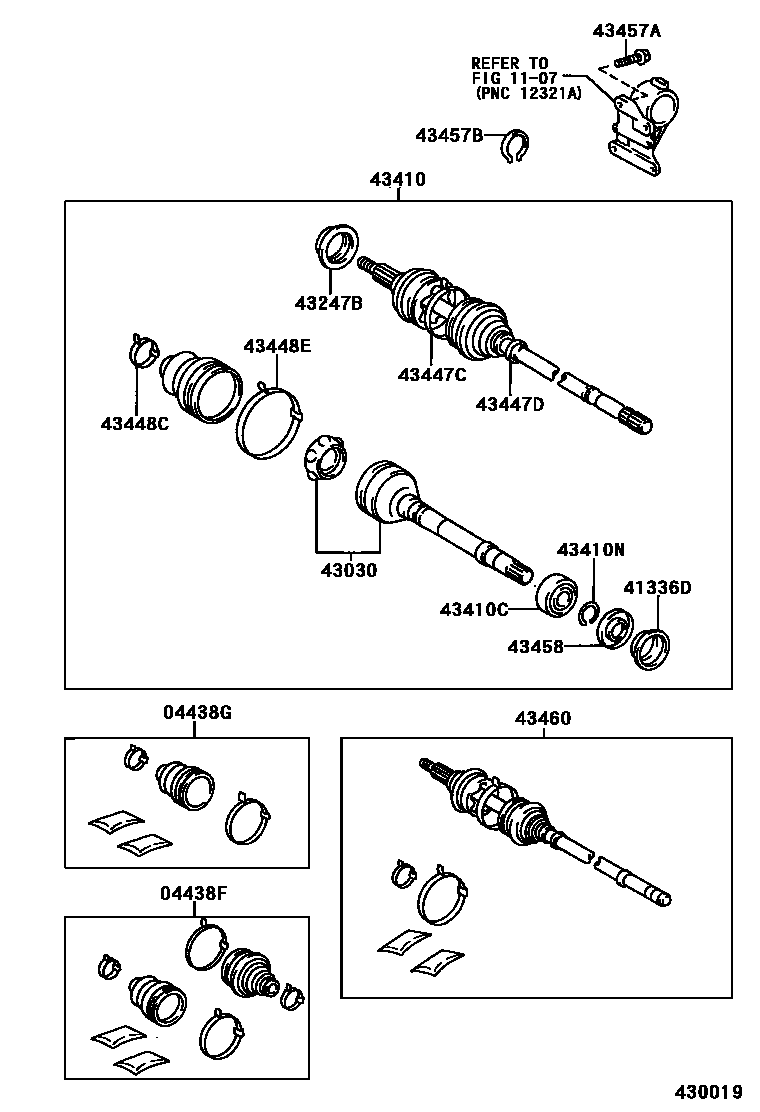

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
1107
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
W(ABS)
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION,W(ABS)
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=86.4,TYPE A:REFER TO ILLUSTRATION
ID=90.9
TYPE B:REFER TO ILLUSTRATION
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=27.3,TYPE A:REFER TO ILLUSTRATION
ID=29.3
TYPE B:REFER TO ILLUSTRATION
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION,W(ABS)
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION,W(ABS)
17 parts on this diagram · 6 diagrams in section
