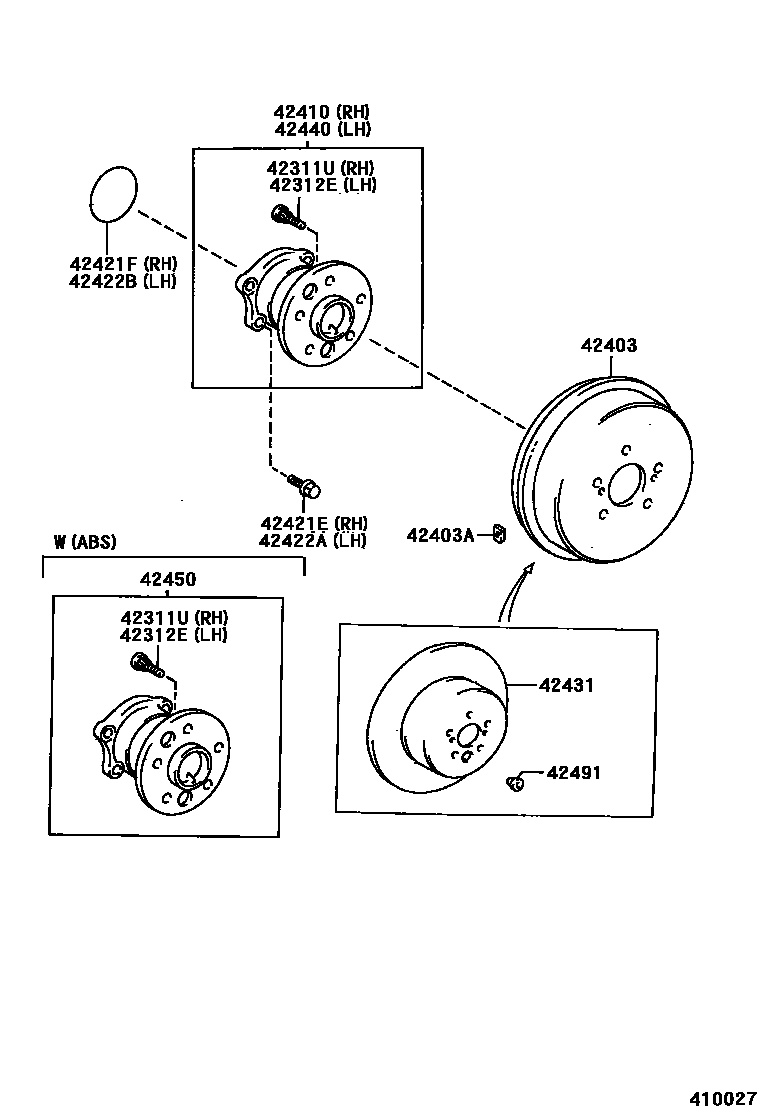

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iMCV20,SXV20..NAP199607

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iMCV20,SXV20..NAP199607

42403DRUM SUB-ASSY, REAR BRAKE

main42431-06010iSXV20..NAP199607

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90080-93004iSXV20..NAP199607

10G

main90080-93005iSXV20..NAP199607

20G

main90080-93006iSXV20..NAP199607

30G

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-06020iSXV20..NAP..CE199607-199908

sub42410-07010

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iMCV20,SXV20..NAP199607

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iMCV20,SXV20..NAP199607

sub90301-63006

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iMCV20,SXV20..NAP199607

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iMCV20,SXV20..NAP199607

sub90301-63006

42431DISC, REAR

main42431-06020iMCV20..NAP199607

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-06020iSXV20..NAP..CE199607-199908

sub42410-07010

42450HUB & BEARING ASSY, REAR AXLE

main42450-06010iMCV20,SXV20..NAP199607-199908

sub42450-07010

main42450-07010iMCV20,SXV20..NAP199908

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010iSXV20..NAP199607

main47491-22020iMCV20..NAP199607

13 parts on this diagram · 1 diagram in section
