CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

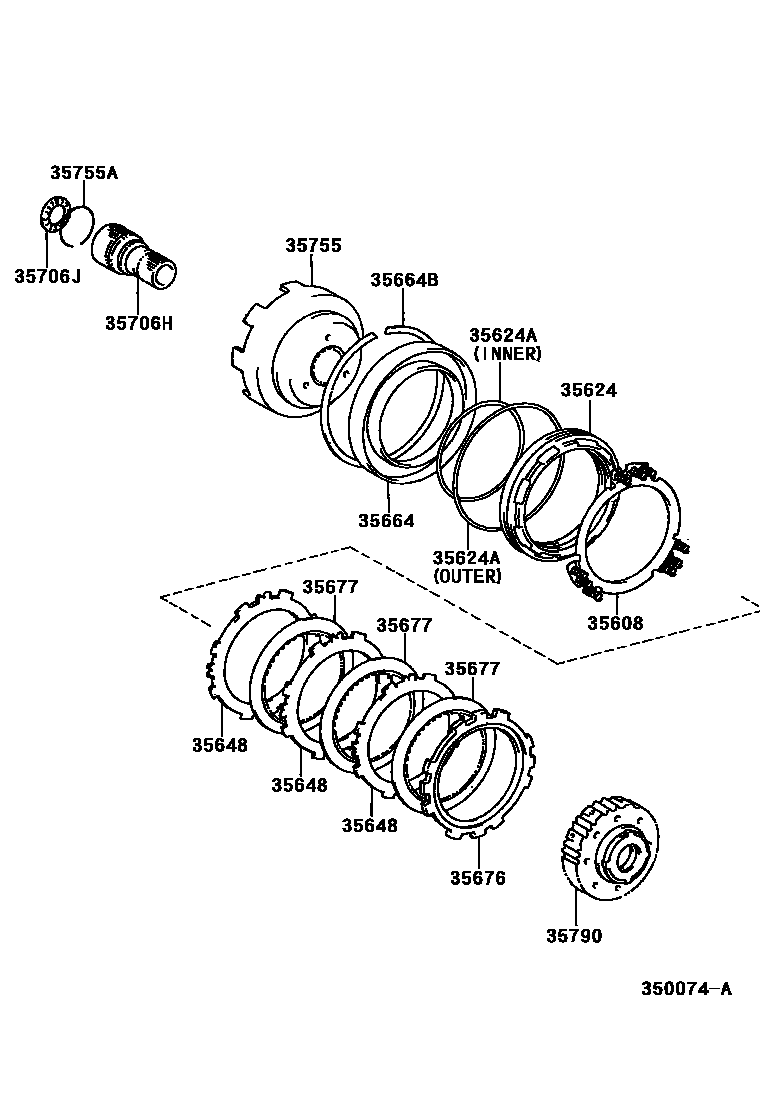

Parts diagram
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
main35608-32010i199607-200107
main35608-33010i199607-200107
35624PISTON, 2ND BRAKE
main35624-32010i199607-200107
main35624-33010i199607-200107
35624ARING, O (FOR 2ND BRAKE PISTON)
main90301-99021i199607-200107
INNER
main90301-99023i199607-200107
OUTER
35648PLATE, CLUTCH (FOR 2ND BRAKE)
main35648-32010i199607-200107
T=1.8
main35648-33010i199607-200107
T=1.8
35664CYLINDER, 2ND BRAKE
main35664-32010i199607-200107
35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
main90521-99013i199607-200107
35676FLANGE, BRAKE (FOR 2ND BRAKE)
main35676-12030i199812-200107
T=3.5
main35676-32010i199607-199812
T=3.5
sub35676-12030
main35676-33010i199607-200107
T=3.6
35677DISC, CLUTCH (FOR 2ND BRAKE)
main35677-32050i199607-200012
main35677-32051i200012-200107
main35677-33050i199607-200107
35706HGEAR SUB-ASSY, PLANETARY SUN
main35706-12010i199607-200107
main35706-33011i199607-199707
sub35706-33012
main35706-33012i199707-200107
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
main90374-30006i199607-200107
main90374-30008i199607-199609
sub90374-30014
main90374-30014i199609-200107
35755DRUM, SUN GEAR INPUT
main35755-32020i199607-200107
main35755-33010i199607-200107
35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
main90520-36017i199607-200107
T=1.4,ID=36
main90520-44002i199607-200107
T=1.2,ID=44.0
main90520-47003i199607-200107
T=2.3,ID=47.1
35790CLUTCH ASSY, 1 WAY
main35790-32050i199607-200107
main35790-33010i199607-200107

13 parts on this diagram · 2 diagrams in section
