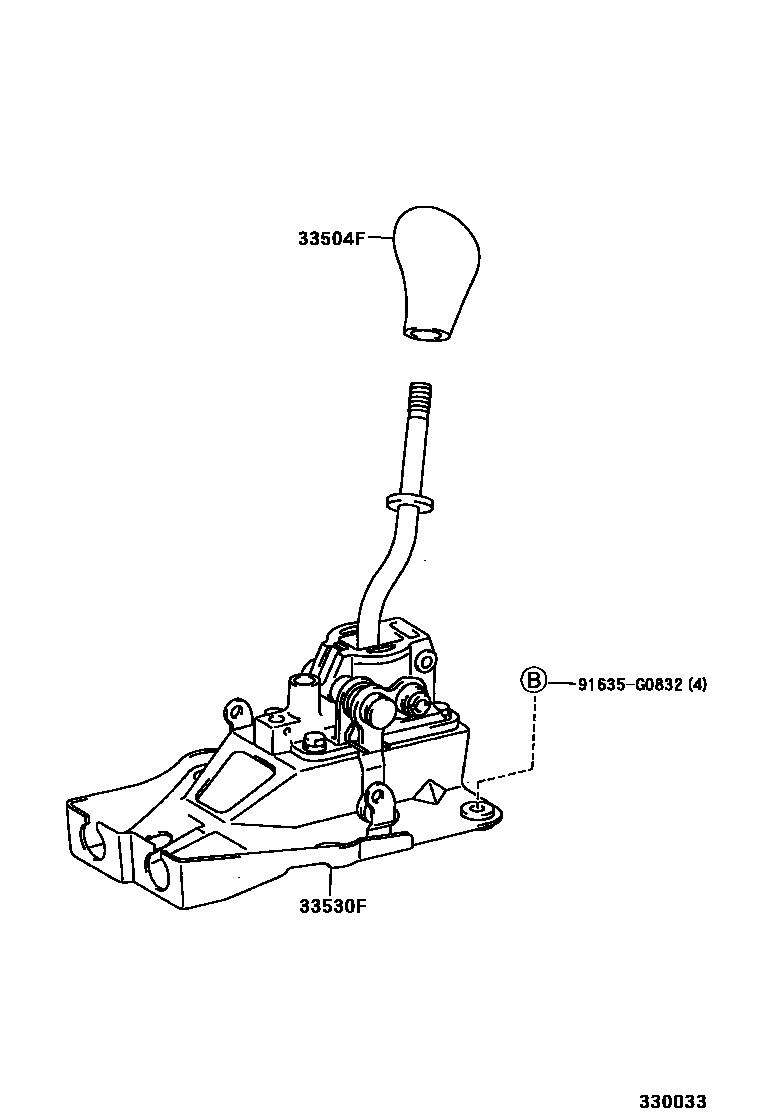

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B1iMCV20,SXV20..NAP..MTM199607

GRAY,TRIM1#

sub33504-12180

main33504-12180-E3iMCV20,SXV20..NAP..MTM199607

OAK,TRIM4#

sub33504-12180

main33504-12180-G3iMCV20,SXV20..NAP..MTM199607

DK.SAGE,TRIM6#

sub33504-12180

main33504-12200-B2iMCV20..NAP..MTM199908

BLUISH GRAY,TRIM1#

sub33504-12200

sub33504-22140

main33504-12200-E3iMCV20..NAP..MTM199908

LEATHER,OAK,TRIM4#

sub33504-12200

sub33504-22140

main33542-06010-B1iMCV20,SXV20..NAP..ATM199607

URETHANE,BLUISH GRAY,TRIM1#

main33542-06010-E0iMCV20,SXV20..NAP..ATM199607

URETHANE,OAK,TRIM4#

main33542-06010-G0iMCV20,SXV20..NAP..ATM199607

URETHANE,DK.SAGE,TRIM6#

main33542-06020-B0iMCV20,SXV20..NAP..ATM..(LE,XLE)199607

LEATHER,BLUISH GRAY,TRIM1#

main33542-06020-E0iMCV20,SXV20..NAP..ATM..(LE,XLE)199607

LEATHER,OAK,TRIM4#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-33070iSXV20..NAP..MTM199607-199905

sub33530-33071

main33530-33071iSXV20..NAP..MTM199905

main33530-33080iMCV20..NAP..MTM199607-199905

sub33530-33081

main33530-33081iMCV20..NAP..MTM199905

91635G0832

main91635-G0832

3 parts on this diagram · 5 diagrams in section
