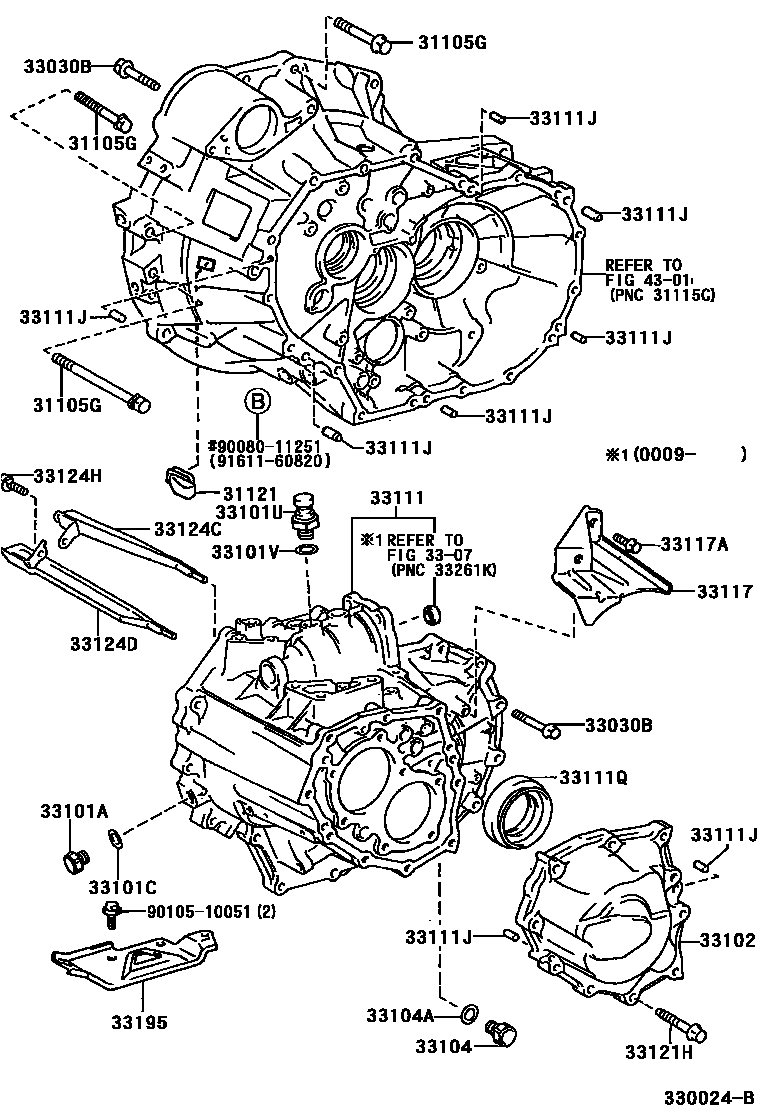

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1E153 0002 1S51

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90080-10083iSXV20..NAP..MTM199803

*8-1.25PX18-15,(L)

main90080-10133iMCV20..NAP..MTM199908

*12-1.25PX74.5-25

main90080-11310iSXV20..NAP..MTM199912

*12-1.25PX55-30,(L)

main90080-11417iMCV20..NAP..MTM199908

*12-1.25PX60-30

main90080-11424iMCV20..NAP..MTM199912

*12-1.25PX65-30,(L)

main90105-08040iSXV20..NAP..MTM199803

*8-1.25PX18-15,(J)

sub91641-H0820

main90105-08040iSXV20..NAP..MTM199607-199803

*8-1.25PX18-15

sub91641-H0820

main90105-12147iMCV20..NAP..MTM199607-199908

*12-1.25PX74.5-25

main90119-12168iSXV20..NAP..MTM199908

*12-1.25PX55-30,(J)

main90119-12168iSXV20..NAP..MTM199607-199908

*12-1.25PX55-30

main90119-12252iMCV20..NAP..MTM199607-199908

*12-1.25PX60-30

main91619-61265iMCV20..NAP..MTM199607-199908

*12-1.25PX65-30

main91619-61265iMCV20..NAP..MTM199908

*12-1.25PX65-30,(J)

main92412-H1055iMCV20..NAP..MTM199607

*10-1.25PX55-30

31121COVER, CLUTCH HOUSING, NO.1

main31121-20010iMCV20..NAP..MTM199607-200107

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iSXV20..NAP..MTM199607-200107

*8-1.25PX45-27.5

sub90105-08430

main90105-08126iMCV20..NAP..MTM199607-200107

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iSXV20..NAP..MTM199607-200107

main90341-18033iMCV20..NAP..MTM199607-200107

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iMCV20,SXV20..NAP..MTM199607-200107

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03111iMCV20..NAP..CE..USA199607-199608

sub90930-03148

main90930-03133iSXV20..NAP..MTM199607-200107

main90930-03148iMCV20..NAP..MTM199608-200107

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iMCV20..NAP..MTM199607-200107

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-33010iMCV20..NAP..MTM199607-200107

sub33102-33011

main33102-33020iSXV20..NAP..MTM199607-200107

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iMCV20,SXV20..NAP..MTM199607-200107

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iMCV20,SXV20..NAP..MTM199607-200107

33111CASE, MANUAL TRANSMISSION

main33101-20050iMCV20..NAP..MTM199607-199911

sub33101-20051

sub90384-15002

main33101-20051iMCV20..NAP..MTM199911-200009

sub33101-20052

main33101-20052iMCV20..NAP..MTM200009-200107

sub33101-20053

sub33250-28010

sub33290-33020

main33111-32030iSXV20..NAP..MTM199704-200107

main33111-33031iSXV20..NAP..MTM199607-199704

sub33111-32030

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iMCV20,SXV20..NAP..MTM199607-200107

L=23,OD=8

main90250-12005iMCV20..NAP..MTM199607-200107

L=24,OD=12

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-50010iMCV20..NAP..MTM199607-199912

sub90311-50027

main90311-50027iMCV20..NAP..MTM199912-200107

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iMCV20..NAP..MTM199607

main33117-32011iSXV20..NAP..MTM199607

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90080-10083iMCV20,SXV20..NAP..MTM199803

(L)

main90105-08040iMCV20,SXV20..NAP..MTM199607-199803

sub91641-H0820

main90105-08040iMCV20,SXV20..NAP..MTM199803

(J)

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iSXV20..NAP..MTM199607-200107

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20020iMCV20..NAP..MTM199607-200107

main33124-33010iSXV20..NAP..MTM199607-200107

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-20030iMCV20..NAP..MTM199607-200107

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iMCV20..NAP..MTM199607-200107

sub90119-08830

main91651-60618iSXV20..NAP..MTM199607-200107

33195HANGER, TRANSMISSION CASE, NO.1

main33195-33010iSXV20..NAP..MTM199607-200107

main33195-33020iMCV20..NAP..MTM199607-200107

4301

9008011251

main90080-11251

9010510051

main90105-10051

9161160820

main91611-60820

25 parts on this diagram · 2 diagrams in section
