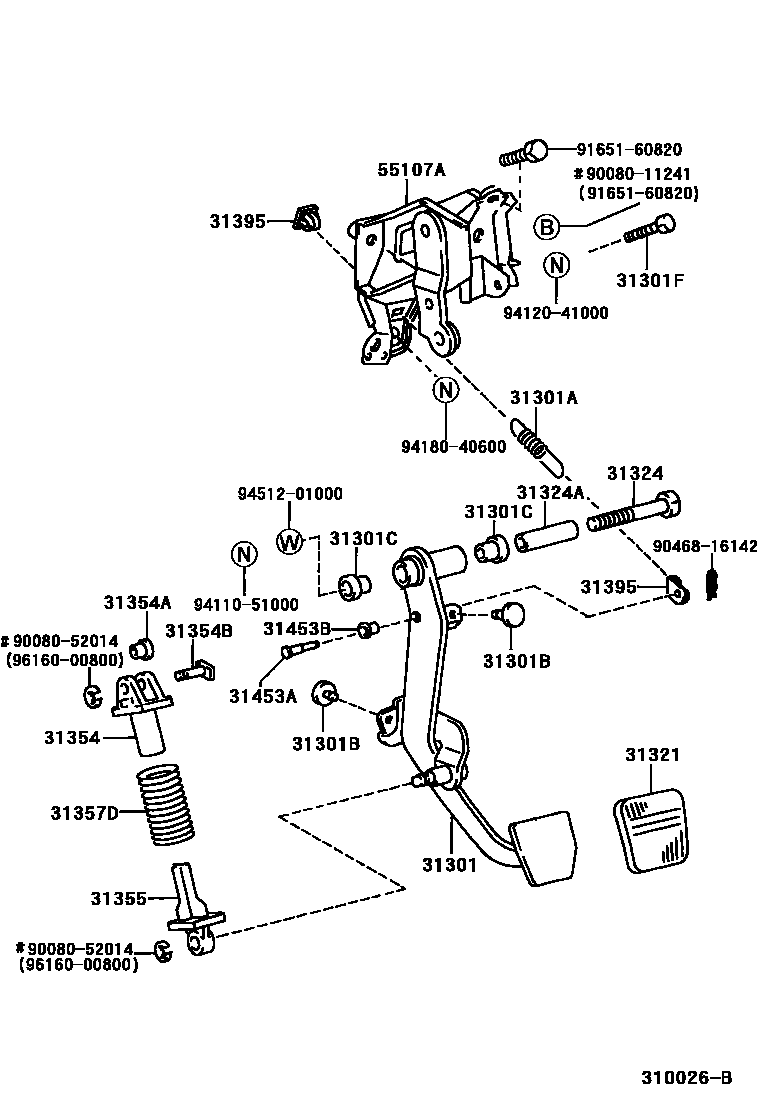

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33010iMCV20,SXV20..NAP..MTM199607

31301ASPRING(FOR CLUTCH PEDAL)

main90507-18027iMCV20..NAP..MTM199607

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iMCV20,SXV20..NAP..MTM199607

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMCV20,SXV20..NAP..MTM199607

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iMCV20,SXV20..NAP..MTM..CE199607

31321PAD, CLUTCH PEDAL

main31321-14020iMCV20,SXV20..NAP..MTM199607

31324SHAFT, CLUTCH PEDAL

main90101-10273iMCV20,SXV20..NAP..MTM199607

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMCV20,SXV20..NAP..MTM199607

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-33010iMCV20,SXV20..NAP..MTM199607

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iMCV20,SXV20..NAP..MTM199607

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iMCV20,SXV20..NAP..MTM199607

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20030iMCV20,SXV20..NAP..MTM199607

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-35018iSXV20..NAP..MTM199607

main90501-40029iMCV20..NAP..MTM199607

31395HOOK, PEDAL SPRING

main31395-33010iMCV20..NAP..MTM199607

PEDAL SIDE

main31395-33020iMCV20..NAP..MTM199607

SUPPORT SIDE

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iMCV20,SXV20..NAP..MTM199607

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iMCV20,SXV20..NAP..MTM199607

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33010iMCV20,SXV20..NAP..MTM199607

9008011241

main90080-11241

9008052014

main90080-52014

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9412041000

main94120-41000

9418040600

main94180-40600

9451201000

main94512-01000

9616000800

main96160-00800

26 parts on this diagram · 4 diagrams in section
