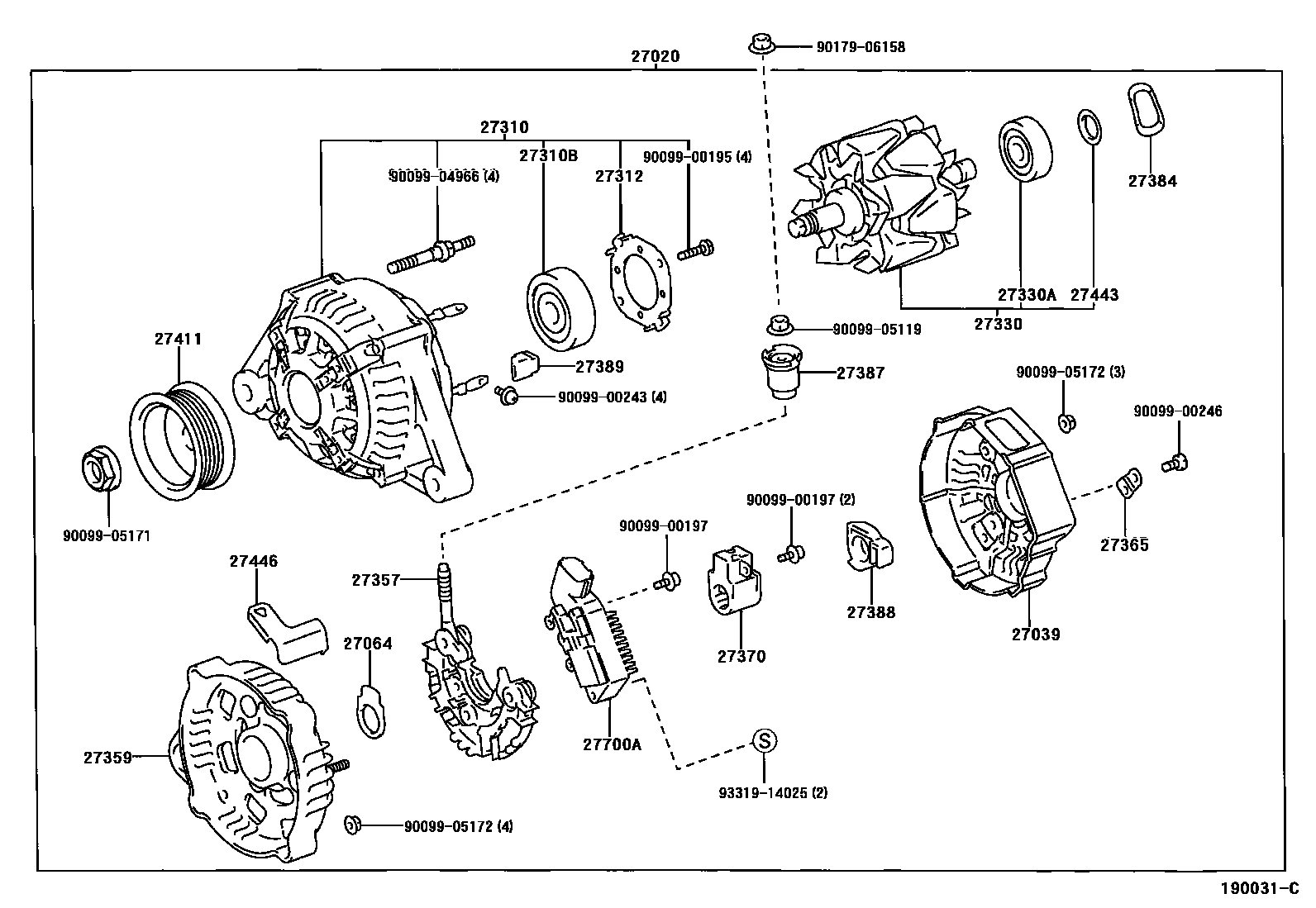

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27060-03060i5SFE..SXV20..NAP199607-200107

12V 80A

main27060-0A090i1MZFE..MCV20..NAP200104-200107

12V 80A,(L)

main27060-20040i1MZFE..MCV20..NAP199607-199908

12V 80A

sub27060-20060

main27060-20120i1MZFE..MCV20..NAP199908-200107

12V 80A,(J)

sub27060-20160

27039COVER, ALTERNATOR REAR END

main27039-03050i5SFE..SXV20..NAP199607-200107

main27039-20020i1MZFE..MCV20..NAP199607-200104

sub27039-28090

main27039-28090i1MZFE..MCV20..NAP200104-200107

27064SEAL, ALTERNATOR PLATE

main27064-0A020i5SFE..SXV20..NAP199607-200107

main27064-42010i1MZFE..MCV20..NAP199607-200107

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-03050i5SFE..SXV20..NAP199607-200107

main27310-20030i1MZFE..MCV20..NAP199607-200107

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10002i5SFE..SXV20..NAP199607-200107

sub90099-10192

main90099-10192i1MZFE..MCV20..NAP199607-200107

27312PLATE, RETAINER

main27312-0A020i5SFE..SXV20..NAP199607-200107

main27312-42010i1MZFE..MCV20..NAP199607-200107

27330ROTOR ASSY, ALTERNATOR

main27330-03050i5SFE..SXV20..NAP199607-200007

sub27330-0D010

main27330-0D010i5SFE..SXV20..NAP200007-200107

main27330-72280i1MZFE..MCV20..NAP199607-200004

sub27330-74550

main27330-74550i1MZFE..MCV20..NAP200004-200107

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10001i5SFE..SXV20..NAP199607-200107

main90099-10140i1MZFE..MCV20..NAP199607-200107

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0A020i5SFE..SXV20..NAP199607-200107

main27357-55080i1MZFE..MCV20..NAP199607-200107

27359FRAME, ALTERNATOR RECTIFIER END

main27359-03050i5SFE..SXV20..NAP199607-200107

main27359-20020i1MZFE..MCV20..NAP199607-200107

27365PLATE, TERMINAL

main27365-55080i1MZFE,5SFE..MCV20,SXV20..NAP199607-200107

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1MZFE,5SFE..MCV20,SXV20..NAP199607-200107

27384WASHER

main27384-0A020i5SFE..SXV20..NAP199607-200107

main27384-50030i1MZFE..MCV20..NAP199607-200107

27387INSULATOR, TERMINAL

main27387-42020i1MZFE,5SFE..MCV20,SXV20..NAP199607-199807

main27387-42021i1MZFE..MCV20..NAP199708-200107

27388COVER, ALTERNATOR BRUSH

main27388-0A020i5SFE..SXV20..NAP199607-200107

sub27388-42010

main27388-42010i1MZFE..MCV20..NAP199607-200107

27389INSULATOR, TERMINAL

main27389-0A020i5SFE..SXV20..NAP199607-200107

sub27389-42010

main27389-42010i1MZFE..MCV20..NAP199607-200107

27411PULLEY, ALTERNATOR

main27411-03050i5SFE..SXV20..NAP199607-200107

main27411-20020i1MZFE..MCV20..NAP199607-199908

main27411-46080i1MZFE..MCV20..NAP199908-200107

27443COVER, ALTERNATOR BEARING

main27443-0A020i5SFE..SXV20..NAP199607-200107

main27443-63020i1MZFE..MCV20..NAP199607-200107

27446CLIP, ALTERNATOR CORD

main27446-20050i1MZFE..MCV20..NAP199607-200107

main27446-74370i5SFE..SXV20..NAP199607-200107

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1MZFE..MCV20..NAP199908-200107

main27700-64130i1MZFE..MCV20..NAP199607-199908

sub27700-46060

main27700-74040i5SFE..SXV20..NAP199607-200107

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

30 parts on this diagram · 2 diagrams in section
