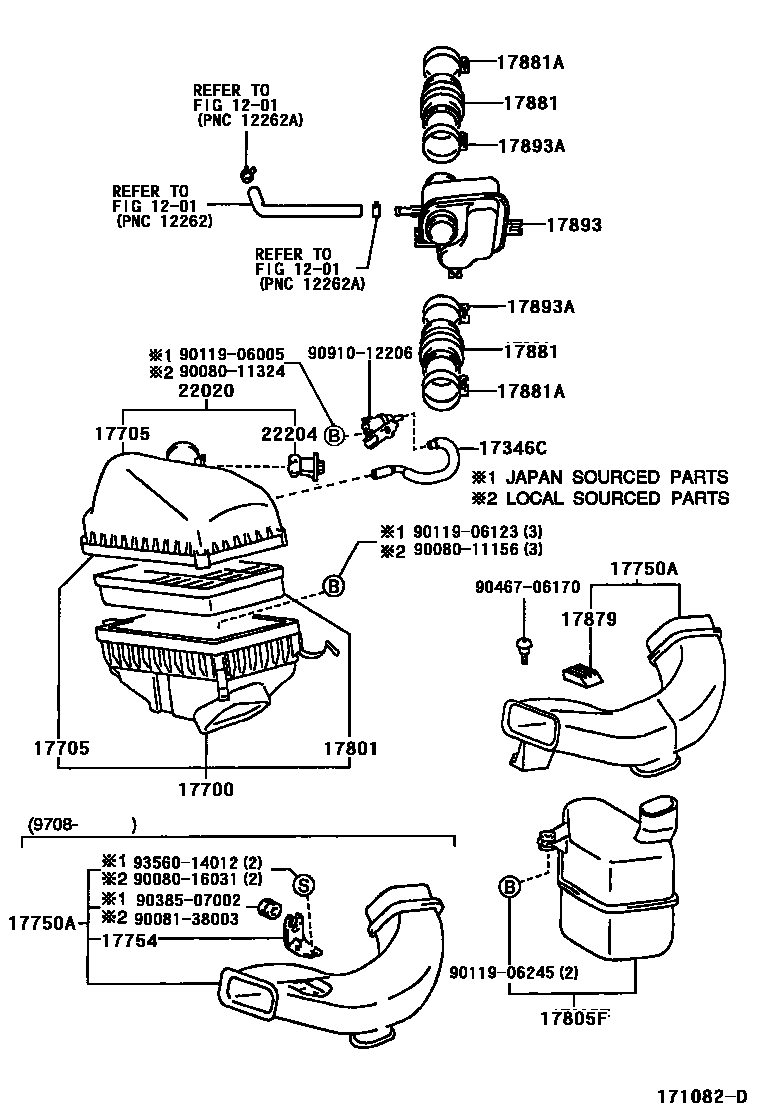

AIR CLEANER
1201
17346CHOSE, NO.6
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17754STAY, AIR CLEANER INLET
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805FRESONATOR SUB-ASSY, INTAKE AIR
NO.1
MARK = 17805-03040;TYPE A:REFER TO ILLUSTRATION,NO.2
MARK = 17805-03050;TYPE B:REFER TO ILLUSTRATION,NO.2
17879PAD, AIR CLEANER INLET
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17893RESONATOR, INTAKE AIR
TYPE B:REFER TO ILLUSTRATION,NO.1
NO.1
TYPE A:REFER TO ILLUSTRATION,NO.1
NO.1
NO.2
17893ACLAMP, HOSE
22020METER ASSY, AIR FLOW W/AIR CLEANER
22204METER SUB-ASSY, INTAKE AIR FLOW
9008011156
main90080-11156
9008011324
main90080-11324
9008016031
main90080-16031
9008138003
main90081-38003
9011906005
main90119-06005
9011906123
main90119-06123
9011906245
main90119-06245
9038507002
main90385-07002
9046706170
main90467-06170
9091012206
main90910-12206
9356014012
main93560-14012
26 parts on this diagram · 4 diagrams in section
