16261HOSE, WATER BY-PASS

main16261-03050i199607

(L)

main16261-74100i199607

(J)

16261GHOSE, WATER BY-PASS, NO.1

main16261-0A010i199607-199908

(L)

main16261-20010i199808-199908

main16261-20010i199607-199908

(J)

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-28008i199607

sub90467-28007

16264HOSE, WATER BY-PASS, NO.2

main16264-0A010i199607-199908

(L)

sub16264-20010

main16264-20010i199607-199908

(J)

main16264-20010i199808-199908

main16264-74101i199607

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-20005i199607

sub96134-41900

main96135-41300i199607

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-0A010i199607-199908

(L)

main16267-20010i199607-199908

(J)

main16267-20010i199808-199908

main16267-74081i199607

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-20005i199607

sub96134-41900

main96135-41300i199607

sub96135-51300

16321INLET, WATER

main16321-03030i199607-199802

(L)

sub16321-03060

main16321-03060i199802

(L)

main16321-0A020i199607-199908

(L)

sub16321-20010

main16321-20010i199808-199908

main16321-20010i199607-199908

(J)

main16321-74030i199607-199802

(J)

sub16321-74050

main16321-74050i199802

(J)

16322PIPE, WATER INLET

main16322-0A020i199607-199908

(L)

main16322-20020i199607-199908

(J)

main16322-20020i199808-199908

16322ARING, O(FOR WATER INLET)

main96761-35031i199607

16323HOUSING, WATER INLET

main16323-0A010i199607-199908

(L)

main16323-20010i199808-199908

main16323-20010i199607-199908

(J)

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i199607

main16325-63011i199607

16331OUTLET, WATER

main16304-0A010i199607-199908

ENGINE NO.=5XXXXXX-9XXXXXX

sub16331-20040

sub16401-62090

main16331-20020i199607-199711

ENGINE NO.=0XXXXXX-4XXXXXX

sub16331-20040

main16331-20040i199711

ENGINE NO.=0XXXXXX-4XXXXXX

main16331-74210i199607-199707

sub16331-74260

main16331-74220i199607-199708

main16331-74260i199707-199708

16331ATHERMOSTAT

main90916-03084i199607

*WAX 82-95

sub90916-03129

main90916-03090i199607

*WAX 82-95

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-62090i199607

16361FAN

main16361-03050i199607-199908

main16361-03070i199908

sub16361-03071

main16361-0A030i199607-199908

main16361-0A120i199908

sub16361-0A121

16361BFAN, NO.2

main16361-0A040i199607-199908

main16361-0A130i199908

sub16361-0A131

16363MOTOR, COOLING FAN

main16363-03070i199607-199908

main16363-0A030i199607-199908

main16363-0A050i199908

main16363-0D011i199908

sub16363-74360

16363AMOTOR, COOLING FAN, NO.2

main16363-03070i199607-199908

main16363-03100i199908

sub16363-74370

main16363-0A040i199607-199908

main16363-0A060i199908

16368BRACKET, COOLING MOTOR

main16368-0A010i199607-199908

16368ABRACKET, COOLING MOTOR, NO.2

main16368-0A010i199607-199908

16384BRACKET, FAN BELT ADJUSTING BAR

main16384-20010i199607

16400RADIATOR ASSY

main16400-03140i199607-199808

sub16400-03141

main16400-03141i199808-199905

sub16400-03142

main16400-03142i199905

sub16400-03152

main16400-03150i199607-199808

sub16400-03151

main16400-03151i199808-199905

sub16400-03152

main16400-03152i199905

main16400-0A050i199607-199808

sub16400-0A051

main16400-0A051i199808-199905

sub16400-0A052

main16400-0A052i199905-199908

sub16400-0A062

main16400-0A060i199607-199808

sub16400-0A061

main16400-0A061i199808-199905

sub16400-0A062

main16400-0A062i199905-199908

main16400-0A190i199908

sub16400-0A200

main16400-0A200i199908

16470TANK ASSY, RADIATOR RESERVE

main16470-03060i199607-199612

TYPE A:REFER TO ILLUSTRATION

sub16470-03061

sub16612-74030

sub90109-06196

main16470-03061i199612-200003

TYPE A:REFER TO ILLUSTRATION

sub16470-03062

sub91626-B0620

main16470-03062i200003

main16470-20030i199607-199612

TYPE B:REFER TO ILLUSTRATION

sub16470-20031

sub16612-74030

sub90109-06196

main16470-20031i199612-199808

TYPE B:REFER TO ILLUSTRATION

sub16470-20040

main16470-20040i199808-200003

TYPE B:REFER TO ILLUSTRATION

main16470-74310i199607-199612

TYPE B:REFER TO ILLUSTRATION

sub16470-74311

sub16612-74030

sub90109-06196

main16470-74311i199612-199808

TYPE B:REFER TO ILLUSTRATION

sub16470-74360

main16470-74360i199808-200003

TYPE B:REFER TO ILLUSTRATION

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i199607-199608

main90445-12078i199607-200003

L=600(*H,L=110)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90080-46035i199607-199712

TYPE A:REFER TO ILLUSTRATION

main90467-11085i199607-200003

TYPE B:REFER TO ILLUSTRATION

main90467-12058i199712-200003

TYPE A:REFER TO ILLUSTRATION

main90467-12058i200003

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main85338-70070i199607-200003

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16472-03060i199607

TYPE A:REFER TO ILLUSTRATION

main16472-0A030i199607-200003

TYPE A:REFER TO ILLUSTRATION

main16472-0A030i200003

main16472-20030i199607-200003

TYPE B:REFER TO ILLUSTRATION

main16472-74310i199607

TYPE B:REFER TO ILLUSTRATION

16471CAP SUB-ASSY, RESERVE TANK

main16405-20020i199607-200003

TYPE B:REFER TO ILLUSTRATION

main16405-74300i199607-200003

TYPE B:REFER TO ILLUSTRATION

main16471-03010i200003

main16471-03010i199607-200003

TYPE A:REFER TO ILLUSTRATION

16523ACUSHION, RADIATOR SUPPORT

main16523-03010i199607

16533SUPPORT, RADIATOR, UPPER

main16533-03030i199607

16535SUPPORT, RADIATOR, LOWER

main16535-03030i199607-200002

sub16535-03050

main16535-03050i200002

(L)

main16535-0A020i199607-200003

sub16535-20010

main16535-0A020i200003

(L)

sub16535-20010

main16535-20010i200003

(J)

main16535-74210i200002

(J)

16571HOSE, RADIATOR, INLET

main16571-03070i199708

(L)

main16571-0A020i199802

(L)

main16571-20020i199607-199802

main16571-20020i199802

(J)

main16571-74360i199607-199708

main16571-74360i199708

(J)

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i199607

sub90467-34004

main90467-37002i199607

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-03070i199708

(L)

main16572-0A020i199802

(L)

main16572-20020i199607-199802

main16572-20020i199802

(J)

main16572-74290i199607-199708

main16572-74290i199708

(J)

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i199607

sub90467-34004

main90467-37002i199607

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-03020i199607

16612BRACKET, RADIATOR RESERVE TANK, NO.2

main16612-74030i199612-200003

16711SHROUD, FAN

main16711-0A030i199607-199808

main16711-0A031i199808-199908

main16711-0A130i199908

16712SHROUD, FAN, NO.2

main16711-03080i199607-199808

main16711-03081i199808

main16711-0A040i199607-199908

main16711-0A140i199908

1701

1709

8202

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9008010164

main90080-10164

9008011188

main90080-11188

9008011206

main90080-11206

9008011208

main90080-11208

9008011223

main90080-11223

9008011256

main90080-11256

9009904119

main90099-04119

9010906196

main90109-06196

9011606070

main90116-06070

9011908938

main90119-08938

9014880017

main90148-80017

9014880018

main90148-80018

9017906080

main90179-06080

9017908144

main90179-08144

9017908230

main90179-08230

9048018010

main90480-18010

9151160616

main91511-60616

91621B0816

main91621-B0816

91621G0612

main91621-G0612

9163160820

main91631-60820

91651B0616

main91651-B0616

9166660616

main91666-60616

9212260612

main92122-60612

9461310800

main94613-10800

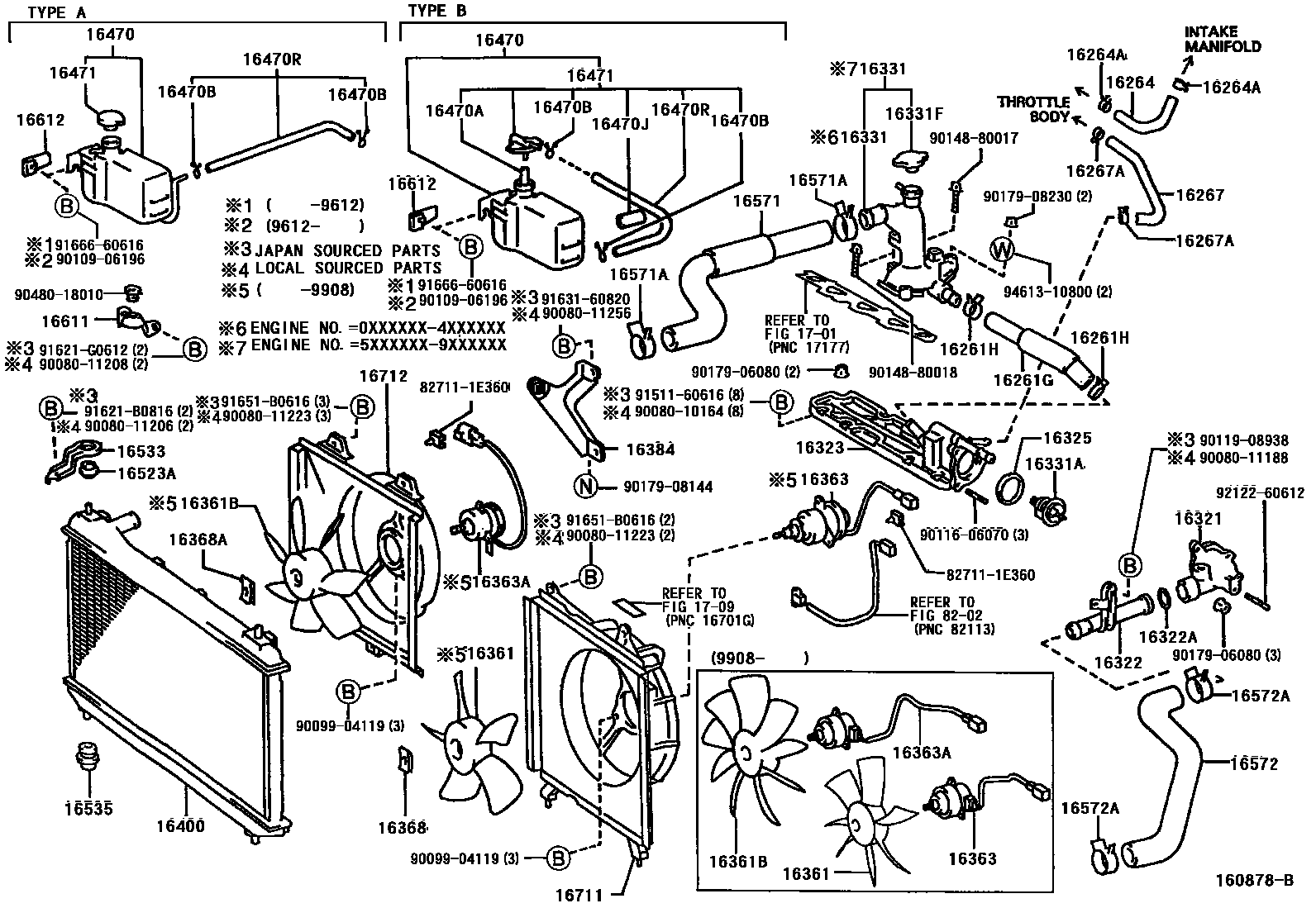

RADIATOR & WATER OUTLET
