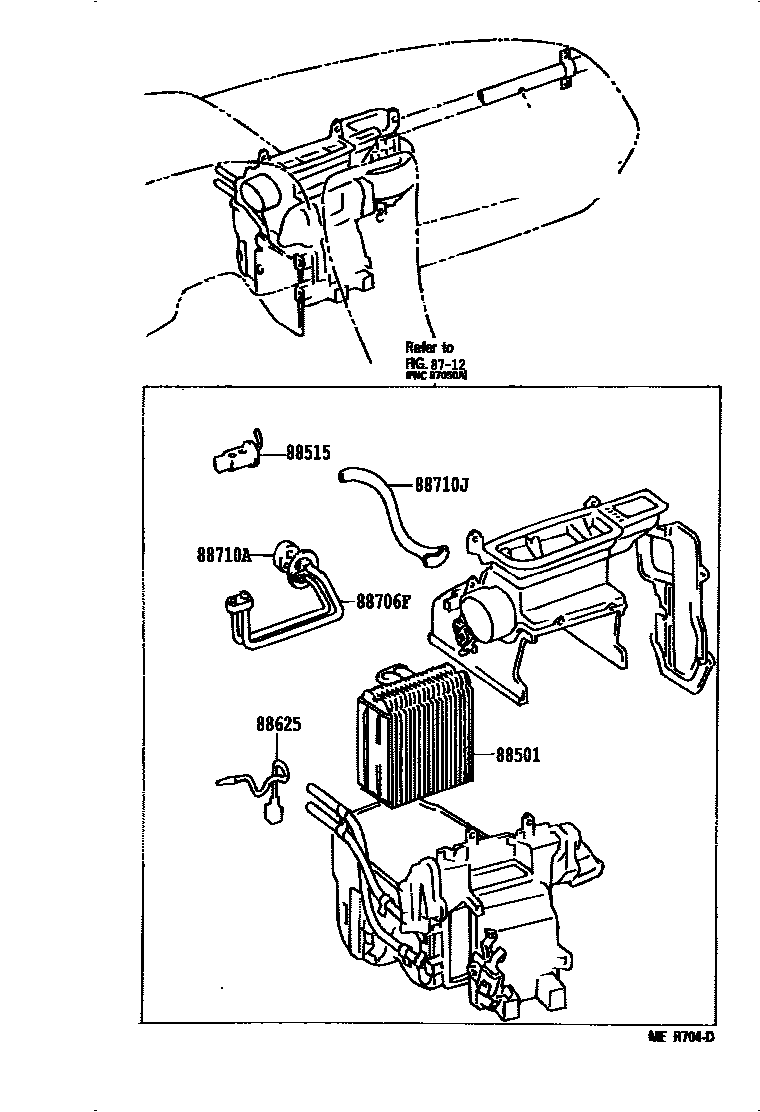

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPT 0002 1DEALER OPT

8712

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06010iSXV10,VCV10..NAP..(LE,SE,XLE)..USA199109-199309

MAKER OPTION

main88501-06020iMCV10,SXV10..NAP..(LE,SE,XLE)199309-199506

MAKER OPTION

sub88501-06021

main88501-06021iMCV10..NAP;SXV10..NAP..(LE,XLE)199506-199607

MAKER OPTION

main88501-33010iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199109-199309

DEALER OPTION

main88501-33040iSXV10..NAP..SED..DX..CND199309-199510

DEALER OPTION

sub88501-33070

main88501-33070iSXV10..NAP..DX199408-199607

DEALER OPTION

sub88501-33080

88515VALVE, COOLER EXPANSION

main88515-06010iSXV10,VCV10..NAP..(LE,XLE)199109-199203

MAKER OPTION

main88515-06020iSXV10..NAP..DX199309-199607

MAKER OPTION

main88515-06030iSXV10,VCV10..NAP..(LE,SE,XLE)..USA199209-199309

MAKER OPTION

main88515-14061iSXV10,VCV10..NAP..DX199109-199203

DEALER OPTION

sub88515-14062

main88515-14062iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199203-199309

DEALER OPTION

sub88515-33010

main88515-20100iSXV10..NAP..DX199309-199607

DEALER OPTION

sub88515-22240

main88515-33010iSXV10,VCV10..NAP..(LE,XLE)..USA199203-199209

MAKER OPTION

88625THERMISTOR, COOLER, NO.1

main88625-06010iSXV10..NAP..(LE,XLE);VCV10..NAP..(LE,XLE)..USA199109-199607

MAKER OPT

main88625-33070iMCV10,SXV10..NAP..DX199109-199607

DEALER OPT

88706FTUBE SUB-ASSY, LIQUID, F

main88706-33020iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199109-199309

main88716-33140iMCV10,SXV10..NAP199309-199607

88710ATUBE ASSY, AIR CONDITIONER

main88710-33010iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199109-199309

main88710-33070iMCV10,SXV10..NAP..DX199309-199607

88710JTUBE, AIR CONDITIONER CONNECTOR

main88710-33090iMCV10,SXV10..NAP199408-199607

7 parts on this diagram · 2 diagrams in section
