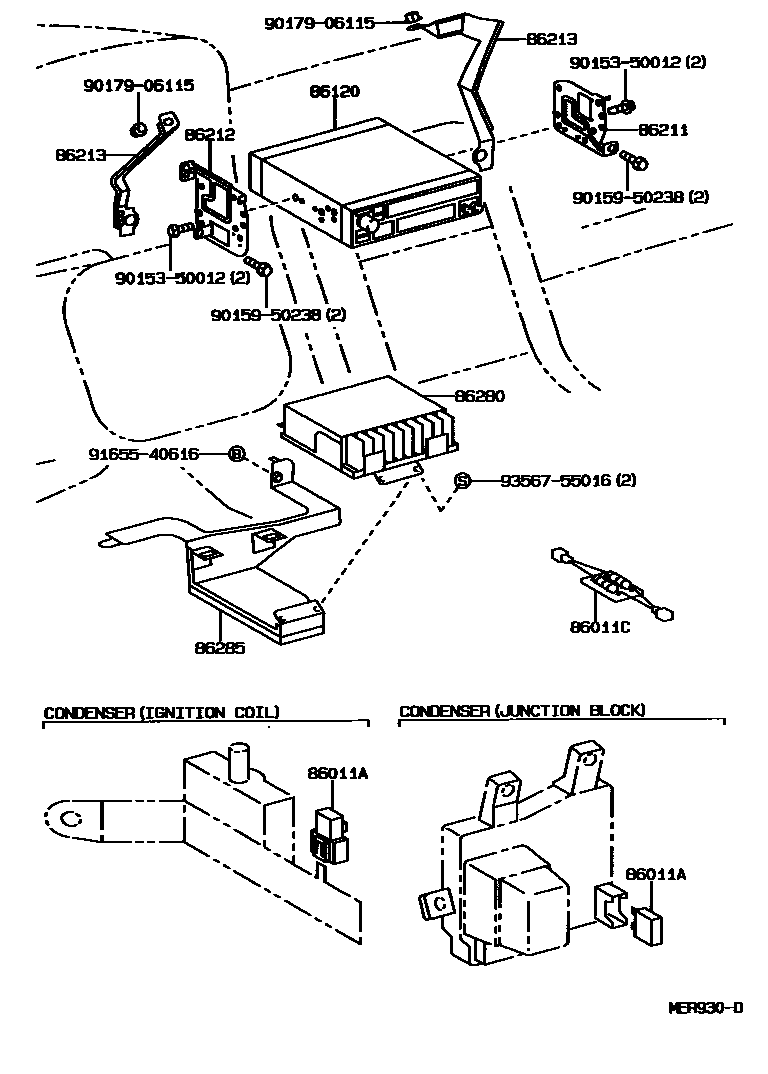

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04066iMCV10,SXV10,VCV10..NAP199109-199408

NO.1 JUNCTION BLOCK

main90980-04066iMCV10,SXV10..NAP199408-199607

NO.1 J/B

main90980-04066iMCV10,SXV10,VCV10..NAP199109-199408

main90980-04083iMCV10,SXV10,VCV10..NAP199109-199607

IGNITER

86011CFILTER, NOISE

main90980-05190iMCV10,SXV10..NAP199309-199607

main90980-05223iMCV10,SXV10,VCV10..NAP199109-199408

86120RECEIVER ASSY, RADIO

main86120-06010iSXV10,VCV10..NAP..DX199109-199408

FUJITSU TEN USA

main86120-06020iSXV10,VCV10..NAP..DX199109-199408

FUJITSU TEN USA,AM/FM MPX ETR CST 1DIN

main86120-06020iMCV10,SXV10,VCV10..NAP..(LE,SE,XLE)199109-199408

FUJITSU TEN USA

main86120-06030iMCV10,SXV10,VCV10..NAP..(LE,SE,XLE)199109-199408

AM/FM MPX ETR CST *AF 1DIN

main86120-06050iMCV10,SXV10..NAP..DX199408-199607

FUJITSU,ID=A11404

main86120-06060iMCV10,SXV10..NAP..DX199408-199607

FUJITSU,ID=A16406,AM/FM MPX ETR CST 1DIN

sub86120-06061

main86120-06060iMCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

FUJITSU,ID=A16406

sub86120-06061

main86120-06070iMCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

FUJITSU,ID=A11712,AM/FM MPX ETR CST *AF 1DIN

main86120-2B400iMCV10..NAP..(CP,WG)..USA;SXV10,VCV10..NAP..(DX,LE,XLE)..USA199109-199408

FUJITSU TEN,AM/FM MPX ETR CST 1DIN,GENERAL

main86120-33050iMCV10,SXV10..NAP..(LE,SE,XLE)..USA199408-199607

FUJITSU TEN,AM/FM MPX ETR CST CD 2DIN

sub86120-33051

main86120-33110iVCV10..NAP..SE199209-199309

FUJITSU TEN,POWER PACKAGE & AM/FM MPX ETR CASSETE CD 2DIN

main86120-33110iVCV10..NAP..(LE,XLE);MCV10,SXV10..NAP..(LE,SE,XLE)199109-199408

FUJITSU TEN,AM/FM MPX ETR CST CD 2DIN

86211BRACKET, RADIO, NO.1

main86211-06010iMCV10,SXV10,VCV10..NAP199109-199607

86212BRACKET, RADIO, NO.2

main86212-06010iMCV10,SXV10,VCV10..NAP199109-199607

86213BRACKET, RADIO, NO.3

main86213-33010iMCV10,SXV10,VCV10..NAP199203-199607

RH

main86213-33020iSXV10,VCV10..NAP199203-199309

LH

main86213-33021iMCV10,SXV10..NAP199309-199607

LH

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-06010iVCV10..NAP..SE199109-199607

main86280-06020iMCV10,SXV10,VCV10..NAP..WG..LE199203-199607

86285BRACKET, AMPLIFIER, NO.1

main86285-06010iSXV10,VCV10..NAP..(LE,XLE)199109-199309

main86285-06011iMCV10,SXV10..NAP..(LE,SE,XLE)199309-199607

9015350012

main90153-50012

9015950238

main90159-50238

9017906115

main90179-06115

9165540616

main91655-40616

9356755016

main93567-55016

13 parts on this diagram · 2 diagrams in section
