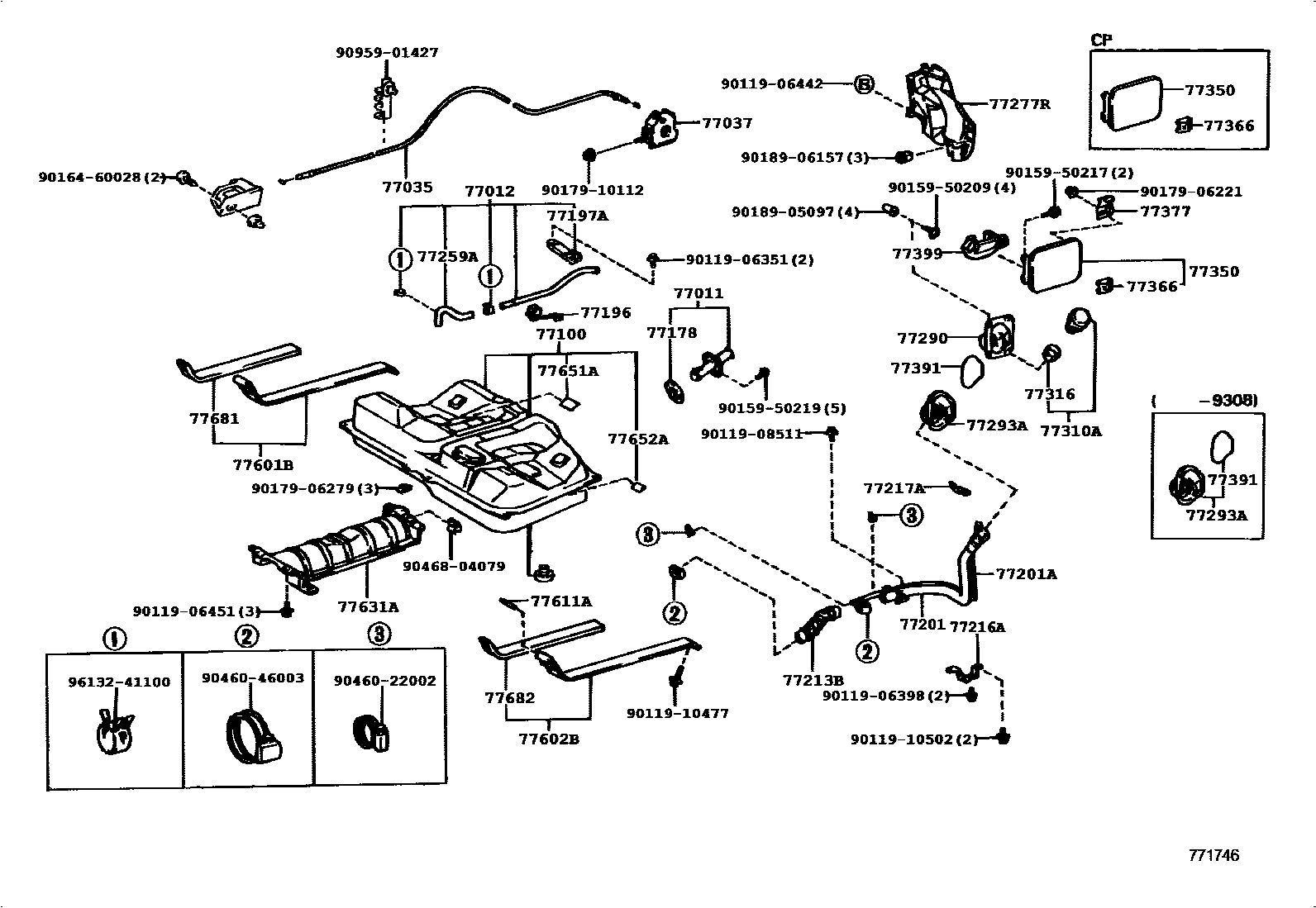

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iMCV10,SXV10,VCV10..NAP199109-199408

main77011-41010iMCV10,SXV10..NAP199408-199607

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-33010iSXV10,VCV10..NAP199109-199308

sub77028-33010

sub77196-33020

main77028-33010iMCV10,SXV10,VCV10..NAP199308-199607

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-06010iMCV10,SXV10..NAP..(CP,SED)199309-199607

(L)

sub77035-33010

main77035-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

(J)

main77035-33060iMCV10,SXV10,VCV10..NAP..WG199203-199607

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-06010iMCV10,SXV10..NAP..(CP,SED)199307-199607

(L)

main77037-14020iMCV10,SXV10,VCV10..NAP..(CP,SED)199304-199607

(J)

main77037-20060iMCV10,SXV10,VCV10..NAP..WG199203-199607

main77037-32020iSXV10,VCV10..NAP..SED199109-199304

sub77037-14020

77100TANK ASSY, FUEL

main77001-06900iMCV10,SXV10,VCV10..NAP199109-199607

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iMCV10,SXV10,VCV10..NAP199109-199607

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-33020iMCV10,SXV10,VCV10..NAP199308-199607

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-33020iMCV10,SXV10,VCV10..NAP199308-199607

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33010iMCV10,SXV10,VCV10..NAP199109-199607

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77249-33020iSXV10..NAP..ATM199508-199607

L=210

main90445-22024iMCV10,SXV10,VCV10..NAP199109-199607

L=385

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-33010iMCV10,SXV10,VCV10..NAP199109-199408

main77213-33020iMCV10,SXV10..NAP199408-199607

main77213-33031iSXV10..NAP..ATM199508-199607

L=182

sub77213-33050

main77213-33050iSXV10..NAP..ATM199508-199607

L=240

sub77213-33120

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-32050iMCV10,SXV10,VCV10..NAP199109-199311

sub77216-33010

main77216-33010iMCV10,SXV10..NAP199311-199607

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32030iSXV10,VCV10..NAP199109-199308

main77217-33010iMCV10,SXV10,VCV10..NAP199308-199607

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-33010iMCV10,SXV10,VCV10..NAP199109-199607

main77419-33010iSXV10..NAP..ATM199508-199607

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main77277-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main77290-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main77290-AA010iMCV10,SXV10..NAP..CP199408-199607

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main77293-AA010iMCV10,SXV10..NAP..CP199309-199607

77310ACAP ASSY, FUEL TANK

main77310-01011iSXV10,VCV10..NAP199109-199204

sub77310-01012

main77310-01012iMCV10,SXV10,VCV10..NAP199204-199607

sub77310-06020

77316GASKET, FUEL TANK CAP

main77316-06010iMCV10,SXV10,VCV10..NAP199204-199607

main77316-16010iSXV10,VCV10..NAP199109-199204

77350LID ASSY, FUEL FILLER OPENING

main77350-33040iMCV10,SXV10,VCV10..NAP..SED199109-199607

main77350-33050iMCV10,SXV10,VCV10..NAP..WG199203-199607

main77350-AA010iMCV10,SXV10..NAP..CP199309-199607

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-AA010iMCV10,SXV10..NAP..CP199309-199607

main77366-12030iSXV10,VCV10..NAP199109-199207

main77366-35010iMCV10,SXV10,VCV10..NAP..(SED,WG)199207-199607

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iMCV10,SXV10..NAP..CP199309-199607

77391RING, FUEL INLET BOX

main77391-16011iMCV10,SXV10,VCV10..NAP199109-199607

77399HANGER, FUEL TANK CAP

main77399-20010iMCV10,SXV10..NAP..CP199309-199607

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33010iMCV10,SXV10,VCV10..NAP199109-199607

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33010iMCV10,SXV10,VCV10..NAP199109-199607

77611APIN (FOR FUEL TANK BAND)

main90250-08019iMCV10,SXV10,VCV10..NAP199109-199607

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-06010iMCV10,SXV10,VCV10..NAP199109-199607

sub77631-06011

77651ACUSHION, FUEL TANK, NO.1

main77652-03010iMCV10,SXV10..NAP199408-199607

main77652-32030iMCV10,SXV10,VCV10..NAP199109-199408

77652ACUSHION, FUEL TANK, NO.2

main77652-20110iSXV10,VCV10..NAP199109-199209

sub77652-33010

main77652-33010iMCV10,SXV10,VCV10..NAP199209-199408

sub77652-20110

77681SEAT, FUEL TANK BAND, RH

main77681-32040iSXV10,VCV10..NAP199109-199302

sub77681-32060

main77681-32060iMCV10,SXV10..NAP199408-199607

main77681-32070iMCV10,SXV10,VCV10..NAP199302-199408

sub77681-32060

77682SEAT, FUEL TANK BAND, LH

main77681-32040iMCV10,SXV10,VCV10..NAP199109-199408

sub77681-32060

main77681-32060iMCV10,SXV10..NAP199408-199607

9011906351

main90119-06351

9011906398

main90119-06398

9011906442

main90119-06442

9011906451

main90119-06451

9011908511

main90119-08511

9011910477

main90119-10477

9011910502

main90119-10502

9015950209

main90159-50209

9015950217

main90159-50217

9015950219

main90159-50219

9016460028

main90164-60028

9017906221

main90179-06221

9017906279

main90179-06279

9017910112

main90179-10112

9018905097

main90189-05097

9018906157

main90189-06157

9046022002

main90460-22002

9046046003

main90460-46003

9046804079

main90468-04079

9095901427

main90959-01427

9613241100

main96132-41100

53 parts on this diagram · 3 diagrams in section
