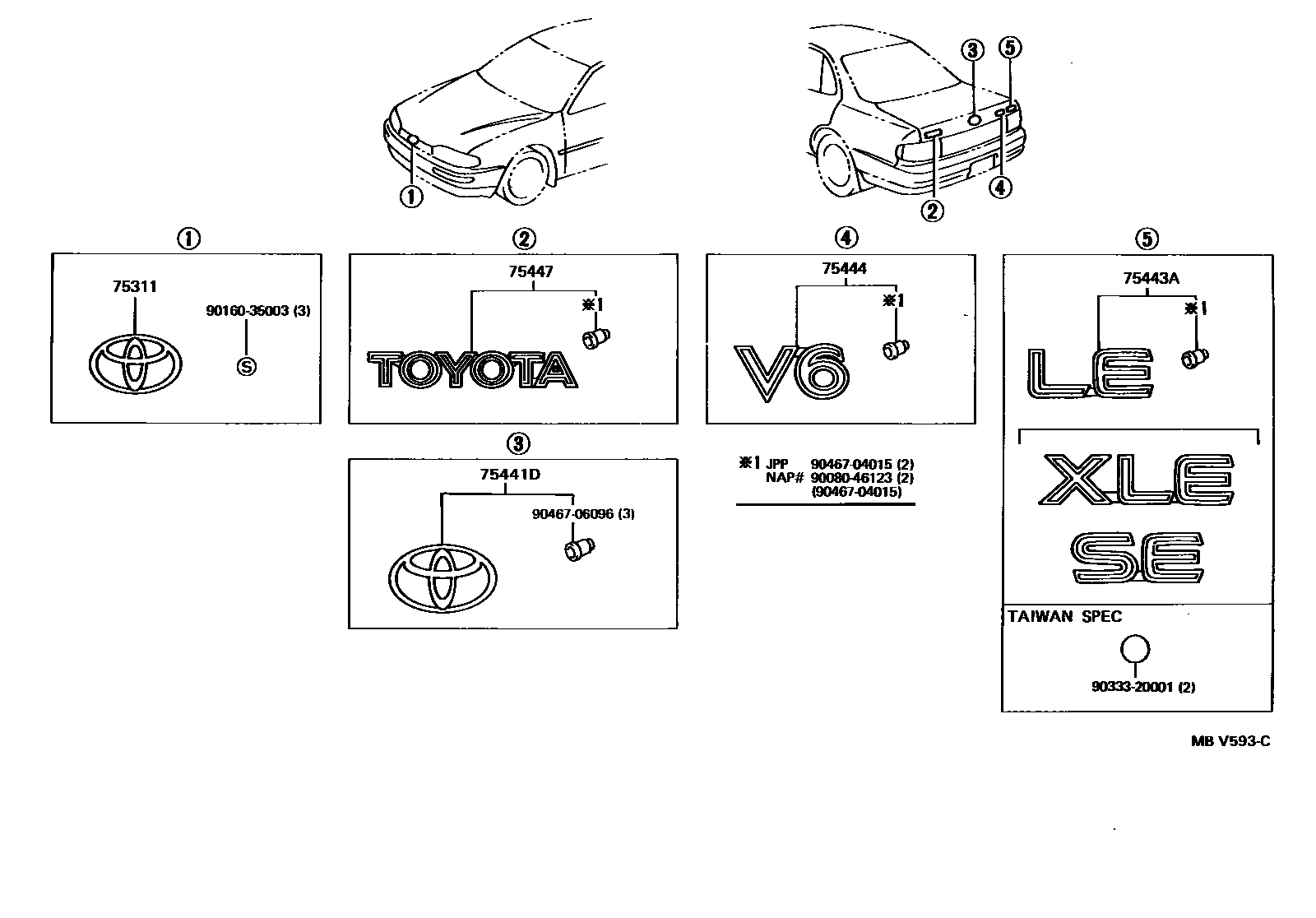

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-06010iMCV10,SXV10,VCV10..NAP199109-199408

main75311-33010iSXV10,VCV10..NAP199109-199207

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-06010iMCV10,SXV10..NAP..(CP,SED)199109-199607

main75441-33010iSXV10,VCV10..NAP..SED199109-199205

sub75441-33011

main75441-33011iSXV10,VCV10..NAP..SED199205-199207

75443PLATE, BACK DOOR NAME, NO.3

main75443-06040iMCV10,SXV10,VCV10..NAP..WG..LE199203-199607

LE

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)..LE199109-199408

LE

main75443-06020iMCV10,SXV10,VCV10..NAP..XLE199109-199408

XLE

main75443-06030iMCV10,VCV10..NAP..SE199209-199408

SE

main75443-33010iSXV10,VCV10..NAP..LE199109-199203

LE

main75443-33020iSXV10,VCV10..NAP..XLE199109-199203

XLE

main75443-AA020iSXV10..NAP..(CP,SED)..LE;MCV10..NAP..(CP,SED)..(DX,LE)199408-199607

main75443-AA030iMCV10,SXV10..NAP..XLE199408-199607

main75443-AA040iMCV10..NAP..SE199408-199607

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-06010iMCV10,VCV10..NAP..(CP,SED)199109-199408

V6

main75444-33010iVCV10..NAP199109-199203

V6

main75444-AA010iMCV10..NAP..(CP,SED)..(LE,SE,XLE)199408-199607

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75447-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199312

main75447-06030iMCV10,SXV10..NAP..(CP,SED)199312-199607

main75447-33010iSXV10,VCV10..NAP199109-199203

9008046123

main90080-46123

9016035003

main90160-35003

9033320001

main90333-20001

9046704015

main90467-04015

9046706096

main90467-06096

11 parts on this diagram · 2 diagrams in section
