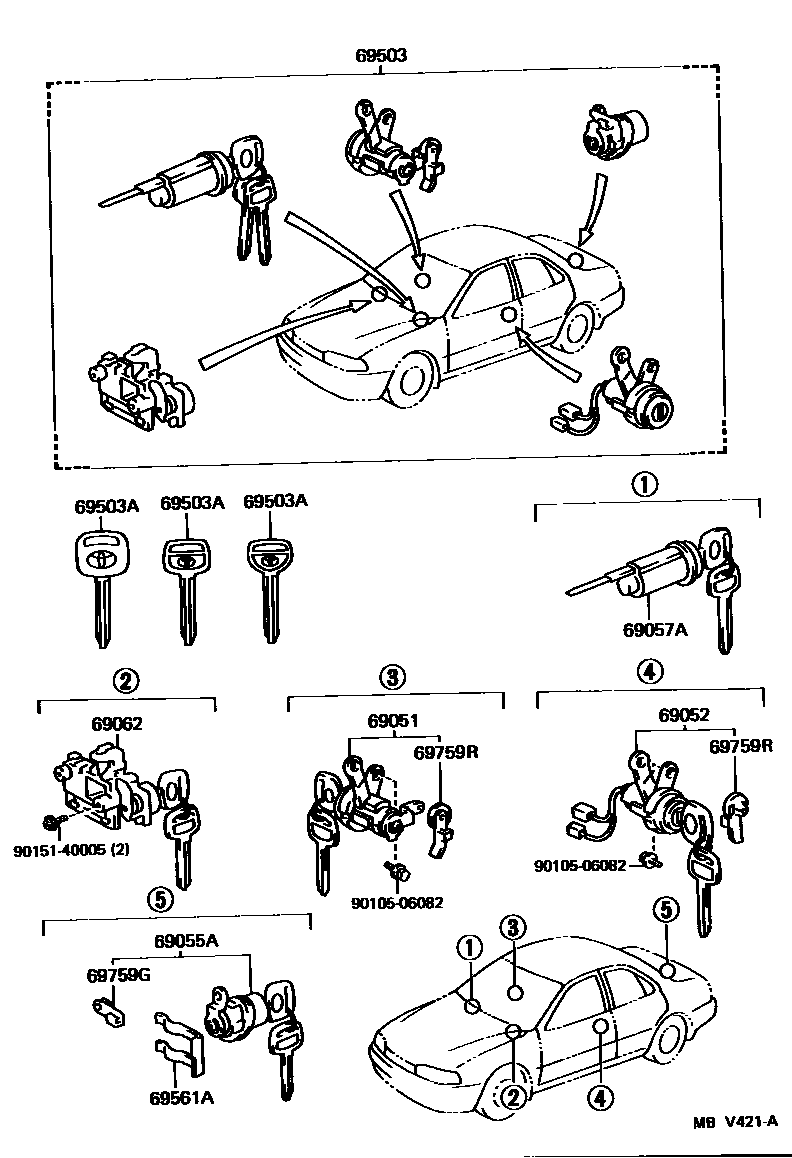

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-33010iMCV10,SXV10,VCV10..NAP199109-199607

sub69051-33020

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33010iMCV10,SXV10..NAP..WG..USA;MCV10,SXV10..NAP..(CP,SED)..(DX,LE,SE)199109-199607

sub69052-33030

main69052-33020iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199109-199607

sub69052-33120

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33011iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33010iMCV10,SXV10,VCV10..NAP199109-199607

sub69057-33030

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33010iMCV10,SXV10,VCV10..NAP199109-199607

sub69056-42020

69503CYLINDER SET, LOCK

main69005-33011iMCV10,SXV10..NAP..XLE199109-199607

sub69005-33400

main69005-33021iSXV10..NAP..(CP,SED)..DX..CND;MCV10,SXV10,VCV10..NAP..(CP,SED)..(DX,LE,SE)..USA199109-199607

sub69005-33041

main69005-33070iMCV10,SXV10,VCV10..NAP..WG..LE..CND199203-199607

sub69005-33390

main69005-33080iSXV10..NAP..WG..DX..CND;MCV10,SXV10,VCV10..NAP..WG..USA199203-199607

sub69005-33100

69503AKEY, BLANK

main90999-00185iMCV10,SXV10,VCV10..NAP199109-199607

MASTER KEY,W(*68)

main90999-00186iMCV10,SXV10,VCV10..NAP199109-199607

MASTER KEY

main90999-00188iMCV10,SXV10,VCV10..NAP199109-199607

SUB KEY

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090iMCV10,SXV10,VCV10..NAP199109-199607

RH

main69759-32100iMCV10,SXV10,VCV10..NAP199109-199607

LH

9010506082

main90105-06082

9015140005

main90151-40005

12 parts on this diagram · 2 diagrams in section
