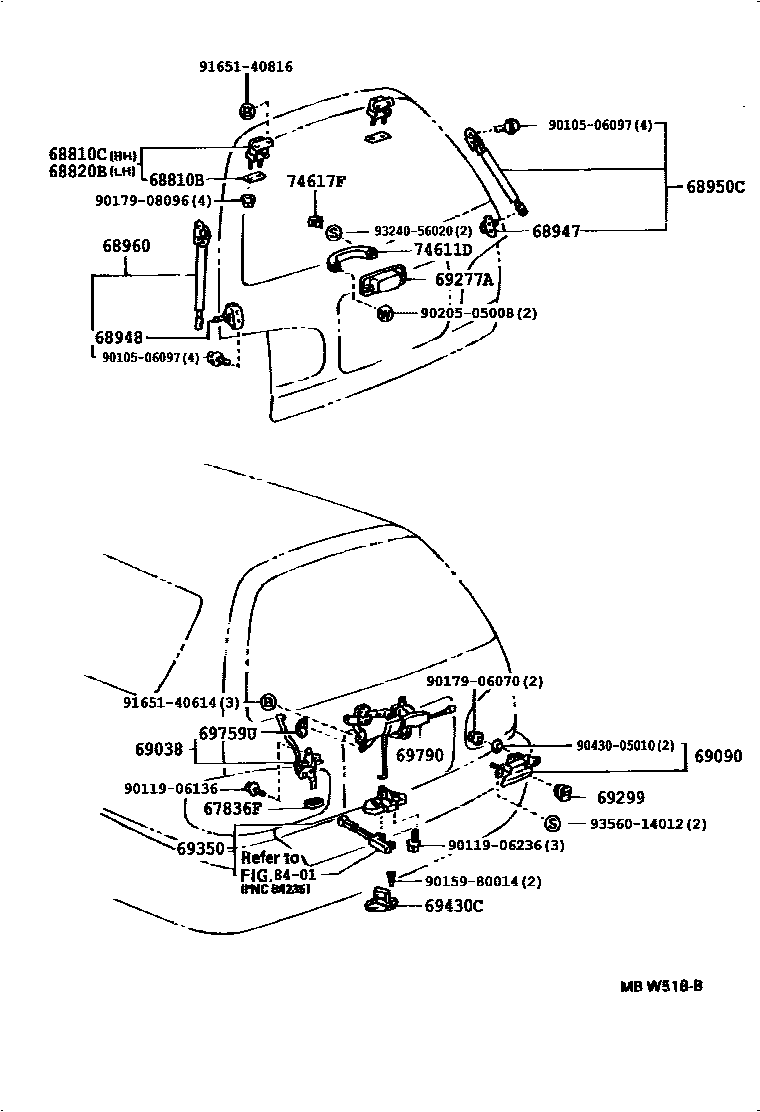

BACK DOOR LOCK & HANDLE
67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
W(3RD SEAT)
68810BPAD, BACK DOOR HINGE
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69038PROTECTOR SUB-ASSY, BACK DOOR CHILD
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69277ABEZEL, BACK DOOR INSIDE HANDLE
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
69299GROMMET, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69759USNAP, BACK DOOR LOCK CONTROL LINK
69790CONTROL ASSY, BACK DOOR LOCK
W(3RD SEAT),MEDIUM GRAY,TRIM1#
W(3RD SEAT),OAK,TRIM4#
W(3RD SEAT),DARK BLUE,TRIM8#
74611DGRIP, ASSIST, BACK DOOR
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
74617FPLUG, ASSIST GRIP
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
8401
9010506097
main90105-06097
9011906136
main90119-06136
9011906236
main90119-06236
9015980014
main90159-80014
9017906070
main90179-06070
9017908096
main90179-08096
9020505008
main90205-05008
9043005010
main90430-05010
9165140614
main91651-40614
9165140816
main91651-40816
9324056020
main93240-56020
9356014012
main93560-14012
31 parts on this diagram · 1 diagram in section
