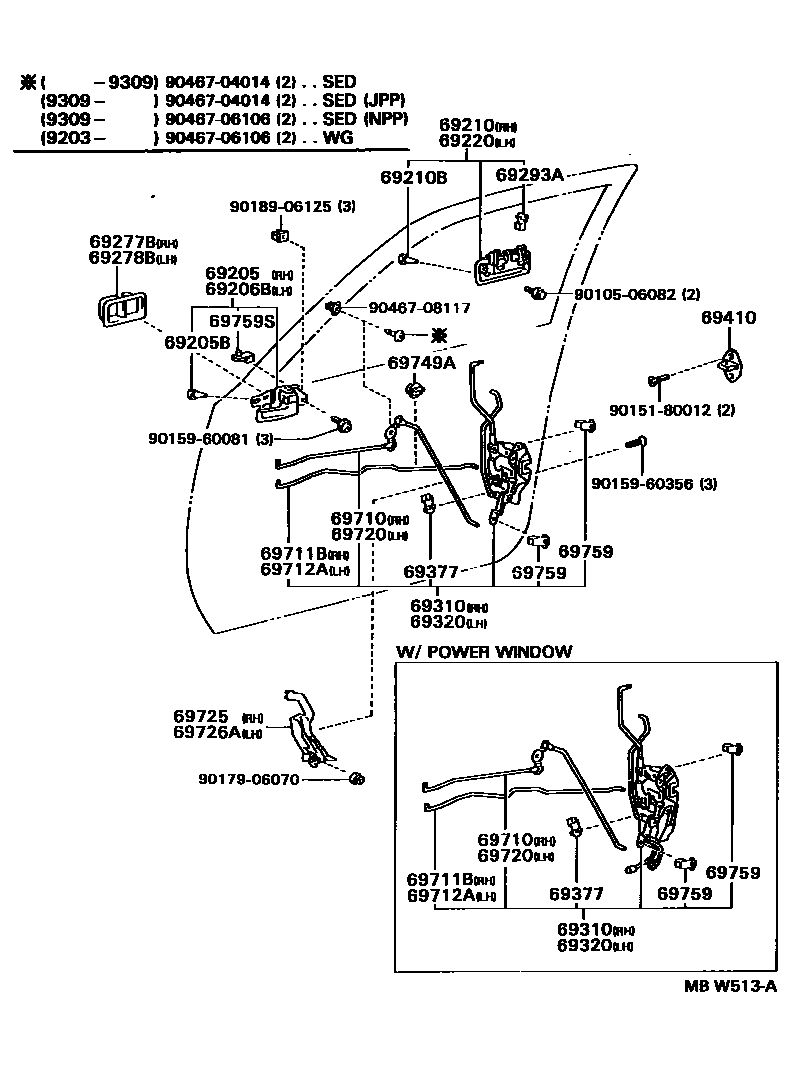

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

main69205-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

main69205-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main69205-06010-K0iSXV10,VCV10..NAP..SED199109-199309

TAUPE,TRIM9#

main69205-06011-B0iMCV10,SXV10..NAP199309-199607

MEDIUM GRAY,TRIM1#

main69205-06011-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

main69205-06011-K0iMCV10,SXV10..NAP..(CP,SED)199309-199607

TAUPE,TRIM9#

main69205-32070-E0iSXV10,VCV10..NAP199209-199212

OAK,TRIM4#

sub69205-32070

main69205-32070-K0iSXV10,VCV10..NAP..SED199109-199212

TAUPE,TRIM9#

sub69205-32070

main69205-32070-S4iSXV10,VCV10..NAP199109-199212

MEDIUM GRAY,TRIM1#

sub69205-32070

main69205-32070-W3iSXV10,VCV10..NAP199109-199212

DARK BLUE,TRIM8#

sub69205-32070

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iMCV10,SXV10,VCV10..NAP199109-199607

main90541-04014iSXV10,VCV10..NAP199109-199212

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

main69206-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

main69206-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main69206-06010-K0iSXV10,VCV10..NAP..SED199109-199309

TAUPE,TRIM9#

main69206-06011-B0iMCV10,SXV10..NAP199309-199607

MEDIUM GRAY,TRIM1#

main69206-06011-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

main69206-06011-K0iMCV10,SXV10..NAP..(CP,SED)199309-199607

TAUPE,TRIM9#

main69206-32070-E0iSXV10,VCV10..NAP199209-199212

OAK,TRIM4#

sub69206-32070

sub69206-32071

main69206-32070-K0iSXV10,VCV10..NAP..SED199109-199212

TAUPE,TRIM9#

sub69206-32070

sub69206-32071

main69206-32070-S4iSXV10,VCV10..NAP199109-199212

MEDIUM GRAY,TRIM1#

sub69206-32070

sub69206-32071

main69206-32070-W3iSXV10,VCV10..NAP199109-199212

DARK BLUE,TRIM8#

sub69206-32070

sub69206-32071

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06010iMCV10,SXV10..NAP..DX..CND199109-199607

main69210-06020-A1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

SUPER WHITE 2,040

main69210-06020-B1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

BLUISH SILVER ME.,1A0

main69210-06020-C1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

BLACK,202

main69210-06020-D3iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

SU.RED 3,3J6

main69210-06020-D4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199508

RED MM,3K4

main69210-06020-D5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199508-199607

MAGENTA MC.,3L3

main69210-06020-E1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

BEIGE ME.,4M9

main69210-06020-G2iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

GREENISH SILVER M.M,6L3

main69210-06020-G3iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199508

DK GREEN MICA,6M1

main69210-06020-G4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199508-199607

DK.GREEN M.M.,6P2

main69210-06020-J2iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

DK.BLUE M.M.,8K0

main69210-06020-K1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199502-199607

GRAYISH PURPLE M,923

main69210-06020-K2iMCV10,SXV10..NAP..SED..(LE,XLE)199512-199607

DARK TAUPE MCOP,927

main69210-32090-A0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

SUPER WHITE 2,040

sub69210-32090

sub69210-32091

main69210-32090-B0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

SUPER SILVER 3 M,176

sub69210-32090

sub69210-32091

main69210-32090-C0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

BLACK,202

sub69210-32090

sub69210-32091

main69210-32090-D0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

RED MICA M,3J9

sub69210-32090

sub69210-32091

main69210-32090-D1iSXV10,VCV10..NAP..(LE,XLE)199109-199209

DARK WINE RED MICA,3K2

sub69210-32090

sub69210-32091

main69210-32090-E0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

BEIGE MICA M,4J1

sub69210-32090

sub69210-32091

main69210-32090-G0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

DARK GREEN MICA,6M1

sub69210-32090

sub69210-32091

main69210-32090-J0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

LIGHT BLUE MICA M,8G2

sub69210-32090

sub69210-32091

main69210-32090-J1iSXV10,VCV10..NAP..(LE,XLE)199109-199209

DARK BLUE MICA,8J4

sub69210-32090

sub69210-32091

main69210-32090-K0iSXV10,VCV10..NAP..(LE,XLE)199109-199209

GRAYISH PURPLE M,923

sub69210-32090

sub69210-32091

main69210-32091-A0iMCV10..NAP199209-199408

SUPER WHITE 2,040

sub69210-32091

main69210-32091-A1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

SUPER WHITE 2,040

sub69210-32091

main69210-32091-B0iSXV10,VCV10..NAP..(LE,XLE)199209-199309

SUPER SILVER 3M,176

sub69210-32091

main69210-32091-B3iSXV10..NAP..ATM199309-199408

BLUISH SILVER ME,1A0

sub69210-32091

main69210-32091-B6iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

BLUISH SILVER ME.,1A0

sub69210-32091

main69210-32091-C0iSXV10..NAP..MTM199209-199408

BLACK,202

sub69210-32091

main69210-32091-C1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

BLACK,202

sub69210-32091

main69210-32091-D1iSXV10,VCV10..NAP..(LE,XLE)199209-199309

DARK WINE RED MICA,3K2

sub69210-32091

main69210-32091-D2iSXV10..NAP..ATM199309-199408

SUPER RED 3,3J6

sub69210-32091

main69210-32091-D3iSXV10..NAP..MTM199209-199408

RED MICA ME,3K4

sub69210-32091

main69210-32091-D4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

SU.RED 3,3J6

sub69210-32091

main69210-32091-D5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199508

RED MM,3K4

sub69210-32091

main69210-32091-D8iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199508-199607

MAGENTA MC.,3L3

sub69210-32091

main69210-32091-E0iSXV10,VCV10..NAP..(LE,XLE)199209-199309

BEIGE MICA ME,4J1

sub69210-32091

main69210-32091-E4iSXV10..NAP..ATM199309-199408

BEIGE ME,4M9

sub69210-32091

main69210-32091-E5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

BEIGE ME.,4M9

sub69210-32091

main69210-32091-G0iSXV10..NAP..ATM199209-199408

DARK GREEN ME,6M1

sub69210-32091

main69210-32091-G2iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199508

DK GREEN MICA,6M1

sub69210-32091

main69210-32091-G3iSXV10..NAP..ATM199309-199408

GREENISH SILVER ME,6L3

sub69210-32091

main69210-32091-G4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

GREENISH SILVER M.M,6L3

sub69210-32091

main69210-32091-G5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199508-199607

DK.GREEN M.M.,6P2

sub69210-32091

main69210-32091-J1iSXV10,VCV10..NAP..(LE,XLE)199209-199309

DARK BLUE MICA,8J4

sub69210-32091

main69210-32091-J2iSXV10..NAP..ATM199209-199408

LT.BLUE MICA ME,8J6

sub69210-32091

main69210-32091-J5iMCV10..NAP199309-199408

DK BLUE M.M,8K0

sub69210-32091

main69210-32091-J7iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

DK.BLUE M.M.,8K0

sub69210-32091

main69210-32091-K0iSXV10..NAP..MTM199209-199408

GRAYISH PUPLE ME,923

sub69210-32091

main69210-32091-K1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199408-199607

GRAYISH PURPLE M,923

sub69210-32091

main69210-32091-K2iMCV10,SXV10..NAP..SED..(LE,XLE)199512-199607

DARK TAUPE MCOP,927

sub69210-32091

main69210-33010iSXV10,VCV10..NAP..(DX,SE)199109-199212

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90080-54005iMCV10,SXV10..NAP..DX..CND199109-199607

main90541-04014iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199109-199607

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-06010iSXV10,VCV10..NAP..(DX,SE)199109-199607

main69220-06020-A1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

SUPER WHITE 2,040

main69220-06020-B1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

BLUISH SILVER ME.,1A0

main69220-06020-C1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

BLACK,202

main69220-06020-D3iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

SU.RED 3,3J6

main69220-06020-D4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199508

RED MM,3K4

main69220-06020-D5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199508-199607

MAGENTA MC.,3L3

main69220-06020-E1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

BEIGE ME.,4M9

main69220-06020-G2iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

GREENISH SILVER M.M,6L3

main69220-06020-G3iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199508

DK GREEN MICA,6M1

main69220-06020-G4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199508-199607

DK.GREEN M.M.,6P2

main69220-06020-J2iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

DK.BLUE M.M.,8K0

main69220-06020-K1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199502-199607

GRAYISH PURPLE M,923

main69220-06020-K2iMCV10,SXV10..NAP..SED..LE199512-199607

DARK TAUPE MCOP,927

main69220-06030-A1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

SUPER WHITE 2,040

sub69220-33011

main69220-06030-B1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

BLUISH SILVER ME.,1A0

sub69220-33011

main69220-06030-C1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

BLACK,202

sub69220-33011

main69220-06030-D2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

SU.RED 3,3J6

sub69220-33011

main69220-06030-D3iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199508

RED MM,3K4

sub69220-33011

main69220-06030-D4iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199508-199607

MAGENTA MC.,3L3

sub69220-33011

main69220-06030-E1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

BEIGE ME.,4M9

sub69220-33011

main69220-06030-G2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

GREENISH SILVER M.M,6L3

sub69220-33011

main69220-06030-G3iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199508

DK GREEN MICA,6M1

sub69220-33011

main69220-06030-G4iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199508-199607

DK. GREEN M.M,6P2

sub69220-33011

main69220-06030-J2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

DK.BLUE M.M.,8K0

sub69220-33011

main69220-06030-K1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199502-199607

GRAYISH PURPLE M,923

sub69220-33011

main69220-06030-K2iMCV10,SXV10..NAP..XLE199512-199607

DARK TAUPE MCOP,927

sub69220-33011

main69220-32090-A0iSXV10,VCV10..NAP..LE..USA199109-199209

SUPER WHITE 2,040

sub69220-32090

sub69220-32091

main69220-32090-B0iSXV10,VCV10..NAP..LE..USA199109-199209

SUPER SILVER 3 M,176

sub69220-32090

sub69220-32091

main69220-32090-C0iSXV10,VCV10..NAP..LE..USA199109-199209

BLACK,202

sub69220-32090

sub69220-32091

main69220-32090-D0iSXV10,VCV10..NAP..LE..USA199109-199209

RED MICA M,3J9

sub69220-32090

sub69220-32091

main69220-32090-D1iSXV10,VCV10..NAP..LE..USA199109-199209

DARK WINE RED MICA,3K2

sub69220-32090

sub69220-32091

main69220-32090-E0iSXV10,VCV10..NAP..LE..USA199109-199209

BEIGE MICA M,4J1

sub69220-32090

sub69220-32091

main69220-32090-G0iSXV10,VCV10..NAP..LE..USA199109-199209

DARK GREEN MICA,6M1

sub69220-32090

sub69220-32091

main69220-32090-J0iSXV10,VCV10..NAP..LE..USA199109-199209

LIGHT BLUE MICA M,8G2

sub69220-32090

sub69220-32091

main69220-32090-J1iSXV10,VCV10..NAP..LE..USA199109-199209

DARK BLUE MICA,8J4

sub69220-32090

sub69220-32091

main69220-32090-K0iSXV10,VCV10..NAP..LE..USA199109-199209

GRAYISH PURPLE M,923

sub69220-32090

sub69220-32091

main69220-32091-A0iMCV10..NAP..(LE,SE)..USA199209-199408

SUPER WHITE 2,040

sub69220-32091

main69220-32091-A1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

SUPER WHITE 2,040

sub69220-32091

main69220-32091-B0iSXV10,VCV10..NAP..LE..USA199209-199309

SUPER SILVER 3M,176

sub69220-32091

main69220-32091-B3iSXV10..NAP..LE..USA199309-199408

BLUISH SILVER ME,1A0

sub69220-32091

main69220-32091-B6iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

BLUISH SILVER ME.,1A0

sub69220-32091

main69220-32091-C0iSXV10..NAP..DX199209-199408

BLACK,202

sub69220-32091

main69220-32091-C1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

BLACK,202

sub69220-32091

main69220-32091-D1iSXV10,VCV10..NAP..LE..USA199209-199309

DARK WINE RED MICA,3K2

sub69220-32091

main69220-32091-D2iSXV10..NAP..LE..USA199309-199408

SUPER RED 3,3J6

sub69220-32091

main69220-32091-D3iSXV10,VCV10..NAP..LE..USA199209-199408

RED MICA ME,3K4

sub69220-32091

main69220-32091-D4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

SU.RED 3,3J6

sub69220-32091

main69220-32091-D5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199508

RED MM,3K4

sub69220-32091

main69220-32091-D8iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199508-199607

MAGENTA MC.,3L3

sub69220-32091

main69220-32091-E0iSXV10,VCV10..NAP..LE..USA199209-199309

BEIGE MICA ME,4J1

sub69220-32091

main69220-32091-E4iSXV10..NAP..DX199309-199408

BEIGE ME,4M9

sub69220-32091

main69220-32091-E5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

BEIGE ME.,4M9

sub69220-32091

main69220-32091-G0iMCV10..NAP..(LE,SE)..USA199209-199408

DARK GREEN ME,6M1

sub69220-32091

main69220-32091-G2iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199508

DK GREEN MICA,6M1

sub69220-32091

main69220-32091-G3iMCV10..NAP..(LE,SE)..USA199309-199408

GREENISH SILVER ME,6L3

sub69220-32091

main69220-32091-G4iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

GREENISH SILVER M.M,6L3

sub69220-32091

main69220-32091-G5iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199508-199607

DK.GREEN M.M.,6P2

sub69220-32091

main69220-32091-J1iSXV10,VCV10..NAP..LE..USA199209-199309

DARK BLUE MICA,8J4

sub69220-32091

main69220-32091-J2iSXV10..NAP..LE..USA199209-199408

LT.BLUE MICA ME,8J6

sub69220-32091

main69220-32091-J5iSXV10..NAP..LE..USA199309-199408

DK BLUE M.M,8K0

sub69220-32091

main69220-32091-J7iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

DK.BLUE M.M.,8K0

sub69220-32091

main69220-32091-K0iSXV10..NAP..LE..USA199209-199408

GRAYISH PUPLE ME,923

sub69220-32091

main69220-32091-K1iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE)199408-199607

GRAYISH PURPLE M,923

sub69220-32091

main69220-32091-K2iMCV10,SXV10..NAP..SED..LE199512-199607

DARK TAUPE MCOP,927

sub69220-32091

main69220-33010-A0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

SUPER WHITE 2,040

sub69220-33011

main69220-33010-B0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

SUPER SILVER 3 M,176

sub69220-33011

main69220-33010-C0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

BLACK,202

sub69220-33011

main69220-33010-D0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

RED MICA M,3J9

sub69220-33011

main69220-33010-D1iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

DARK WINE RED MICA,3K2

sub69220-33011

main69220-33010-E0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

BEIGE MICA M,4J1

sub69220-33011

main69220-33010-G0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

DARK GREEN MICA,6M1

sub69220-33011

main69220-33010-J0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

LIGHT BLUE MICA M,8G2

sub69220-33011

main69220-33010-J1iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

DARK BLUE MICA M,8J4

sub69220-33011

main69220-33010-K0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199109-199209

GRAYISH PURPLE M,923

sub69220-33011

main69220-33011-A0iMCV10..NAP..CND199209-199408

SUPER WHITE 2,040

sub69220-33011

main69220-33011-A2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

SUPER WHITE 2,040

sub69220-33011

main69220-33011-B0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199209-199309

SUPER SILVER 3M,176

sub69220-33011

main69220-33011-B4iMCV10..NAP..(CP,WG)..CND199309-199408

BLUISH SILVER ME,1A0

sub69220-33011

main69220-33011-B5iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

BLUISH SILVER ME.,1A0

sub69220-33011

main69220-33011-C0iSXV10..NAP..LE..CND199209-199408

BLACK,202

sub69220-33011

main69220-33011-C1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

BLACK,202

sub69220-33011

main69220-33011-D1iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199209-199309

DARK WINE RED MICA,3K2

sub69220-33011

main69220-33011-D2iMCV10,SXV10..NAP..XLE199309-199408

SUPER RED 3,3J6

sub69220-33011

main69220-33011-D3iMCV10,SXV10,VCV10..NAP..XLE199209-199408

RED MICA ME,3K4

sub69220-33011

main69220-33011-D4iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

SU.RED 3,3J6

sub69220-33011

main69220-33011-D5iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199508

RED MM,3K4

sub69220-33011

main69220-33011-D7iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199508-199607

MAGENTA MC.,3L3

sub69220-33011

main69220-33011-E0iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199209-199309

BEIGE MICA M,4J1

sub69220-33011

main69220-33011-E5iMCV10,SXV10..NAP..XLE199309-199408

BEIGE ME,4M9

sub69220-33011

main69220-33011-E6iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

BEIGE ME.,4M9

sub69220-33011

main69220-33011-G0iVCV10..NAP..CND199209-199408

DARK GREEN MICA,6M1

sub69220-33011

main69220-33011-G1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199508

DK GREEN MICA,6M1

sub69220-33011

main69220-33011-G3iMCV10..NAP..(CP,WG)..CND199309-199408

GREENISH SILVER ME,6L3

sub69220-33011

main69220-33011-G4iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

GREENISH SILVER M.M,6L3

sub69220-33011

main69220-33011-G5iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199508-199607

DK. GREEN M.M,6P2

sub69220-33011

main69220-33011-J1iSXV10,VCV10..NAP..XLE;SXV10,VCV10..NAP..LE..CND199209-199309

DARK BLUE MICA M,8J4

sub69220-33011

main69220-33011-J2iVCV10..NAP..CND199209-199408

LT.BLUE MICA M,8J6

sub69220-33011

main69220-33011-J5iMCV10..NAP..SED..CND199309-199408

DK BLUE M.M,8K0

sub69220-33011

main69220-33011-J6iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

DK.BLUE M.M.,8K0

sub69220-33011

main69220-33011-K0iMCV10,SXV10,VCV10..NAP..XLE199209-199408

GRAYISH PURPLE M,923

sub69220-33011

main69220-33011-K1iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..WG..CND199408-199607

GRAYISH PURPLE M,923

sub69220-33011

main69220-33011-K2iMCV10,SXV10..NAP..XLE199512-199607

DARK TAUPE MCOP,927

sub69220-33011

main69220-33020iSXV10,VCV10..NAP..(DX,SE)199109-199212

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-06010-B0iMCV10,SXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main69277-06010-E0iSXV10,VCV10..NAP..SED199209-199607

OAK,TRIM4#

main69277-06010-J0iSXV10,VCV10..NAP..WG199109-199309

DARK BLUE,TRIM8#

main69277-06010-K0iSXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main69277-32060-E0iSXV10,VCV10..NAP199209-199212

OAK,TRIM4#

sub69277-32060

main69277-32060-K0iSXV10,VCV10..NAP..SED199109-199212

TAUPE,TRIM9#

sub69277-32060

main69277-32060-S4iSXV10,VCV10..NAP199109-199212

MEDIUM GRAY,TRIM1#

sub69277-32060

main69277-32060-W3iSXV10,VCV10..NAP199109-199212

DARK BLUE,TRIM8#

sub69277-32060

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-06010-B0iSXV10,VCV10..NAP..SED199109-199607

MEDIUM GRAY,TRIM1#

main69278-06010-E0iMCV10,SXV10,VCV10..NAP199209-199607

OAK,TRIM4#

main69278-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main69278-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

main69278-32050-E0iSXV10,VCV10..NAP199209-199212

OAK,TRIM4#

sub69278-32050

main69278-32050-K0iSXV10,VCV10..NAP..SED199109-199212

TAUPE,TRIM9#

sub69278-32050

main69278-32050-S4iSXV10,VCV10..NAP199109-199212

MEDIUM GRAY,TRIM1#

sub69278-32050

main69278-32050-W3iSXV10,VCV10..NAP199109-199212

DARK BLUE,TRIM8#

sub69278-32050

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-06010iMCV10,SXV10..NAP199109-199607

RH

main69293-06020iSXV10,VCV10..NAP..(DX,SE)199109-199607

LH

main69293-12050iSXV10..NAP..DX..USA;MCV10,SXV10..NAP..(LE,SE,XLE)199109-199607

RH

main69293-12060iSXV10,VCV10..NAP..(LE,XLE)199109-199607

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-06010iSXV10..NAP..(SED,WG)..DX..USA199203-199607

W(*PW)

main69030-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)..(LE,XLE)199109-199408

main69030-AA010iMCV10..NAP..CP..SE;SXV10..NAP..CP..DX..CND199309-199607

W(*PW)

main69310-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)..(DX,SE)199109-199607

main69310-AA010iMCV10,SXV10..NAP..CP..(DX,SE)199309-199607

69320LOCK ASSY, FRONT DOOR, LH

main69040-06010iSXV10..NAP..(SED,WG)..DX..USA199203-199607

W(*PW)

main69040-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)..(LE,XLE)199109-199408

main69040-AA010iMCV10,SXV10..NAP..CP..LE199309-199607

W(*PW)

main69320-06010iMCV10,SXV10..NAP..(SED,WG)..DX199109-199607

main69320-AA010iSXV10..NAP..CP..DX199309-199607

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

RH

main69759-24020iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main69410-AA010iMCV10,SXV10..NAP..CP199309-199607

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main69711-AA010iMCV10,SXV10..NAP..CP199309-199607

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main69712-AA010iMCV10,SXV10..NAP..CP199309-199607

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-33020iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main69725-AA010iMCV10,SXV10..NAP..CP199309-199607

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69725-AA010iMCV10,SXV10..NAP..CP199309-199607

main69726-33020iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010iMCV10,SXV10,VCV10..NAP199109-199607

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iMCV10,SXV10..NAP..(SED,WG)199109-199607

GREEN

main69759-24060iMCV10,SXV10..NAP..(SED,WG)199109-199607

GRAY

main69759-AA010iMCV10,SXV10..NAP..CP199309-199607

GREEN

main69759-AA020iMCV10,SXV10..NAP..CP199309-199607

GRAY

main69759-AA030iMCV10,SXV10..NAP..CP199309-199607

YELLOW

main69759-AA040iMCV10,SXV10..NAP..CP199309-199607

BROWN

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-03020iMCV10,SXV10,VCV10..NAP199109-199607

LH

main69759-06030iMCV10,SXV10,VCV10..NAP199109-199607

RH

sub69759-24070

main69759-14050iSXV10,VCV10..NAP199109-199212

LH

main69759-24070iSXV10,VCV10..NAP199109-199212

RH

9010506082

main90105-06082

9015180012

main90151-80012

9015960081

main90159-60081

9015960356

main90159-60356

9017906070

main90179-06070

9018906125

main90189-06125

9046704014

main90467-04014

9046706106

main90467-06106

9046708117

main90467-08117

31 parts on this diagram · 2 diagrams in section
