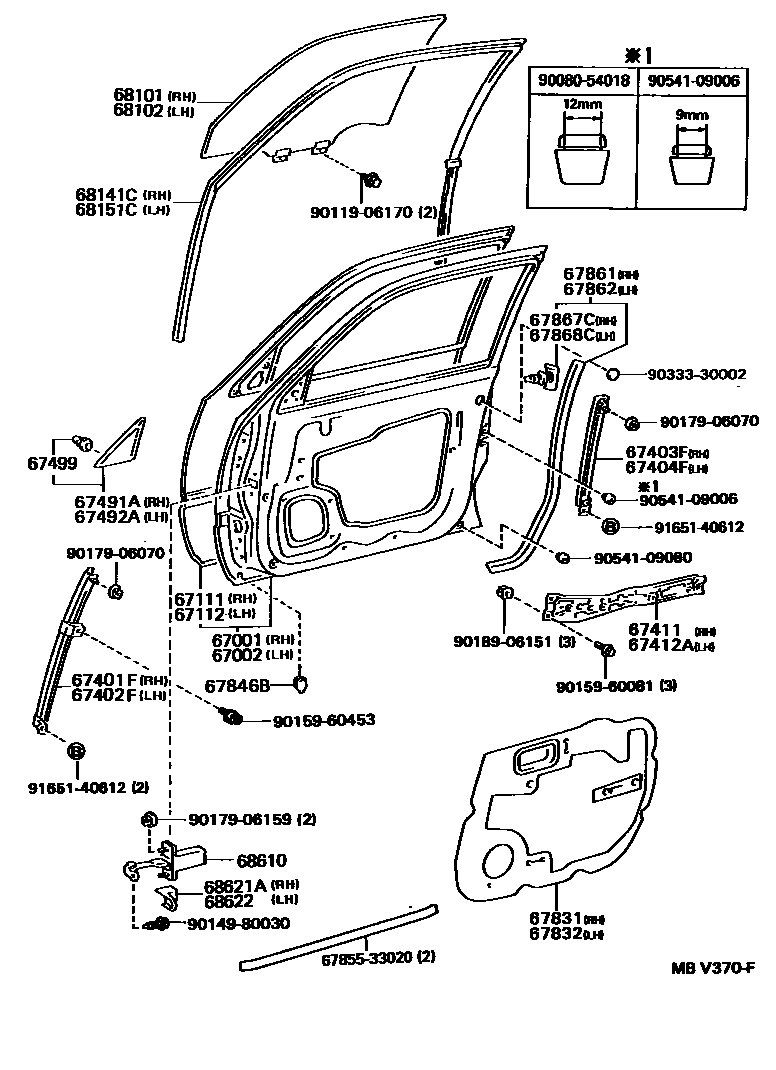

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06010iSXV10,VCV10..NAP199109-199309

sub67001-06020

main67001-06011iMCV10,SXV10..NAP..(SED,WG)199309-199408

sub67001-33031

main67001-06012iMCV10,SXV10..NAP..(SED,WG)199408-199607

main67001-AA010iMCV10,SXV10..NAP..CP199309-199607

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06010iSXV10,VCV10..NAP199109-199309

sub67002-06020

main67002-06011iMCV10,SXV10..NAP..(SED,WG)199309-199408

sub67002-06012

main67002-06012iMCV10,SXV10..NAP..(SED,WG)199408-199607

main67002-AA010iMCV10,SXV10..NAP..CP199309-199607

67111PANEL, FRONT DOOR, OUTER RH

main67111-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199408

sub67111-06011

main67111-06011iMCV10,SXV10..NAP..(SED,WG)199408-199607

main67111-AA010iMCV10,SXV10..NAP..CP199309-199607

67112PANEL, FRONT DOOR, OUTER LH

main67112-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199408

sub67112-06011

main67112-06011iMCV10,SXV10..NAP..(SED,WG)199408-199607

main67112-AA010iMCV10,SXV10..NAP..CP199309-199607

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06010iMCV10,SXV10,VCV10..NAP199109-199607

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06010iMCV10,SXV10,VCV10..NAP199109-199607

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main67403-AA010iMCV10,SXV10..NAP..CP199309-199607

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main67404-AA010iMCV10,SXV10..NAP..CP199309-199607

67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH

main67411-32040iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH

main67412-32040iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-06010iMCV10,SXV10..NAP..DX..CND199109-199607

main67491-33010iMCV10,SXV10..NAP..DX199309-199607

main67491-33010iVCV10..NAP..ATM..SE;SXV10..NAP..SED..ATM..DX199109-199309

TAIWAN SPEC

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-06010iMCV10..NAP..SED..SE199109-199607

main67492-33010iMCV10,SXV10..NAP..(DX,SE)..USA199309-199607

main67492-33010iVCV10..NAP..ATM..SE;SXV10..NAP..SED..ATM..DX199109-199309

TAIWAN SPEC

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-06010iMCV10,SXV10..NAP..(LE,SE,XLE)199109-199607

main67499-30020iVCV10..NAP..ATM..SE;SXV10..NAP..SED..ATM..DX199109-199309

TAIWAN SPEC

main67499-30020iMCV10,SXV10..NAP..DX199309-199607

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06020iMCV10,SXV10..NAP..(SED,WG)..DX199203-199607

W(POWER WINDOW)

main67831-06020iMCV10,SXV10..NAP..(SED,WG)..(LE,SE,XLE)199109-199607

main67831-06030iMCV10,SXV10..NAP..SED..DX199109-199607

main67831-AA010iSXV10..NAP..CP..DX199309-199607

main67831-AA020iSXV10..NAP..CP..DX199309-199607

W(POWER WINDOW)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06020iMCV10,SXV10..NAP..(SED,WG)..(LE,SE,XLE)199109-199607

main67832-06020iVCV10..NAP..SE;SXV10..NAP..DX..CND199203-199607

W(POWER WINDOW)

main67832-06030iMCV10,SXV10,VCV10..NAP..(SED,WG)..(DX,SE)199109-199607

main67832-AA010iSXV10..NAP..CP..DX199309-199607

main67832-AA020iMCV10,SXV10..NAP..CP..(LE,SE)199309-199607

W(POWER WINDOW)

67846BSUB-SHEET, FRONT DOOR SERVICE HOLE

main67845-32010iMCV10,SXV10..NAP199109-199607

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main67861-AA010iMCV10,SXV10..NAP..CP199309-199607

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main67862-AA010iMCV10,SXV10..NAP..CP199309-199607

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-06010iMCV10,SXV10..NAP..SED199109-199607

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-06010iMCV10,SXV10..NAP..SED199109-199607

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

*TT,T=4.0, GREEN

main68101-06020iMCV10,SXV10..NAP..(SED,WG)..(LE,XLE)..USA199109-199508

*TT,T=4.0, BRONZE

main68101-AA010iMCV10,SXV10..NAP..CP199309-199607

*TT,T=4.0,GREEN

main68101-AA020iMCV10,SXV10..NAP..CP..LE..USA199309-199508

*TT,T=4.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

*TT,T=4.0, GREEN

main68102-06020iSXV10,VCV10..NAP..XLE;MCV10..NAP..(SED,WG)..(LE,XLE);SXV10,VCV10..NAP..(SED,WG)..LE..CND199109-199508

*TT,T=4.0, BRONZE

main68102-AA010iMCV10,SXV10..NAP..CP199309-199607

*TT,T=4.0,GREEN

main68102-AA020iMCV10,SXV10..NAP..CP..LE..USA199309-199508

*TT,T=4.0,BRONZE

68141CRUN, FRONT DOOR GLASS, RH

main68141-06010iMCV10,SXV10..NAP..SED199304-199607

main68141-32090iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main68141-AA010iMCV10,SXV10..NAP..CP199309-199607

68151CRUN, FRONT DOOR GLASS, LH

main68151-06010iMCV10,SXV10,VCV10..NAP..SED199304-199607

main68151-32030iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main68151-AA010iMCV10,SXV10..NAP..CP199309-199607

68610CHECK ASSY, FRONT DOOR

main68610-06011iSXV10,VCV10..NAP199308-199607

RH

main68610-32060iSXV10,VCV10..NAP199109-199309

W(DOOR CHECK COVER),RH

main68610-33011iMCV10,SXV10..NAP..(SED,WG)199309-199607

RH

main68610-AA010iMCV10,SXV10..NAP..CP199309-199607

RH

main68620-06011iMCV10,SXV10..NAP..(SED,WG)199308-199607

LH

main68620-32040iSXV10,VCV10..NAP199109-199309

LH

main68620-33011iMCV10,SXV10..NAP..(SED,WG)199309-199607

LH

main68620-AA010iMCV10,SXV10..NAP..CP199309-199607

LH

68621ACOVER, FRONT DOOR CHECK, RH

main68621-32010iSXV10,VCV10..NAP199109-199309

sub68621-30020

68622COVER, FRONT DOOR CHECK, LH

main68622-32010iSXV10,VCV10..NAP199109-199309

sub68622-30020

6785533020COVER, DOOR OUTSIDE HANDLE SERVICE HOLE

main67855-33020

9008054018

main90080-54018

9011906170

main90119-06170

9014980030

main90149-80030

9015960081

main90159-60081

9015960453

main90159-60453

9017906070

main90179-06070

9017906159

main90179-06159

9018906151

main90189-06151

9033330002

main90333-30002

9054109006

main90541-09006

9054109080

main90541-09080

9165140612

main91651-40612

40 parts on this diagram · 3 diagrams in section
