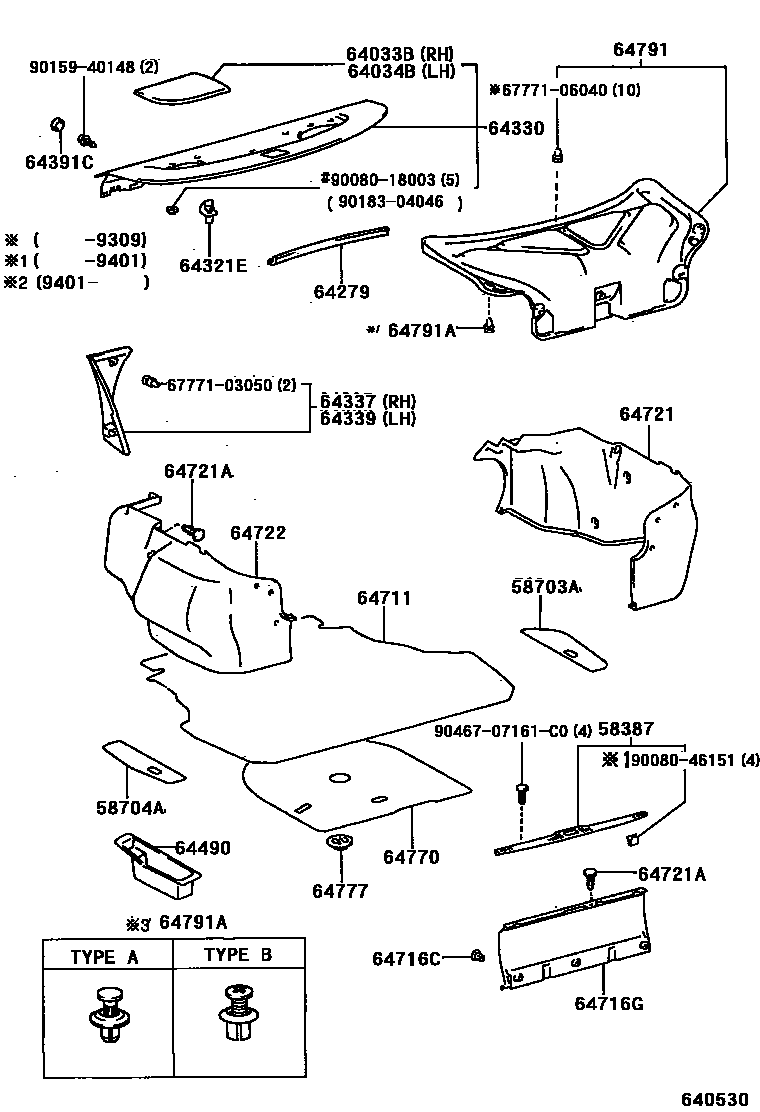

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-06010-C0iSXV10,VCV10..NAP..SED199109-199209

BLACK,TRIM1#,8#,9#

sub58387-06011

sub90467-07161

main58387-06010-C0iSXV10,VCV10..NAP..SED199209-199309

BLACK,TRIM1#,4#,8#,9#

sub58387-06011

sub90467-07161

main58387-06010-C0iMCV10,SXV10..NAP..(CP,SED)199309-199401

BLACK,TRIM1#,4#,9#

sub58387-06011

sub90467-07161

main58387-06011-C0iMCV10,SXV10..NAP..(CP,SED)199408-199607

BLACK,TRIM1#,4#,9#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)..(DX,SE)199109-199607

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-06020-B1iMCV10,SXV10..NAP..(CP,SED);VCV10..NAP..SED..(DX,LE,XLE)199109-199408

MEDIUM GRAY,TRIM1#

main64033-06020-E0iMCV10,SXV10..NAP..(CP,SED);VCV10..NAP..SED..(DX,LE,XLE)199209-199408

OAK,TRIM4#

main64033-06020-J1iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main64033-06020-K1iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

TAUPE,TRIM9#

main64033-06040-B0iMCV10,SXV10..NAP..(CP,SED)199408-199607

MD.GRAY,TRIM1#

main64033-06040-E0iMCV10,SXV10..NAP..(CP,SED)199408-199607

OAK,TRIM4#

main64033-06040-K0iMCV10,SXV10..NAP..(CP,SED)199408-199607

TAUPE,TRIM9#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-06020-B1iMCV10,SXV10..NAP..(CP,SED);VCV10..NAP..SED..(DX,LE,XLE)199109-199408

MEDIUM GRAY,TRIM1#

main64034-06020-E0iMCV10,SXV10..NAP..(CP,SED);VCV10..NAP..SED..(DX,LE,XLE)199209-199408

OAK,TRIM4#

main64034-06020-J1iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main64034-06020-K1iVCV10..NAP..SE199209-199408

TAUPE,TRIM9#

main64034-06040-B0iMCV10,SXV10..NAP..(CP,SED)199408-199607

MD.GRAY,TRIM1#

main64034-06040-E0iMCV10,SXV10..NAP..(CP,SED)199408-199607

OAK,TRIM4#

main64034-06040-K0iMCV10,SXV10..NAP..(CP,SED)199408-199607

TAUPE,TRIM9#

64279PROTECTOR, ROOM PARTITION

main64279-33010-C0iSXV10,VCV10..NAP..SED199109-199209

BLACK,TRIM1#,8#,9#

sub64279-33011

main64279-33010-C0iSXV10,VCV10..NAP..SED199209-199304

BLACK,TRIM1#,4#,8#,9#

sub64279-33011

main64279-33011-C0iSXV10,VCV10..NAP..SED..(DX,LE)199304-199307

BLACK,TRIM1#,4#,8#,9#

sub64279-33012

main64279-33011-C0iSXV10,VCV10..NAP..SED..(DX,LE)199304-199307

BLACK,TRIM1#,4#,9#

sub64279-33012

main64279-33012-C0iMCV10,SXV10..NAP..(CP,SED)199309-199408

BLACK,TRIM1#,4#,9#

sub64279-33012

main64279-33012-C0iSXV10,VCV10..NAP..SED199307-199309

BLACK,TRIM1#,4#,8#,9#

sub64279-33012

main64279-33012-C1iMCV10,SXV10..NAP..(CP,SED)199408-199607

BLACK,TRIM1#,4#,9#

sub64279-33012

64321EBRACKET, PACKAGE TRAY TRIM

main64321-32010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06030-B0iMCV10..NAP..SED..SE199309-199408

MEDIUM GRAY,TRIM1#,(L)

main64330-06030-B0iMCV10,SXV10..NAP..SED..LE..CND199402-199408

W(REAR SPOILER),MEDIUM GRAY,TRIM1#

main64330-06030-E0iMCV10..NAP..SED..SE199309-199408

OAK,TRIM4#,(L)

main64330-06030-E0iMCV10,SXV10..NAP..SED..LE..CND199402-199408

W(REAR SPOILER),OAK,TRIM4#

main64330-06030-J0iVCV10..NAP..SE199209-199309

DARK BLUE,TRIM8#,(L)

main64330-06030-K0iMCV10,SXV10..NAP..SED..LE..CND199402-199408

W(REAR SPOILER),TAUPE,TRIM9#

main64330-06030-K0iMCV10,VCV10..NAP..SED..SE199209-199408

TAUPE,TRIM9#,(L)

main64330-06031-B0iMCV10..NAP..SED..SE199408-199607

W(REAR SPOILER),MEDIUM GRAY,TRIM1#

main64330-06031-B0iMCV10..NAP..SED..SE199408-199607

MEDIUM GRAY,TRIM1#

main64330-06031-E0iMCV10,SXV10..NAP..SED..LE..CND199408-199607

OAK,TRIM4#

main64330-06031-E0iMCV10..NAP..SED..SE199408-199607

W(REAR SPOILER),OAK,TRIM4#

main64330-06031-K0iMCV10..NAP..SED..SE199408-199607

TAUPE,TRIM9#

main64330-06031-K0iMCV10..NAP..SED..SE199408-199607

W(REAR SPOILER),TAUPE,TRIM9#

main64330-06040-B0iMCV10,SXV10,VCV10..NAP..SED..(DX,LE,XLE)199109-199408

MEDIUM GRAY,TRIM1#,(L)

main64330-06040-E0iMCV10,SXV10,VCV10..NAP..SED..(DX,LE,XLE)199209-199408

OAK,TRIM4#,(L)

main64330-06040-J0iSXV10,VCV10..NAP..SED..(DX,LE,XLE)199109-199309

DARK BLUE,TRIM8#,(L)

main64330-06040-K0iMCV10,SXV10,VCV10..NAP..SED..(DX,LE,XLE)199109-199408

TAUPE,TRIM9#,(L)

main64330-06041-B0iMCV10,SXV10..NAP..SED..(DX,LE,XLE)199408-199607

MEDIUM GRAY,TRIM1#

main64330-06041-E0iMCV10,SXV10..NAP..SED..(DX,LE,XLE)199408-199607

OAK,TRIM4#

main64330-06041-K0iMCV10,SXV10..NAP..SED..(DX,LE,XLE)199408-199607

TAUPE,TRIM9#

main64330-33080-E0iMCV10..NAP..SED..SE199309-199311

OAK,TRIM4#,(J)

sub64330-33080

main64330-33080-K0iMCV10,VCV10..NAP..SED..SE199209-199311

TAUPE,TRIM9#,(J)

sub64330-33080

main64330-33080-S0iMCV10..NAP..SED..SE199309-199311

MEDIUM GRAY,TRIM1#,(J)

sub64330-33080

main64330-33080-W0iVCV10..NAP..SE199209-199309

DARK BLUE,TRIM8#,(J)

sub64330-33080

main64330-33090-E0iMCV10,SXV10,VCV10..NAP..SED..(DX,LE,XLE)199209-199311

OAK,TRIM4#,(J)

sub64330-33090

main64330-33090-K0iMCV10,SXV10,VCV10..NAP..SED..(DX,LE,XLE)199109-199311

TAUPE,TRIM9#,(J)

sub64330-33090

main64330-33090-S0iMCV10,SXV10,VCV10..NAP..SED..(DX,LE,XLE)199109-199311

MEDIUM GRAY,TRIM1#,(J)

sub64330-33090

main64330-33090-W0iSXV10,VCV10..NAP..SED..(DX,LE,XLE)199109-199309

DARK BLUE,TRIM8#,(J)

sub64330-33090

main64330-AA010-B0iMCV10,SXV10..NAP..CP..(DX,LE)199309-199408

MEDIUM GRAY,TRIM1#

main64330-AA010-E0iMCV10,SXV10..NAP..CP..(DX,LE)199309-199408

OAK,TRIM4#

main64330-AA010-K0iMCV10,SXV10..NAP..CP..(DX,LE)199309-199408

TAUPE,TRIM9#

main64330-AA020-B0iMCV10..NAP..CP..SE199309-199408

W(REAR SPOILER),MEDIUM GRAY,TRIM1#

main64330-AA020-B0iMCV10..NAP..CP..CND199309-199408

MEDIUM GRAY,TRIM1#

main64330-AA020-E0iMCV10..NAP..CP..CND199309-199408

OAK,TRIM4#

main64330-AA020-E0iSXV10..NAP..CP..LE..CND199309-199408

W(REAR SPOILER),OAK,TRIM4#

main64330-AA020-K0iMCV10..NAP..CP..SE199309-199408

TAUPE,TRIM9#

main64330-AA030-B0iMCV10,SXV10..NAP..CP..(DX,LE)199408-199607

MEDIUM GRAY,TRIM1#

main64330-AA030-E0iMCV10,SXV10..NAP..CP..(DX,LE)199408-199607

OAK,TRIM4#

main64330-AA030-K0iMCV10,SXV10..NAP..CP..(DX,LE)199408-199607

TAUPE,TRIM9#

main64330-AA040-B0iMCV10..NAP..CP..SE199408-199607

W(REAR SPOILER),MEDIUM GRAY,TRIM1#

main64330-AA040-B0iMCV10..NAP..CP..SE199408-199607

MEDIUM GRAY,TRIM1#

main64330-AA040-E0iMCV10..NAP..CP..SE199408-199607

OAK,TRIM4#

main64330-AA040-E0iMCV10..NAP..CP..SE199408-199607

W(REAR SPOILER),OAK,TRIM4#

main64330-AA040-K0iMCV10..NAP..CP..SE199408-199607

W(REAR SPOILER),TAUPE,TRIM9#

main64330-AA040-K0iSXV10..NAP..CP..LE..CND199408-199607

TAUPE,TRIM9#

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-06010-C0iMCV10,SXV10..NAP..(CP,SED)199309-199408

OFF BLACK,TRIM1#,4#,9#

main64337-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main64337-06011-C1iMCV10,SXV10..NAP..(CP,SED)199408-199607

BLACK,TRIM1#,4#,9#

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-06010-C0iMCV10,SXV10..NAP..(CP,SED)199309-199408

OFF BLACK,TRIM1#,4#,9#

main64339-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main64339-06011-C1iMCV10,SXV10..NAP..(CP,SED)199408-199607

BLACK,TRIM1#,4#,9#

64391CCAP

main90339-10005-B2iVCV10..NAP..SED199109-199411

MEDIUM GRAY,TRIM1#

sub90339-10005

main90339-10005-E0iSXV10..NAP..SED..MTM199209-199411

OAK,TRIM4#

sub90339-10005

main90339-10005-J3iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

sub90339-10005

main90339-10005-K1iSXV10..NAP..CP199109-199411

TAUPE,TRIM9#

sub90339-10005

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-06010-C0iSXV10,VCV10..NAP..SED..(LE,XLE)199209-199309

BLACK,TRIM1#,4#,8#,9#

main64490-06010-C0iSXV10,VCV10..NAP..SED..(LE,XLE)199109-199209

BLACK,TRIM1#,8#,9#

main64490-06010-C0iMCV10,SXV10..NAP..(CP,SED)..(LE,XLE)199309-199607

BLACK,TRIM1#,4#,9#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06010-C0iSXV10,VCV10..NAP..SED..DX199109-199209

BLACK,TRIM1#,8#,9#

main64711-06010-C0iMCV10,SXV10..NAP..(CP,SED)..(DX,SE)199309-199501

BLACK,TRIM1#,4#,9#

main64711-06011-C0iMCV10,SXV10..NAP..(CP,SED)..(DX,SE)199501-199607

BLACK,TRIM1#,4#,9#

main64711-06020-C1iMCV10,SXV10..NAP..(CP,SED)..(LE,XLE)199309-199501

OFF BLACK,TRIM1#,4#,9#

main64711-06020-C1iSXV10,VCV10..NAP..SED..(LE,XLE)199209-199309

OFF BLACK,TRIM1#,4#,8#,9#

main64711-06020-C1iSXV10,VCV10..NAP..SED..(LE,XLE)199109-199209

OFF BLACK,TRIM1#,8#,9#

main64711-06021-C1iMCV10,SXV10..NAP..(CP,SED)..(LE,XLE)199501-199607

BLACK,TRIM1#,4#,9#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05085-C2iMCV10,SXV10..NAP..(CP,SED)199309-199607

BLACK,TRIM1#,4#,9#

sub90467-05085

main90467-05085-C2iSXV10,VCV10..NAP..SED199209-199309

BLACK,TRIM1#,4#,8#,9#

sub90467-05085

main90467-05085-C2iSXV10,VCV10..NAP..SED199109-199209

BLACK,TRIM1#,8#,9#

sub90467-05085

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-06010-C1iSXV10,VCV10..NAP..SED199209-199309

OFF BLACK,TRIM1#,4#,8#,9#

main64716-06010-C1iMCV10,SXV10..NAP..(CP,SED)199310-199607

OFF BLACK,TRIM1#,4#,9#

main64716-06010-C1iSXV10,VCV10..NAP..SED199109-199209

OFF BLACK,TRIM1#,8#,9#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06010-C0iSXV10..NAP..(CP,SED)..MTM199309-199408

BLACK,TRIM1#,4#,9#

main64721-06010-C0iSXV10,VCV10..NAP..SED199109-199209

BLACK,TRIM1#,8#,9#

main64721-06010-C0iSXV10,VCV10..NAP..SED199209-199309

BLACK,TRIM1#,4#,8#,9#

main64721-06010-C1iMCV10,SXV10..NAP..(CP,SED)199408-199607

BLACK,TRIM1#,4#,9#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0iMCV10,SXV10..NAP..(CP,SED)199309-199607

BLACK,TRIM1#,4#,9#

sub90467-07042

sub90467-06175

main90467-07042-C0iSXV10,VCV10..NAP..SED199209-199309

BLACK,TRIM1#,4#,8#,9#

sub90467-07042

sub90467-06175

main90467-07042-C0iSXV10,VCV10..NAP..SED199109-199209

BLACK,TRIM1#,8#,9#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06010-C0iMCV10..NAP..(CP,SED)199309-199408

BLACK,TRIM1#,4#

main64722-06010-C0iMCV10..NAP..(CP,SED)199309-199408

BLACK,TRIM1#,4#,9#

main64722-06010-C0iSXV10,VCV10..NAP..SED199109-199209

BLACK,TRIM1#,8#,9#

main64722-06010-C0iSXV10,VCV10..NAP..SED199209-199309

BLACK,TRIM1#,4#,8#,9#

main64722-06010-C1iMCV10,SXV10..NAP..(CP,SED)199408-199607

BLACK,TRIM1#,4#,9#

64770COVER ASSY, SPARE WHEEL

main64770-06020iMCV10,SXV10..NAP..(CP,SED)..USA199408-199607

GRAND SPARE TIRE

main64770-06020iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

main64770-AA010iMCV10,SXV10..NAP..(CP,SED)..CND199408-199607

64777CLAMP, SPARE WHEEL COVER

main64777-32030iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64791COVER, BACK DOOR TRIM

main64791-06010-C1iSXV10,VCV10..NAP..SED199209-199309

OFF BLACK,TRIM1#,4#,8#,9#

sub64791-06011

sub90467-08076

main64791-06010-C1iSXV10,VCV10..NAP..SED..(LE,XLE)199109-199209

OFF BLACK,TRIM1#,8#,9#

sub64791-06011

sub90467-08076

main64791-06011-C1iSXV10..NAP..(CP,SED)..DX..USA;MCV10,SXV10..NAP..(CP,SED)..(LE,SE,XLE)199309-199607

OFF BLACK,TRIM1#,4#,9#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07059-22iSXV10,VCV10..NAP..SED199209-199309

BLACK,TRIM1#,4#,8#,9#

sub90467-07059

main90467-07059-22iMCV10,SXV10..NAP..(CP,SED)199310-199311

BLACK,TRIM1#,4#,9#,TYPE A

sub90467-07059

main90467-07059-22iSXV10,VCV10..NAP..SED..(LE,XLE)199109-199209

BLACK,TRIM1#,8#,9#

sub90467-07059

main90467-07146iMCV10,SXV10..NAP..(CP,SED)199311-199607

TYPE A

main90467-08076-C0iMCV10,SXV10..NAP..(CP,SED)199309-199607

BLACK,TRIM1#,4#,9#,TYPE B

sub90467-08076

6777103050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-03050

6777106040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-06040

9008018003

main90080-18003

9008046151

main90080-46151

9015940148

main90159-40148

9018304046

main90183-04046

9046707161C0

main90467-07161C0

29 parts on this diagram · 1 diagram in section
