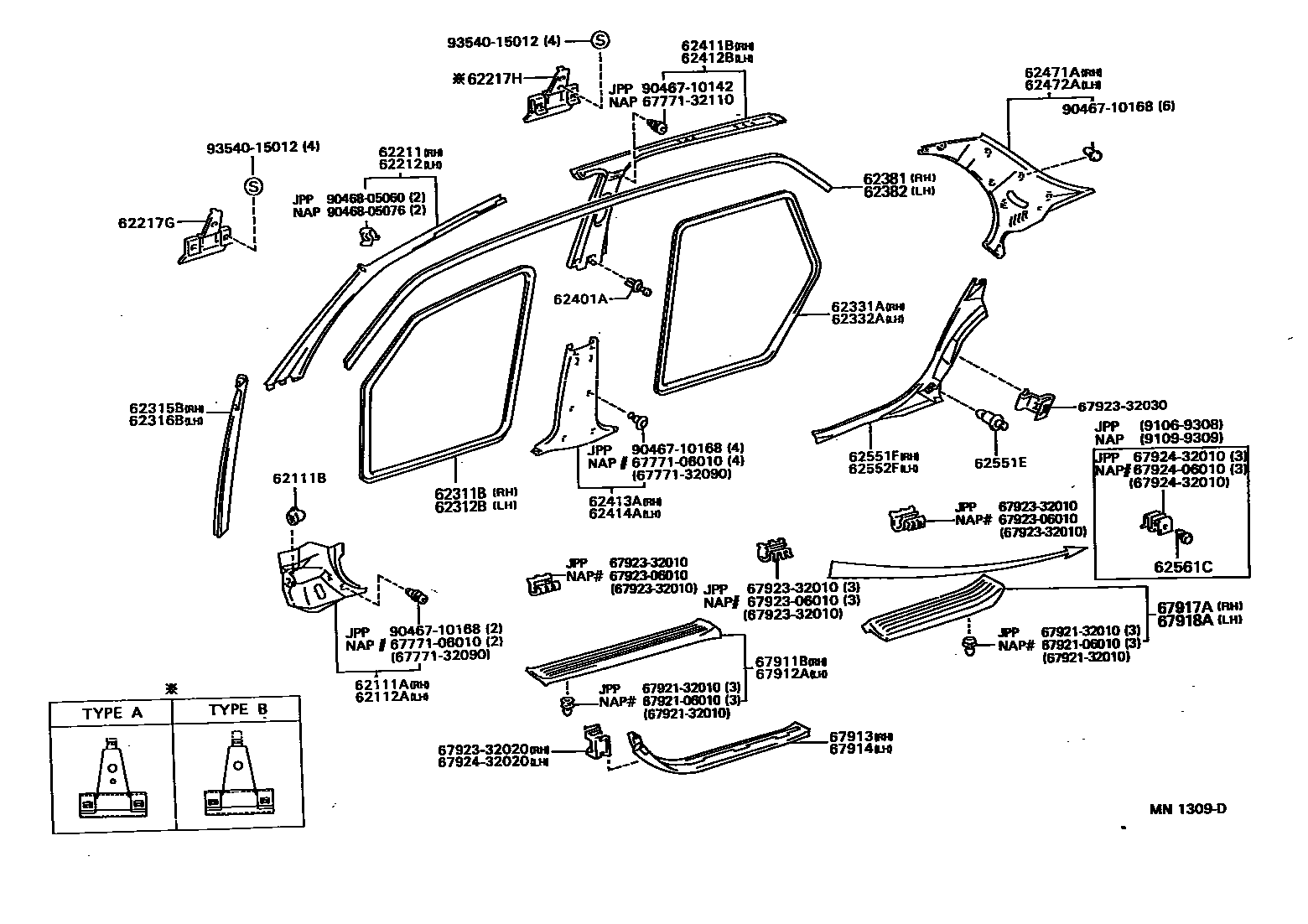

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06010-B0iMCV10,SXV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main62101-06010-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main62101-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62101-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06158-C0iMCV10,SXV10..NAP..WG199309-199607

BLACK,TRIM1#,4#

main90467-06158-C0iMCV10,SXV10..NAP..(CP,SED)199309-199607

BLACK,TRIM1#,4#,9#

main90467-08161iSXV10,VCV10..NAP199109-199309

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06010-B0iMCV10,SXV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main62102-06010-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main62102-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62102-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

62211GARNISH, FRONT PILLAR, RH

main62210-06010-B0iMCV10,SXV10..NAP..(SED,WG)199109-199607

MEDIUM GRAY,TRIM1#

main62210-06010-E0iMCV10,SXV10..NAP..(SED,WG)199209-199607

OAK,TRIM4#

main62210-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62210-06010-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62210-AA010-B0iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main62210-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main62210-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

62212GARNISH, FRONT PILLAR, LH

main62220-06010-B0iMCV10,SXV10..NAP..(SED,WG)199109-199607

MEDIUM GRAY,TRIM1#

main62220-06010-E0iMCV10,SXV10,VCV10..NAP..(SED,WG)199209-199607

OAK,TRIM4#

main62220-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62220-06010-K0iMCV10,SXV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62220-AA010-B0iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main62220-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main62220-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

62217GCLIP, FRONT PILLAR GARNISH

main62217-32030iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

62217HCLIP, CENTER PILLER GARNISH

main62217-32030iMCV10,SXV10,VCV10..NAP..WG199109-199607

main62217-32030iMCV10,SXV10,VCV10..NAP..SED199109-199408

TYPE B

main62217-32030iMCV10,SXV10..NAP..SED199408-199607

TYPE A

main62217-33020iMCV10,SXV10,VCV10..NAP..SED199109-199408

TYPE A

main62217-33020iMCV10,SXV10..NAP..SED199408-199607

TYPE B

main62217-AA010iMCV10,SXV10..NAP..CP199309-199607

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199602

main62311-33020iMCV10,SXV10..NAP..(SED,WG)199602-199607

main62311-AA010iMCV10,SXV10..NAP..CP199309-199607

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199602

main62312-33020iMCV10,SXV10..NAP..(SED,WG)199602-199607

main62312-AA010iMCV10,SXV10..NAP..CP199309-199607

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-06010-B0iMCV10,SXV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main62315-06010-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main62315-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62315-06010-K0iMCV10,SXV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-06010-B0iMCV10,SXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main62316-06010-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main62316-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62316-06010-K0iMCV10,SXV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-06010iMCV10,SXV10,VCV10..NAP..SED199109-199602

main62331-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main62331-33020iMCV10,SXV10..NAP..SED199602-199607

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-06010iMCV10,SXV10,VCV10..NAP..SED199109-199602

main62332-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main62332-33020iMCV10,SXV10..NAP..SED199602-199607

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main62381-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main62381-AA010iMCV10,SXV10..NAP..CP199309-199607

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main62382-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main62382-AA010iMCV10,SXV10..NAP..CP199309-199607

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07041-01iMCV10,SXV10..NAP..SED199309-199408

BLACK,TRIM1#,4#,9#

sub90467-07041

main90467-07041-01iSXV10,VCV10..NAP..WG199109-199209

BLACK,TRIM1#,8#

sub90467-07041

main90467-07041-01iSXV10,VCV10..NAP..WG199109-199209

BLACK,TRIM1#,8#,9#

sub90467-07041

main90467-07041-01iSXV10,VCV10..NAP..WG199209-199309

BLACK,TRIM1#,4#,8#

sub90467-07041

main90467-07041-01iMCV10,SXV10..NAP..WG199309-199408

BLACK,TRIM1#,4#

sub90467-07041

main90467-07041-C0iMCV10,SXV10..NAP..WG199408-199607

BLACK,TRIM1#,4#

sub90467-07041

main90467-07041-C0iMCV10,SXV10..NAP..WG199408-199607

BLACK,TRIM1#,4#,9#

sub90467-07041

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-06010-B0iSXV10,VCV10..NAP..SED199109-199607

MEDIUM GRAY,TRIM1#

main62410-06010-E0iMCV10,SXV10..NAP..SED199309-199607

OAK,TRIM4#

main62410-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main62410-06010-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62410-06020-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main62410-06020-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main62410-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-06010-B0iMCV10,SXV10..NAP..SED199109-199607

MEDIUM GRAY,TRIM1#

main62420-06010-E0iMCV10,SXV10..NAP..SED199309-199607

OAK,TRIM4#

main62420-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main62420-06010-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62420-06020-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main62420-06020-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main62420-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-06020-B0iSXV10,VCV10..NAP..WG199109-199607

MEDIUM GRAY,TRIM1#

main62413-06020-E0iMCV10,SXV10..NAP..(SED,WG)199209-199607

OAK,TRIM4#

main62413-06020-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62413-06020-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-06020-B0iSXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main62414-06020-E0iSXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main62414-06020-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main62414-06020-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-06010-B0iMCV10,SXV10..NAP..SED199109-199607

MEDIUM GRAY,TRIM1#

main62470-06010-E0iMCV10,SXV10..NAP..SED199209-199607

OAK,TRIM4#

main62470-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main62470-06010-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62470-06040-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main62470-06040-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main62470-06040-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main62470-06050-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

W(3RD SEAT),MEDIUM GRAY,TRIM1#

main62470-06050-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

W(3RD SEAT),OAK,TRIM4#

main62470-06050-J0iSXV10,VCV10..NAP..WG199203-199309

W(3RD SEAT),DARK BLUE,TRIM8#

main62470-AA010-B0iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main62470-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main62470-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-06010-B0iMCV10,SXV10,VCV10..NAP..SED199109-199607

MEDIUM GRAY,TRIM1#

main62480-06010-E0iMCV10,SXV10..NAP..SED199209-199607

OAK,TRIM4#

main62480-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main62480-06010-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62480-06040-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

sub62480-06040

main62480-06040-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

sub62480-06040

main62480-06040-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

sub62480-06040

main62480-06060-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

W(3RD SEAT),MEDIUM GRAY,TRIM1#

main62480-06060-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

W(3RD SEAT),OAK,TRIM4#

main62480-06060-J0iSXV10,VCV10..NAP..WG199203-199309

W(3RD SEAT),DARK BLUE,TRIM8#

main62480-AA010-B0iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main62480-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main62480-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-07108iMCV10,SXV10,VCV10..NAP..SED199109-199607

62551FGARNISH, REAR SEAT SIDE, RH

main62551-06010-B0iMCV10,SXV10,VCV10..NAP..SED199109-199607

MEDIUM GRAY,TRIM1#

main62551-06010-E0iMCV10,SXV10..NAP..SED199209-199607

OAK,TRIM4#

main62551-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main62551-06010-K0iMCV10,SXV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62551-06030-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main62551-06030-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main62551-06030-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-06010-B0iMCV10,SXV10,VCV10..NAP..SED199109-199607

MEDIUM GRAY,TRIM1#

main62552-06010-E0iMCV10,SXV10,VCV10..NAP..SED199209-199607

OAK,TRIM4#

main62552-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main62552-06010-K0iMCV10,SXV10..NAP..SED199109-199607

TAUPE,TRIM9#

main62552-06030-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

sub62552-06030

main62552-06030-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

sub62552-06030

main62552-06030-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

sub62552-06030

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-09066-B0iSXV10,VCV10..NAP..WG199209-199309

GRAY,TRIM1#,4#,8#

sub90467-09066

main90467-09066-B0iSXV10,VCV10..NAP..WG199203-199209

GRAY,TRIM1#,8#

sub90467-09066

main90467-11021-01iSXV10,VCV10..NAP..WG199209-199309

BLACK,TRIM1#,4#,8#

sub90467-11068

main90467-11021-01iSXV10,VCV10..NAP..WG199109-199209

BLACK,TRIM1#,8#

sub90467-11068

main90467-11021-01iSXV10,VCV10..NAP..WG199109-199209

BLACK,TRIM1#,8#,9#

sub90467-11068

main90467-11021-01iSXV10,VCV10..NAP..SED199209-199309

BLACK,TRIM1#,4#,8#,9#

sub90467-11068

main90467-11021-01iMCV10,SXV10..NAP..CP199310-199311

BLACK,TRIM1#,4#,9#

sub90467-11068

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main67911-AA010iMCV10,SXV10..NAP..CP199309-199607

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main67912-AA010iMCV10,SXV10..NAP..CP199309-199607

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06010-B0iMCV10,SXV10..NAP..(SED,WG)199109-199607

MEDIUM GRAY,TRIM1#

main67913-06010-E0iMCV10,SXV10,VCV10..NAP..(SED,WG)199209-199607

OAK,TRIM4#

main67913-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main67913-06010-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main67913-AA010-B0iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main67913-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main67913-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06010-B0iMCV10,SXV10..NAP..(SED,WG)199109-199607

MEDIUM GRAY,TRIM1#

main67914-06010-E0iMCV10,SXV10,VCV10..NAP..(SED,WG)199209-199607

OAK,TRIM4#

main67914-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main67914-06010-K0iMCV10,SXV10,VCV10..NAP..SED199109-199607

TAUPE,TRIM9#

main67914-AA010-B0iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main67914-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main67914-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

67917APLATE, REAR DOOR SCUFF, RH

main67915-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

67918APLATE, REAR DOOR SCUFF, LH

main67916-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

6777106010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-06010

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

6777132110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32110

6792106010RETAINER, FRONT DOOR SCUFF PLATE

main67921-06010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

6792306010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-06010

6792332010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-32010

6792332020CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-32020

6792332030CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-32030

6792406010CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-06010

6792432010CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-32010

6792432020CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-32020

9046710142

main90467-10142

9046710168

main90467-10168

9046805060

main90468-05060

9046805076

main90468-05076

9354015012

main93540-15012

49 parts on this diagram · 3 diagrams in section
