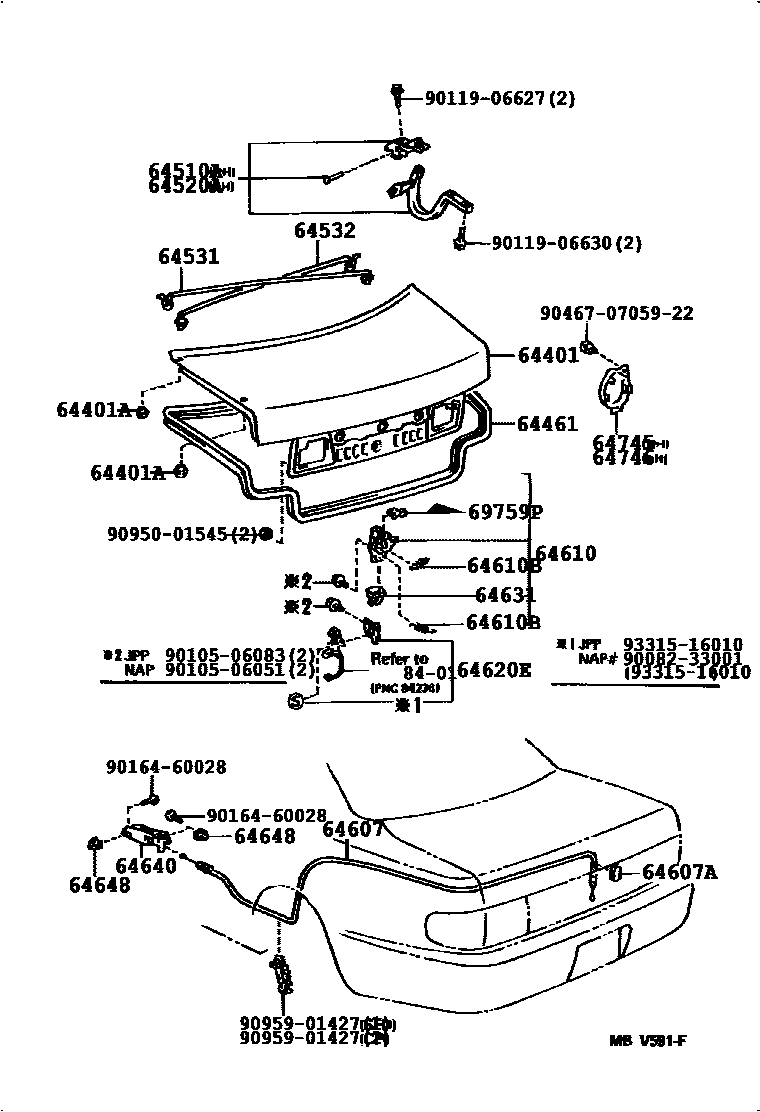

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06020iVCV10..NAP..SE199209-199308

sub64401-06021

main64401-06023iMCV10..NAP..SE199408-199607

W(REAR SPOILER)

main64401-06040iSXV10..NAP..SED..DX199109-199308

sub64401-06041

main64401-06041iSXV10..NAP..(CP,SED)..DX199109-199311

sub64401-06042

sub75447-06030

main64401-06042iMCV10,SXV10..NAP..(CP,SED)..(LE,XLE)199309-199408

sub64401-06043

main64401-06043iMCV10,SXV10..NAP..(CP,SED)..(DX,LE,XLE)199408-199607

main64401-06071iVCV10..NAP..SE199308-199309

sub64401-06072

sub75447-06030

main64401-06071iSXV10..NAP..CP..LE..CND199309-199311

W(REAR SPOILER)

sub64401-06072

sub75447-06030

main64401-06072iMCV10..NAP..SE199309-199408

SPORTS PACKAGE

sub64401-06023

main64401-06072iSXV10..NAP..(CP,SED)..LE..CND199311-199408

W(REAR SPOILER)

sub64401-06023

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06059iMCV10,SXV10..NAP..(CP,SED)199109-199607

FRONT

main90541-19002iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

REAR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

(L)

main64461-33010iSXV10,VCV10..NAP199109-199203

(J)

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)..(DX,LE,XLE)199109-199607

main64531-06020iMCV10,SXV10..NAP..(CP,SED)..LE..CND199309-199607

W(REAR SPOILER)

main64531-06020iMCV10,VCV10..NAP..SE199209-199607

main64531-06020iSXV10..NAP..(CP,SED)..LE..CND199408-199607

SPORTS PACKAGE

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)..(DX,LE,XLE)199109-199607

main64532-06020iMCV10,VCV10..NAP..SE199209-199607

main64532-06020iSXV10..NAP..(CP,SED)..LE..CND199309-199607

W(REAR SPOILER)

main64532-06020iSXV10..NAP..(CP,SED)..LE..CND199408-199607

SPORTS PACKAGE

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-06010iMCV10,SXV10..NAP..(CP,SED)199403-199607

(L)

main64607-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

(J)

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-18020iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64610BSPRING, TENSION(FOR LOCK)

main90080-50071iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

WD=2.0,CW=16.75

main90080-50072iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

WD=2.0,CW=17.25

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-06010-B0iMCV10,SXV10..NAP..(CP,SED)199109-199607

MEDIUM GRAY,TRIM1#

main64640-06010-E0iMCV10,SXV10..NAP..(CP,SED)199309-199607

OAK,TRIM4#

main64640-06010-J0iSXV10,VCV10..NAP..SED199109-199309

DARK BLUE,TRIM8#

main64640-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

main64648-AC010iMCV10,SXV10..NAP..(CP,SED)199408-199607

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-33010iSXV10,VCV10..NAP..SED..(DX,LE)199109-199607

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-33010iSXV10,VCV10..NAP..SED..(DX,LE)199109-199607

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

8401

9008233001

main90082-33001

9010506051

main90105-06051

9010506083

main90105-06083

9011906627

main90119-06627

9011906630

main90119-06630

9016460028

main90164-60028

904670705922

main90467-0705922

9095001545

main90950-01545

9095901427

main90959-01427

9331516010

main93315-16010

29 parts on this diagram · 1 diagram in section
