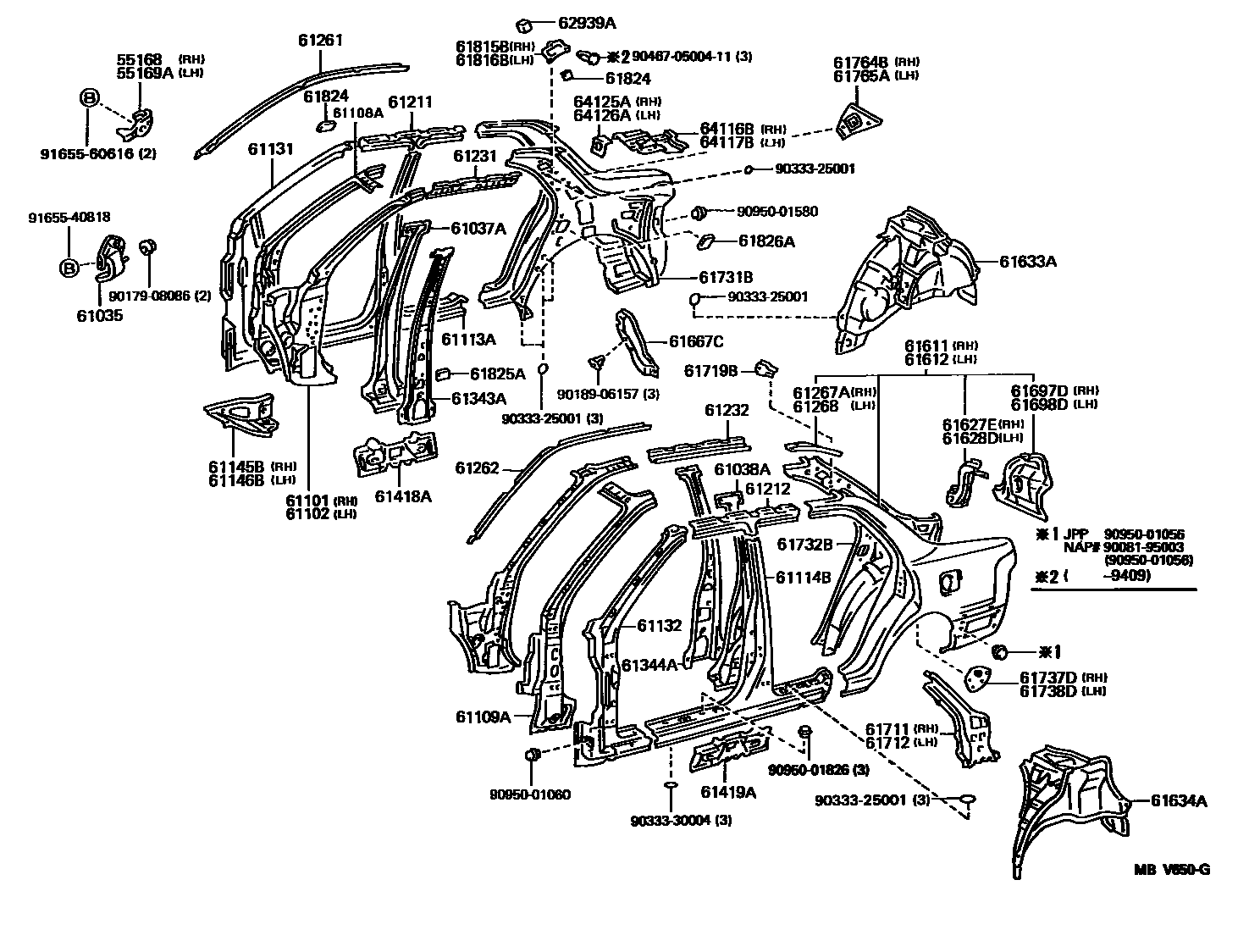

SIDE MEMBER

0001 1 0002 1 0003 1

55168BRACKET, FRONT FENDER MOUNTING, RH

main55168-32010iMCV10,SXV10,VCV10..NAP199109-199607

55169ABRACKET, FRONT FENDER MOUNTING, LH

main55169-32010iMCV10,SXV10,VCV10..NAP199109-199607

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-33010iMCV10,SXV10,VCV10..NAP199109-199607

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-33020iSXV10,VCV10..NAP199109-199309

sub61037-33060

main61037-33041iMCV10,SXV10..NAP..(SED,WG)199309-199405

sub61037-33080

main61037-33080iMCV10,SXV10..NAP..(SED,WG)199405-199607

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-33020iSXV10,VCV10..NAP199109-199309

sub61038-33060

main61038-33041iMCV10,SXV10..NAP..(SED,WG)199309-199405

sub61038-33080

main61038-33080iMCV10,SXV10..NAP..(SED,WG)199405-199607

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-06900iSXV10,VCV10..NAP199109-199301

sub61101-06902

main61101-06902iMCV10,SXV10,VCV10..NAP199301-199607

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-06900iVCV10..NAP..(DX,LE,XLE)199109-199301

sub61102-06903

main61102-06901iSXV10..NAP;VCV10..NAP..SE199109-199301

sub61102-06904

main61102-06903iMCV10,VCV10..NAP..(DX,LE,XLE)199301-199607

main61102-06904iSXV10..NAP;MCV10,VCV10..NAP..SE199301-199607

main61102-06904iMCV10..NAP..(CP,SED)..LE..CND199310-199607

SPORTS PACKAGE

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-06900iSXV10,VCV10..NAP199109-199309

main61108-06902iMCV10,SXV10..NAP..(SED,WG)199309-199607

main61108-06904iMCV10,SXV10..NAP..CP199309-199607

sub61108-06902

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-06900iSXV10,VCV10..NAP199109-199309

main61109-06901iMCV10,SXV10..NAP..CP199407-199607

main61109-06902iMCV10,SXV10..NAP..(SED,WG)199407-199607

sub61109-06903

main61109-06903iMCV10,SXV10..NAP..(SED,WG)199309-199407

main61109-06904iMCV10,SXV10..NAP..CP199309-199407

sub61109-06903

61113APANEL, SIDE, OUTER NO.2 RH

main61113-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61113-AA010iMCV10,SXV10..NAP..CP199309-199607

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61114-AA010iMCV10,SXV10..NAP..CP199309-199607

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61131-AA010iMCV10,SXV10..NAP..CP199309-199607

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61132-AA010iMCV10,SXV10..NAP..CP199309-199607

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-33010iMCV10,SXV10,VCV10..NAP199109-199607

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-33010iMCV10,SXV10,VCV10..NAP199109-199607

61211RAIL, ROOF SIDE, OUTER RH

main61211-06020iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61211-AA010iMCV10,SXV10..NAP..CP199309-199607

61212RAIL, ROOF SIDE, OUTER LH

main61212-06020iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61212-AA010iMCV10,SXV10..NAP..CP199309-199607

61231RAIL, ROOF SIDE, INNER RH

main61231-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61231-33010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61231-AA900iMCV10,SXV10..NAP..CP199309-199607

61232RAIL, ROOF SIDE, INNER LH

main61232-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61232-33010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61232-AA900iMCV10,SXV10..NAP..CP199309-199607

61261CHANNEL, ROOF DRIP, RH

main61261-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61261-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61261-AA010iMCV10,SXV10..NAP..CP199309-199607

61262CHANNEL, ROOF DRIP, LH

main61262-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61262-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61262-AA010iMCV10,SXV10..NAP..CP199309-199607

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61267-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61268-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

61343APILLAR, CENTER BODY, INNER RH

main61343-33010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199405

sub61343-33020

main61343-33020iMCV10,SXV10..NAP..(SED,WG)199405-199607

main61343-AA900iMCV10,SXV10..NAP..CP199309-199607

61344APILLAR, CENTER BODY, INNER LH

main61344-33010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199405

sub61344-33020

main61344-33020iMCV10,SXV10..NAP..(SED,WG)199405-199607

main61344-AA900iMCV10,SXV10..NAP..CP199309-199607

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61418-32020iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199408

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

main61419-32020iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199408

61611PANEL, QUARTER, RH

main61601-06011iMCV10,SXV10,VCV10..NAP..SED..DX199202-199607

main61601-06021iMCV10,SXV10..NAP..SED..DX..CND199402-199607

W(ANTENNA)

main61601-06021iMCV10,SXV10,VCV10..NAP..SED..(LE,SE,XLE)199202-199607

main61601-06030iMCV10,SXV10,VCV10..NAP..WG199203-199410

sub61601-06040

main61601-06040iMCV10,SXV10..NAP..WG199410-199607

main61601-06900iSXV10,VCV10..NAP..DX199109-199202

sub61601-06011

main61601-06901iSXV10,VCV10..NAP..(LE,XLE)199109-199202

sub61601-06021

main61601-AA010iSXV10..NAP..CP..DX199309-199607

main61601-AA020iMCV10,SXV10..NAP..CP..(LE,SE)199309-199607

main61601-AA020iSXV10..NAP..CP..DX..CND199309-199607

W(ANTENNA)

61612PANEL, QUARTER, LH

main61602-06011iMCV10,SXV10,VCV10..NAP..SED199202-199607

main61602-06020iSXV10..NAP..WG..DX199203-199410

sub61602-06040

main61602-06030iSXV10..NAP..WG..DX..CND199209-199408

W(ANTENNA)

sub61602-06050

main61602-06030iMCV10,SXV10,VCV10..NAP..WG..LE199203-199410

sub61602-06050

main61602-06040iSXV10..NAP..WG..DX199410-199508

main61602-06050iMCV10,SXV10..NAP..WG..LE199410-199607

main61602-06900iSXV10,VCV10..NAP199109-199202

sub61602-06011

main61602-AA010iMCV10,SXV10..NAP..CP199309-199607

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-06010iSXV10..NAP..CP..DX..CND199408-199607

W(ANTENNA)

main61627-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main61627-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61627-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

main61627-33010iMCV10,SXV10..NAP..CP199408-199607

W(ANTENNA)

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main61628-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61628-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-06030iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main61603-06900iMCV10,SXV10,VCV10..NAP..WG199203-199607

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-06030iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main61604-06900iMCV10,SXV10,VCV10..NAP..WG199203-199607

61667CSEAL, QAURTER PANEL, NO.1

main61667-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main61667-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

61697DHOUSING, QUARTER PANEL END, RH

main61697-06010iSXV10,VCV10..NAP199109-199111

main61697-06011iSXV10,VCV10..NAP199111-199202

sub61697-06012

main61697-06012iMCV10,SXV10,VCV10..NAP..(CP,SED)199202-199607

main61697-06012iSXV10..NAP..CP..DX..CND199408-199607

W(ANTENNA)

main61697-33010iSXV10,VCV10..NAP199109-199111

sub61697-33011

main61697-33011iSXV10,VCV10..NAP199111-199202

sub61697-33012

main61697-33012iMCV10,SXV10..NAP..CP199408-199607

W(ANTENNA)

main61697-33012iMCV10,SXV10,VCV10..NAP..(CP,SED)199202-199408

61698DHOUSING, QUARTER PANEL END, LH

main61698-06010iSXV10,VCV10..NAP199109-199111

main61698-06011iSXV10,VCV10..NAP199111-199202

sub61698-06012

main61698-06012iMCV10,SXV10,VCV10..NAP..(CP,SED)199202-199607

main61698-33010iSXV10,VCV10..NAP199109-199111

sub61698-33011

main61698-33011iSXV10,VCV10..NAP199111-199202

sub61698-33012

main61698-33012iMCV10,SXV10,VCV10..NAP..(CP,SED)199202-199607

61711PANEL, ROOF SIDE, OUTER RH

main61711-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61711-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61711-33010iMCV10,SXV10,VCV10..NAP..SED199109-199408

main61711-AA900iMCV10,SXV10..NAP..CP199309-199607

61712PANEL, ROOF SIDE, OUTER LH

main61712-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61712-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main61712-33010iMCV10,SXV10,VCV10..NAP..SED199109-199408

main61712-AA900iMCV10,SXV10..NAP..CP199309-199607

61719BBRACKET, ROOF SIDE, INNER

main61719-33010iMCV10,SXV10,VCV10..NAP..SED199109-199607

61731BPANEL, ROOF SIDE, INNER RH

main61731-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61731-06030iMCV10,SXV10,VCV10..NAP..WG199203-199607

61732BPANEL, ROOF SIDE, INNER LH

main61732-06010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61732-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-33010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61764-AA010iMCV10,SXV10..NAP..CP199309-199607

61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61765-33010iMCV10,SXV10,VCV10..NAP..SED199109-199607

main61765-AA010iMCV10,SXV10..NAP..CP199309-199607

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-33010iMCV10,SXV10,VCV10..NAP..SED199109-199408

sub61815-33030

main61815-33030iMCV10,SXV10..NAP..SED199408-199607

main61815-AA010iMCV10,SXV10..NAP..CP199309-199601

sub61815-AC020

main61815-AC020iMCV10,SXV10..NAP..CP199601-199607

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61815-33030iMCV10,SXV10..NAP..SED199408-199607

main61815-AC020iMCV10,SXV10..NAP..CP199601-199607

main61816-33010iMCV10,SXV10,VCV10..NAP..SED199109-199408

sub61815-33030

main61816-AA010iMCV10,SXV10..NAP..CP199309-199601

sub61815-AC020

61824PLATE, NOISE CONTROL, NO.1

main61824-06010iSXV10,VCV10..NAP..(DX,LE,SE)199109-199607

NO.2

main61824-06010iMCV10,SXV10..NAP..WG199408-199607

main61824-AA010iMCV10,SXV10..NAP..CP199309-199607

NO.1

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iSXV10,VCV10..NAP199109-199206

61826APLATE, NOISE CONTROL, NO.3

main61826-06010iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199607

62939ASILENCER, QUARTER VENT

main62939-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64116BREINFORCEMENT, UPPER BACK, RH

main64116-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64117BREINFORCEMENT, UPPER BACK, LH

main64117-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64125ABRACKET, UPPER BACK PANEL, RH

main64125-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

64126ABRACKET, UPPER BACK PANEL, LH

main64126-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

9008195003

main90081-95003

9017908086

main90179-08086

9018906157

main90189-06157

9033325001

main90333-25001

9033330004

main90333-30004

904670500411

main90467-0500411

9095001056

main90950-01056

9095001060

main90950-01060

9095001580

main90950-01580

9095001826

main90950-01826

9165540818

main91655-40818

9165560616

main91655-60616

67 parts on this diagram · 3 diagrams in section
