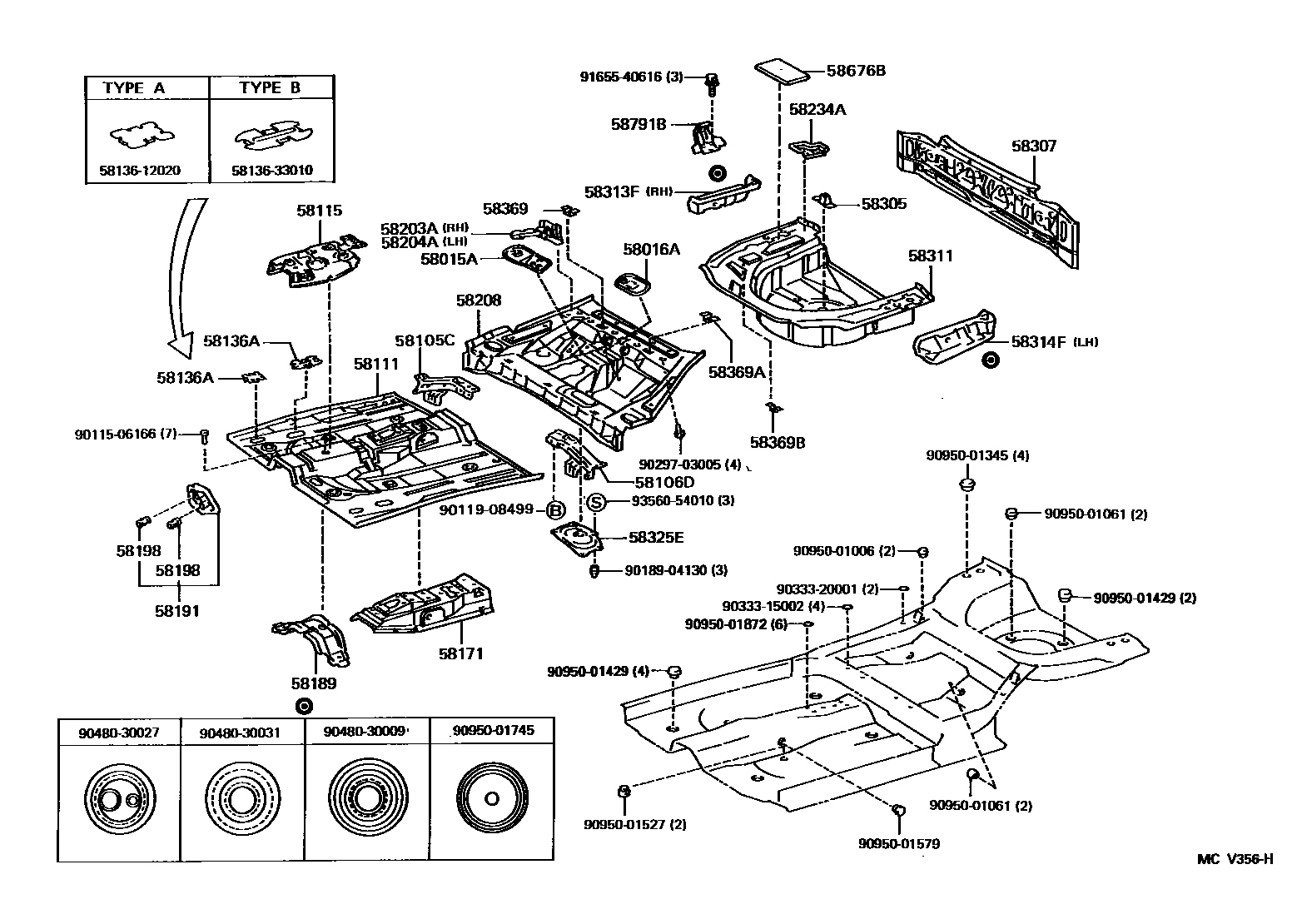

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-33010iMCV10,SXV10,VCV10..NAP199109-199607

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-33010iSXV10,VCV10..NAP199109-199309

main58016-33020iMCV10,SXV10..NAP199309-199607

58105CGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT RH

main58105-33010iMCV10,SXV10..NAP..(SED,WG)199309-199607

58106DGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT LH

main58106-33010iMCV10,SXV10..NAP..(SED,WG)199309-199607

58111PAN, FRONT FLOOR

main58111-06010iMCV10,SXV10,VCV10..NAP199109-199607

main58111-33010iMCV10,SXV10,VCV10..NAP199109-199607

sub58111-33030

sub90333-30002

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58013-33010iSXV10..NAP;MCV10,VCV10..NAP..SE199109-199408

sub58013-33020

main58013-33010iMCV10..NAP..(CP,SED)..CND199310-199408

SPORTS PACKAGE

sub58013-33020

main58013-33020iMCV10,SXV10..NAP199408-199607

main58103-33020iMCV10,VCV10..NAP..(DX,LE,XLE)199109-199408

sub58013-33020

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iMCV10,VCV10..NAP..(SED,WG)..(DX,LE,XLE)199109-199607

TYPE A

main58136-12020iMCV10..NAP..SED..CND199402-199408

SPORTS PACKAGE,TYPE A

main58136-33010iSXV10..NAP;MCV10..NAP..CP..LE;MCV10,VCV10..NAP..SE199109-199607

TYPE B

main58136-33010iMCV10..NAP..SED..CND199402-199408

SPORTS PACKAGE,TYPE B

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-33010iMCV10,SXV10,VCV10..NAP199109-199602

main58107-33040iMCV10,SXV10..NAP199602-199607

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-33010iMCV10,SXV10,VCV10..NAP199109-199607

58191FOOTREST, FRONT FLOOR

main58192-06010iMCV10,SXV10,VCV10..NAP199109-199607

58198CLIP, FOOTREST

main58198-06010iMCV10,SXV10,VCV10..NAP199109-199607

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

main58213-33010iMCV10,SXV10,VCV10..NAP..WG199203-199607

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

main58214-33010iMCV10,SXV10..NAP199203-199607

58208PAN, CENTER FLOOR

main58211-06010iSXV10,VCV10..NAP..SED199109-199309

sub58211-06050

sub90333-20001

main58211-06030iSXV10,VCV10..NAP..WG199203-199309

sub58211-06040

sub90333-20001

main58211-06040iMCV10,SXV10..NAP..WG199309-199607

sub58211-06050

main58211-06050iMCV10,SXV10..NAP..(CP,SED)199309-199607

main58211-33010iSXV10,VCV10..NAP..SED199109-199309

sub58211-33040

sub90333-20001

main58211-33040iMCV10,SXV10..NAP..(CP,SED)199309-199607

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-33010iMCV10,SXV10,VCV10..NAP199109-199408

main58234-41010iMCV10,SXV10..NAP199408-199607

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iMCV10,SXV10,VCV10..NAP199109-199607

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06010iSXV10,VCV10..NAP199109-199203

sub58307-06011

main58307-06011iMCV10,SXV10,VCV10..NAP..(CP,SED)199203-199311

main58307-06012iMCV10,SXV10..NAP..(CP,SED)199311-199607

main58307-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

58311PAN, REAR FLOOR

main58311-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main58311-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

W(3RD SEAT)

main58311-06030iMCV10,SXV10,VCV10..NAP..WG199203-199607

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main58305-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main58313-06020iMCV10,SXV10,VCV10..NAP..WG199203-199408

W(3RD SEAT)

main58313-06020iMCV10,SXV10..NAP..WG199408-199607

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main58314-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

main58314-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06010iMCV10,SXV10,VCV10..NAP199109-199607

sub58325-06011

58369BRACKET, INSULATOR HEAT

main58369-06010iMCV10,SXV10,VCV10..NAP199109-199607

58369ABRACKET, FUEL TUBE, NO.3

main58369-06010iMCV10,SXV10,VCV10..NAP199109-199607

58369BBRACKET, FUEL TUBE, NO.3

main58369-06010iMCV10,SXV10,VCV10..NAP199109-199607

58676BPAD, REAR FLOOR SILENCER, NO.1 RH

main58676-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199211-199607

main58676-33020iMCV10,SXV10..NAP..WG199309-199607

58791BCARRIER, JACK

main58791-32060iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main58791-33010iMCV10,SXV10,VCV10..NAP..WG199203-199607

5813612020COVER, FRONT FLOOR HOLE

main58136-12020

5813633010COVER, FRONT FLOOR HOLE

main58136-33010

9011506166

main90115-06166

9011908499

main90119-08499

9018904130

main90189-04130

9029703005

main90297-03005

9033315002

main90333-15002

9033320001

main90333-20001

9048030009

main90480-30009

9048030027

main90480-30027

9048030031

main90480-30031

9095001006

main90950-01006

9095001061

main90950-01061

9095001345

main90950-01345

9095001429

main90950-01429

9095001527

main90950-01527

9095001579

main90950-01579

9095001745

main90950-01745

9095001872

main90950-01872

9165540616

main91655-40616

9356054010

main93560-54010

47 parts on this diagram · 2 diagrams in section
