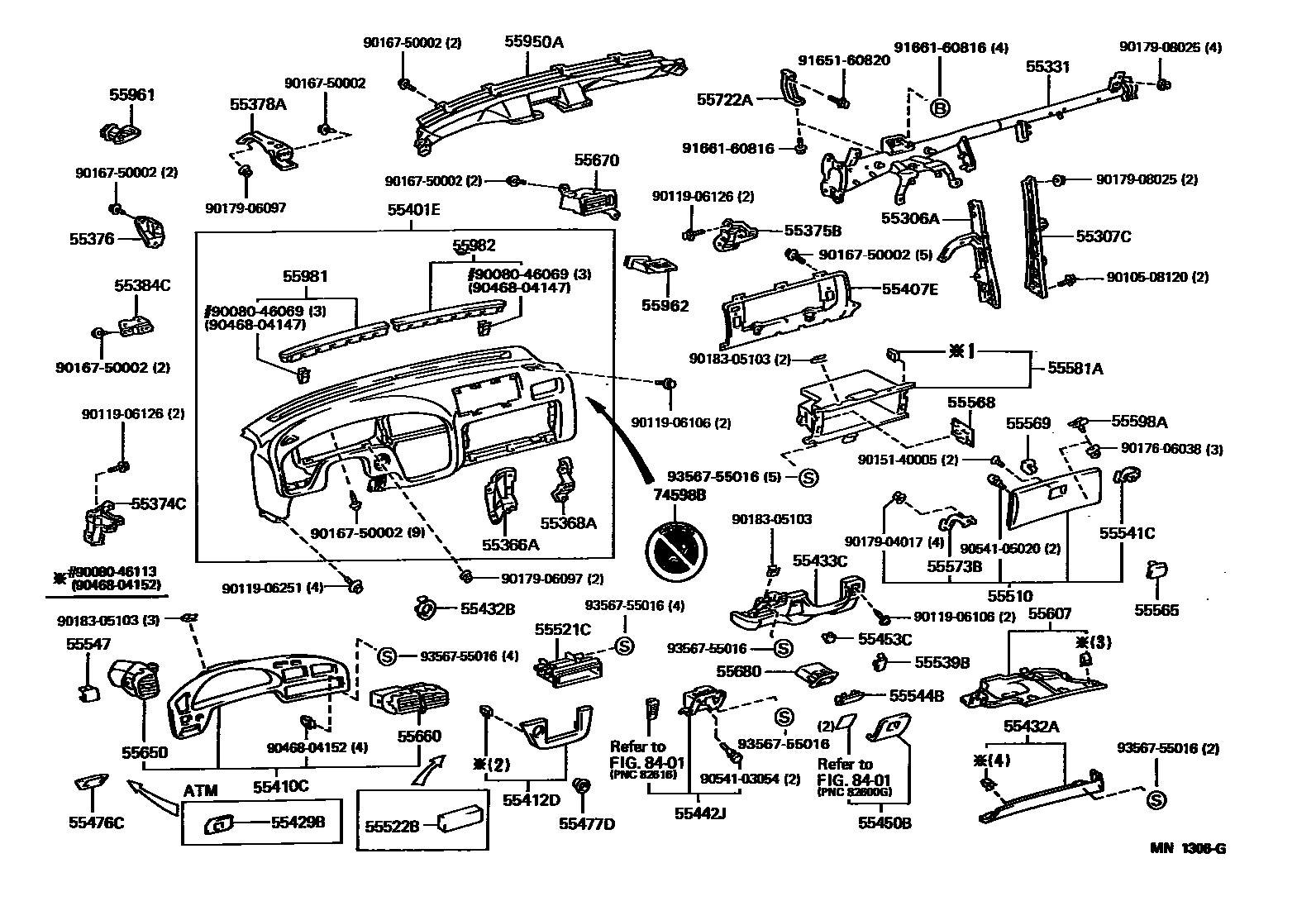

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-06010iMCV10,SXV10,VCV10..NAP199109-199607

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06010iMCV10,SXV10,VCV10..NAP199109-199607

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06010iSXV10,VCV10..NAP199109-199209

main55330-06011iSXV10,VCV10..NAP199209-199309

sub55330-06012

main55330-06012iSXV10..NAP..SED..ATM..USA199309-199408

TAIWAN PACKAGE & W/O(*80)

main55330-06030iSXV10..NAP199309-199607

main55330-06040iMCV10..NAP199309-199607

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-33010iMCV10,SXV10,VCV10..NAP199109-199607

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-06010iMCV10,SXV10,VCV10..NAP199109-199607

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-06010iMCV10,SXV10,VCV10..NAP199109-199607

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-06010iSXV10,VCV10..NAP199109-199309

main55375-06020iMCV10,SXV10..NAP199309-199607

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-06010iMCV10,SXV10,VCV10..NAP199109-199607

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55308-06010iSXV10,VCV10..NAP199109-199309

55384CBRACKET, FINISH PANEL MOUNTING, NO.4

main55384-06010iMCV10,VCV10..NAP..(DX,LE,XLE)199109-199607

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

main55401-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

main55401-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55401-06010-K0iSXV10,VCV10..NAP..SED199109-199309

TAUPE,TRIM9#

main55401-06020-B0iMCV10,SXV10..NAP199309-199607

MEDIUM GRAY,TRIM1#

main55401-06020-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

main55401-06020-K0iMCV10,SXV10..NAP..(CP,SED)199309-199607

TAUPE,TRIM9#

55407EINSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD

main55407-06010iMCV10,SXV10..NAP199309-199607

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-06010iMCV10,SXV10,VCV10..NAP199109-199401

sub55410-06011

main55410-06011iMCV10,SXV10..NAP199401-199607

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-06010iMCV10,SXV10,VCV10..NAP199109-199607

55429BPROTECTOR, INSTRUMENT CLUSTER FINISH PANEL

main55429-06010iMCV10,VCV10..NAP..(DX,LE,XLE)199109-199607

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55303-06010-B0iMCV10,SXV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main55303-06010-E0iMCV10,SXV10,VCV10..NAP199209-199607

OAK,TRIM4#

main55303-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55303-06010-K0iMCV10,SXV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55480-06010iMCV10,SXV10,VCV10..NAP199109-199607

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55403-06010-B0iSXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main55403-06010-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

main55403-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55403-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

55442JBEZEL, INSTRUMENT PANEL COIN BOX

main55442-33010iSXV10,VCV10..NAP199109-199309

sub55442-33050

main55442-33050iMCV10,SXV10..NAP199309-199607

55450BBOX ASSY, COIN

main55450-33010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

sub55450-33010

main55450-33010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

sub55450-33010

main55450-33010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

sub55450-33010

main55450-33010-K0iSXV10,VCV10..NAP..SED199109-199309

TAUPE,TRIM9#

sub55450-33010

main55450-33011-B0iMCV10..NAP;SXV10..NAP..CP..USA;SXV10..NAP..(SED,WG);SXV10..NAP..CP..LE..CND199309-199607

MEDIUM GRAY,TRIM1#

sub55450-33011

main55450-33011-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

sub55450-33011

main55450-33011-K0iMCV10,SXV10..NAP..(CP,SED)199309-199607

TAUPE,TRIM9#

sub55450-33011

55453CCOVER, INSTRUMENT PANEL SAFETY PAD, NO.2

main55453-06010-B0iSXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main55453-06010-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

main55453-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55453-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

55476CGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-06010iSXV10..NAP;MCV10,VCV10..NAP..SE199109-199607

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-06010iMCV10,SXV10,VCV10..NAP199109-199607

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

main55550-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

main55550-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55550-06010-K0iSXV10,VCV10..NAP..SED199109-199309

TAUPE,TRIM9#

main55550-06020-B0iMCV10,SXV10..NAP199309-199607

MEDIUM GRAY,TRIM1#

main55550-06020-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

main55550-06020-K0iMCV10,SXV10..NAP..(CP,SED)199309-199607

TAUPE,TRIM9#

55521CCOVER, STEREO OPENING

main55521-06010iSXV10,VCV10..NAP199109-199607

main55521-33010iSXV10..NAP..(CP,WG)..DX..USA199309-199607

W(DOOR)

sub55521-32011

55522BCOVER, RADIO TUNER OPENING

main55522-33010iSXV10..NAP..SED..ATM..DX199109-199408

sub61824-12100

main55522-33020iSXV10..NAP..CP..DX..USA199309-199408

sub55522-32030

sub90183-05094

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55479-06010-B0iSXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main55479-06010-E0iMCV10,SXV10..NAP199309-199607

OAK,TRIM4#

main55479-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55479-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

55541CARM, GLOVE COMPARTMENT HINGE, RH

main55541-33010iMCV10,SXV10,VCV10..NAP199109-199607

55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE

main55544-06010-B0iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199109-199408

MEDIUM GRAY,TRIM1#

main55544-06010-C0iMCV10,SXV10..NAP..(CP,SED)..DX199408-199607

BLACK,TRIM1#,4#

main55544-06010-C0iSXV10..NAP..WG..DX199408-199607

BLACK,TRIM1#,4#,9#

main55544-06010-E0iSXV10..NAP..DX199209-199408

OAK,TRIM4#

main55544-06010-J0iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199109-199309

DARK BLUE,TRIM8#

main55544-06010-K0iSXV10,VCV10..NAP..(CP,SED)..DX199203-199408

TAUPE,TRIM9#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-06010iMCV10,SXV10..NAP..DX199109-199607

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020-B0iSXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

sub55565-22020

sub55565-24010

main55565-22020-E1iSXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

sub55565-22020

sub55565-24010

main55565-22020-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

sub55565-22020

sub55565-24010

main55565-22020-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

sub55565-22020

sub55565-24010

55568PLATE, GLOVE COMPARTMENT DOOR PAD

main55568-24020iMCV10,SXV10..NAP199309-199607

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-B0iSXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

sub55569-22030

sub55569-24010

main55569-22030-E1iSXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

sub55569-22030

sub55569-24010

main55569-22030-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

sub55569-22030

sub55569-24010

main55569-22030-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

sub55569-22030

sub55569-24010

55573BARM, GLOVE COMPARTMENT DOOR CHECK, LH

main55542-33010iMCV10,SXV10,VCV10..NAP199109-199607

55581ACOMPARTMENT, GLOVE

main55581-06010iSXV10,VCV10..NAP199109-199309

main55581-06030iMCV10,SXV10..NAP199309-199607

55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE

main55598-33010iSXV10,VCV10..NAP199109-199309

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-06010iSXV10,VCV10..NAP199109-199309

main55607-06020iMCV10,SXV10..NAP199309-199607

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-06010iSXV10,VCV10..NAP199109-199607

main55650-33010iSXV10,VCV10..NAP199109-199210

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-06010iMCV10,SXV10,VCV10..NAP199109-199607

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

sub55670-06011

main55670-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

sub55670-06011

main55670-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

sub55670-06011

main55670-06010-K0iSXV10,VCV10..NAP..SED199109-199309

TAUPE,TRIM9#

sub55670-06011

main55670-AA010-B0iMCV10,SXV10..NAP199309-199401

MEDIUM GRAY,TRIM1#

main55670-AA010-E0iMCV10,SXV10..NAP199309-199401

OAK,TRIM4#

main55670-AA010-K0iMCV10,SXV10..NAP..(CP,SED)199309-199401

TAUPE,TRIM9#

main55670-AA011-B0iMCV10,SXV10..NAP199401-199607

MEDIUM GRAY,TRIM1#

main55670-AA011-E0iMCV10,SXV10..NAP199401-199607

OAK,TRIM4#

main55670-AA011-K0iMCV10,SXV10..NAP..(CP,SED)199401-199607

TAUPE,TRIM9#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-06010-B0iSXV10..NAP..ATM;VCV10..NAP..(LE,XLE)199109-199309

MEDIUM GRAY,TRIM1#

main55680-06010-C0iMCV10,SXV10..NAP..(CP,SED)..DX199309-199607

BLACK,TRIM1#,4#

main55680-06010-C0iMCV10,SXV10..NAP..(CP,SED)..DX199309-199607

BLACK,TRIM1#,4#,9#

main55680-06010-E0iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199209-199309

OAK,TRIM4#

main55680-06010-J0iVCV10..NAP..DX;SXV10..NAP..MTM199109-199309

DARK BLUE,TRIM8#

main55680-06010-K0iSXV10,VCV10..NAP..SED..(LE,SE,XLE)199109-199309

TAUPE,TRIM9#

main55680-33010-C0iSXV10..NAP..WG..DX199309-199607

BLACK,TRIM1#,4#,9#

sub55680-33010

main55680-33010-C0iSXV10..NAP..WG..DX199309-199508

BLACK,TRIM1#,4#

sub55680-33010

main55680-33010-E0iSXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND199209-199309

OAK,TRIM4#

sub55680-33010

main55680-33010-K0iSXV10,VCV10..NAP..SED..DX199109-199309

TAUPE,TRIM9#

sub55680-33010

main55680-33010-S4iVCV10..NAP..DX;SXV10..NAP..MTM199109-199309

MEDIUM GRAY,TRIM1#

sub55680-33010

main55680-33010-W3iVCV10..NAP..DX;SXV10..NAP..MTM199109-199309

DARK BLUE,TRIM8#

sub55680-33010

55722ABRACE, COWL TOP TO COWL, INNER NO.2

main55722-06010iMCV10,SXV10,VCV10..NAP199109-199607

main55722-33010iSXV10,VCV10..NAP199109-199210

55950ANOZZLE ASSY, DEFROSTER

main55950-06010iMCV10,SXV10..NAP199109-199607

main55950-33010iSXV10,VCV10..NAP199109-199210

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-06010-B0iMCV10,SXV10,VCV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main55961-06010-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main55961-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55961-06010-K0iMCV10,SXV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-06010-B0iMCV10,SXV10..NAP199109-199607

MEDIUM GRAY,TRIM1#

main55962-06010-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main55962-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main55962-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

TAUPE,TRIM9#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06010iMCV10,SXV10,VCV10..NAP199109-199607

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-06010iMCV10,SXV10,VCV10..NAP199109-199607

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-30040iMCV10,SXV10..NAP199508-199607

8401

9008046069

main90080-46069

9008046113

main90080-46113

9010508120

main90105-08120

9011906106

main90119-06106

9011906126

main90119-06126

9011906251

main90119-06251

9015140005

main90151-40005

9016750002

main90167-50002

9017606038

main90176-06038

9017904017

main90179-04017

9017906097

main90179-06097

9017908025

main90179-08025

9018305103

main90183-05103

9046804147

main90468-04147

9046804152

main90468-04152

9054103054

main90541-03054

9054105020

main90541-05020

9165160820

main91651-60820

9166160816

main91661-60816

9356755016

main93567-55016

69 parts on this diagram · 2 diagrams in section
