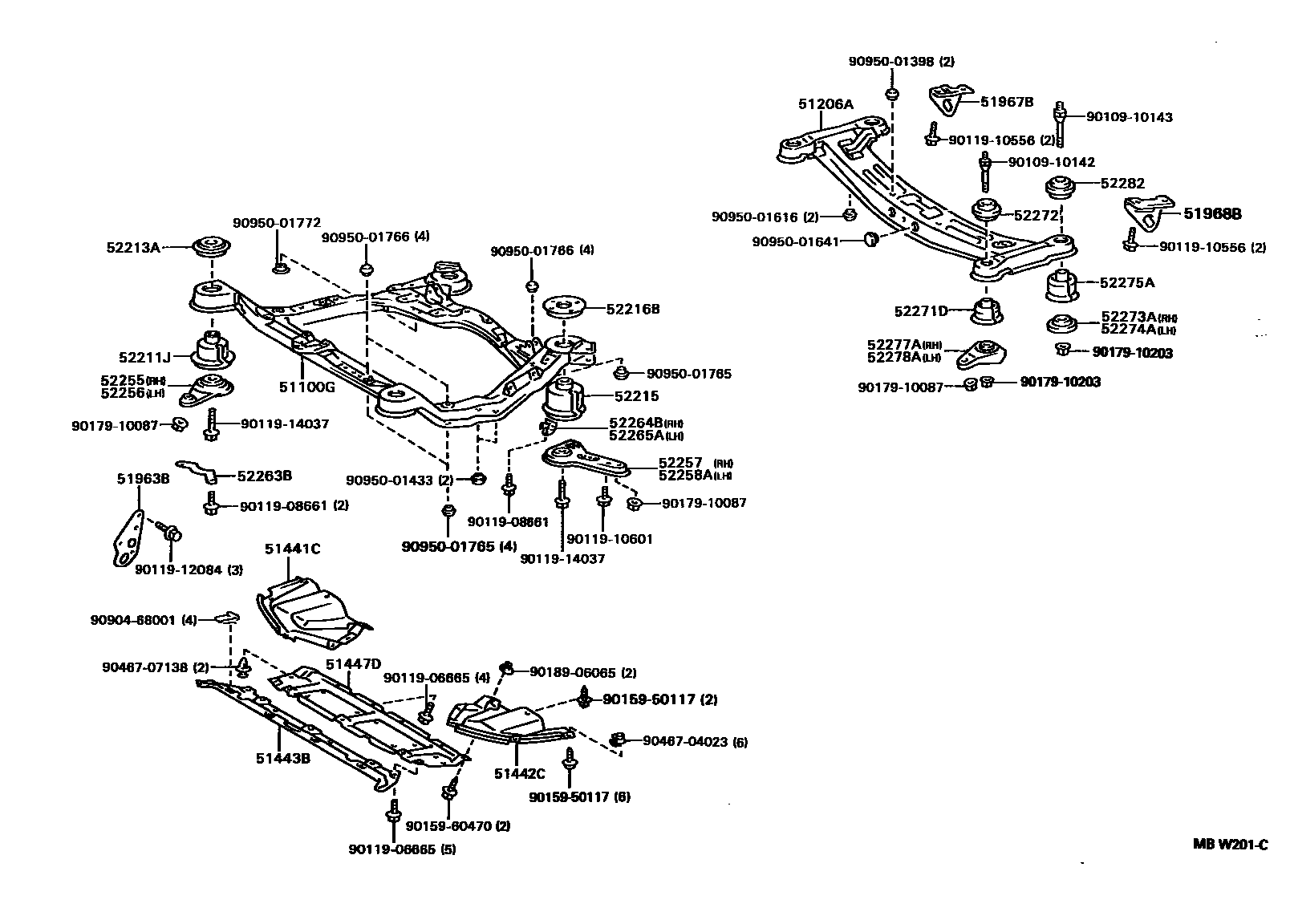

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-06010iMCV10,SXV10,VCV10..NAP199109-199607

sub51100-06020

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06010iMCV10,SXV10,VCV10..NAP199109-199408

sub51206-06011

main51206-06011iMCV10,SXV10..NAP199408-199607

51441CCOVER, ENGINE UNDER, RH

main51441-06010iMCV10,SXV10,VCV10..NAP199109-199607

51442CCOVER, ENGINE UNDER, LH

main51442-06010iMCV10,SXV10,VCV10..NAP199109-199607

51443BCOVER, ENGINE UNDER, NO.3

main51443-06010iMCV10,SXV10,VCV10..NAP199109-199607

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-06010iMCV10,SXV10,VCV10..NAP199109-199607

51963BHOOK, TRANSPORT, FRONT RH

main51963-33010iMCV10,SXV10,VCV10..NAP199109-199607

main51963-AC010iMCV10,SXV10..NAP199408-199607

51967BHOOK, TRANSPORT, REAR RH

main51967-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main51967-06020iSXV10..NAP..WG199203-199607

main51967-AA010iMCV10..NAP..(CP,SED)199408-199607

main51967-AC010iMCV10..NAP..WG199408-199607

51968BHOOK, TRANSPORT, REAR LH

main51968-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

main51968-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06010iSXV10..NAP..WG..MTM;SXV10..NAP..SED..MTM..USA;MCV10,SXV10,VCV10..NAP..ATM..(DX,LE,XLE)199202-199607

main52211-33010iSXV10,VCV10..NAP199109-199202

main52211-33030iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE

main52211-33030iMCV10..NAP..SE;SXV10..NAP..MTM199209-199607

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06010iMCV10,SXV10..NAP..ATM..(DX,LE,XLE)199202-199607

main52213-33010iSXV10,VCV10..NAP199109-199202

main52213-33030iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE

main52213-33030iSXV10..NAP..CP..MTM;MCV10,VCV10..NAP..SE;SXV10..NAP..SED..MTM..CND199209-199607

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06010iSXV10..NAP..WG..MTM;SXV10..NAP..SED..MTM..USA;MCV10,SXV10,VCV10..NAP..ATM..(DX,LE,XLE)199202-199607

main52215-33010iSXV10,VCV10..NAP199109-199202

main52215-33030iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE

main52215-33030iSXV10..NAP..CP..MTM;MCV10,VCV10..NAP..SE;SXV10..NAP..SED..MTM..CND199209-199607

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06010iMCV10,SXV10,VCV10..NAP199202-199607

main52216-33020iSXV10,VCV10..NAP199109-199202

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33010iMCV10,SXV10,VCV10..NAP199109-199607

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33010iMCV10,SXV10,VCV10..NAP199109-199607

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV10,SXV10..NAP199605-199607

main52257-33010iMCV10,SXV10,VCV10..NAP199109-199605

sub51023-33010

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV10,SXV10..NAP199605-199607

main52258-33010iMCV10,SXV10,VCV10..NAP199109-199605

sub51024-33010

52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1

main52263-33010iSXV10,VCV10..NAP199109-199308

52264BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.2

main52264-33010iSXV10,VCV10..NAP199109-199308

52265ARETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.3

main52265-33010iSXV10,VCV10..NAP199109-199308

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06010iSXV10,VCV10..NAP..(DX,LE,XLE)199209-199307

sub52271-06030

main52271-06030iMCV10,SXV10,VCV10..NAP..(DX,LE,XLE)199307-199607

main52271-32020iSXV10,VCV10..NAP199109-199209

sub52271-32050

main52271-33010iMCV10,VCV10..NAP..SE199209-199607

main52271-33010iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-33010iMCV10,VCV10..NAP..SE199209-199607

main52272-33010iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-32010iMCV10,SXV10,VCV10..NAP199109-199607

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-32010iMCV10,SXV10,VCV10..NAP199109-199607

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06010iSXV10,VCV10..NAP..(DX,LE,XLE)199209-199307

sub52275-06030

main52275-06030iMCV10,SXV10,VCV10..NAP..(DX,LE,XLE)199307-199607

main52275-32050iSXV10,VCV10..NAP199109-199209

main52275-33010iMCV10,VCV10..NAP..SE199209-199607

main52275-33010iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV10,SXV10,VCV10..NAP199109-199607

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV10,SXV10,VCV10..NAP199109-199607

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33010iMCV10,VCV10..NAP..SE199209-199607

main52282-33010iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE

9010910142

main90109-10142

9010910143

main90109-10143

9011906665

main90119-06665

9011908661

main90119-08661

9011910556

main90119-10556

9011910601

main90119-10601

9011912084

main90119-12084

9011914037

main90119-14037

9015950117

main90159-50117

9015960470

main90159-60470

9017910087

main90179-10087

9017910203

main90179-10203

9018906065

main90189-06065

9046704023

main90467-04023

9046707138

main90467-07138

9090468001

main90904-68001

9095001398

main90950-01398

9095001433

main90950-01433

9095001616

main90950-01616

9095001641

main90950-01641

9095001765

main90950-01765

9095001766

main90950-01766

9095001772

main90950-01772

51 parts on this diagram · 1 diagram in section
