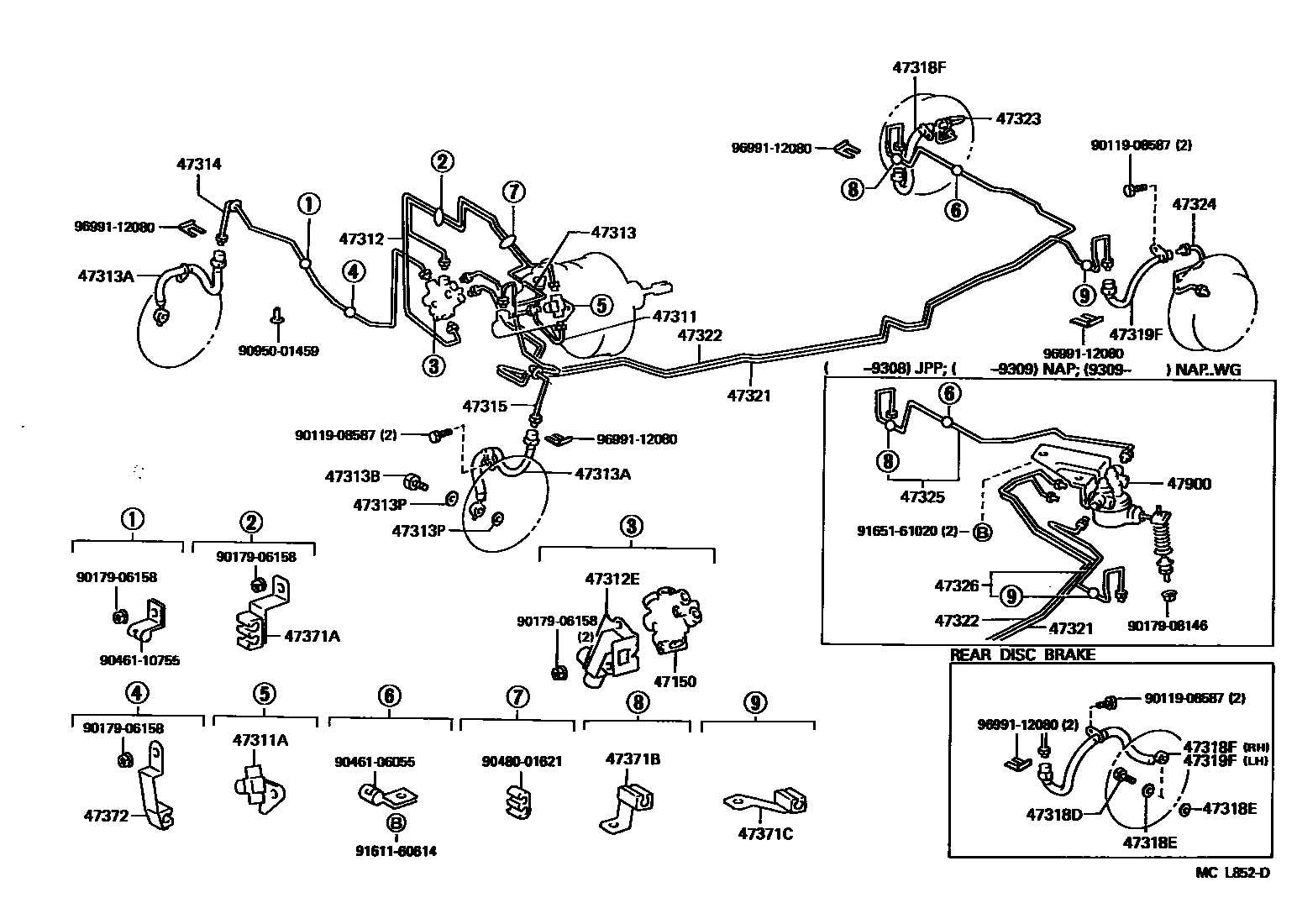

BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1W(ABS),AISIN 0004 1W(ABS),BOSCH

47150VALVE ASSY, PROPORTIONING

main47150-01030iMCV10,VCV10..NAP..(CP,SED)199109-199607

main47150-02020iSXV10..NAP..(CP,SED)..(DX,LE)199109-199607

sub47150-16050

main47150-20270iMCV10,SXV10..NAP..(CP,SED)199309-199607

W(*66)

main90412-10140iMCV10,SXV10..NAP..WG199109-199607

W(*66)

main90413-10205iMCV10,SXV10,VCV10..NAP..WG199203-199607

47311TUBE, FRONT BRAKE, NO.1

main47311-06010iSXV10,VCV10..NAP199109-199309

main47311-07010iMCV10,SXV10..NAP199408-199607

main47311-33010iSXV10,VCV10..NAP199109-199309

W(*66)

main47311-33010iMCV10,SXV10..NAP199309-199408

47311AWAY(FOR FRONT BRAKE TUBE)

main90080-41006iSXV10,VCV10..NAP199109-199309

main90412-10185iSXV10..NAP..ATM199109-199408

W(*66)

main90413-10261iSXV10..NAP..MTM199309-199408

main90904-12025iMCV10,SXV10..NAP..(DX,LE,SE)199408-199607

W(*66)

main90904-13011iMCV10,SXV10..NAP..(DX,LE,SE)199408-199607

47312TUBE, FRONT BRAKE, NO.2

main47312-06010iMCV10,SXV10,VCV10..NAP199109-199408

main47312-06050iMCV10,SXV10..NAP..(DX,LE,SE)199408-199508

main47312-06060iMCV10,SXV10..NAP..(DX,LE,SE)199508-199607

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10187iSXV10,VCV10..NAP199109-199309

main90904-12026iMCV10,SXV10..NAP199309-199607

47313TUBE, FRONT BRAKE, NO.3

main47313-06010iMCV10,SXV10,VCV10..NAP199109-199408

main47313-06050iMCV10,SXV10..NAP..(DX,LE,SE)199408-199508

main47313-06060iMCV10,SXV10..NAP..(DX,LE,SE)199508-199607

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02652iMCV10,SXV10,VCV10..NAP199109-199408

RH

sub90947-02734

main90947-02653iMCV10,SXV10,VCV10..NAP199109-199408

LH

sub90947-02736

main90947-02734iMCV10,SXV10..NAP199408-199607

RH

main90947-02736iMCV10,SXV10..NAP199408-199607

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iMCV10,SXV10,VCV10..NAP199109-199607

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iMCV10,SXV10,VCV10..NAP199109-199607

47314TUBE, FRONT BRAKE, NO.4

main47314-06010iMCV10,SXV10,VCV10..NAP199109-199607

47315TUBE, FRONT BRAKE, NO.5

main47315-06010iMCV10,SXV10,VCV10..NAP199109-199607

main47315-06020iSXV10,VCV10..NAP199109-199309

W(*66)

main47315-06050iMCV10,SXV10..NAP..XLE199309-199607

W(*66)

47318TUBE, FRONT BRAKE, NO.8

main47318-06010iSXV10,VCV10..NAP199109-199309

main47318-06030iMCV10,SXV10..NAP199309-199607

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iMCV10,SXV10,VCV10..NAP199109-199607

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iMCV10,SXV10,VCV10..NAP199109-199607

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94022iSXV10..NAP..(DX,LE)199402-199607

(L)

main90080-94023iSXV10..NAP..WG199402-199607

W(*66),(L)

main90080-94023iMCV10..NAP199402-199607

(L)

main90080-94023iMCV10..NAP199402-199408

W(*66 OR 3RD SEAT),(L)

main90947-02668iSXV10..NAP..WG199203-199212

W(*66 OR 3RD SEAT)

sub90947-02750

main90947-02668iSXV10..NAP..SED199109-199212

W(*66)

sub90947-02750

main90947-02670iSXV10..NAP199109-199212

sub90947-02752

main90947-02750iMCV10,VCV10..NAP199212-199607

(J)

main90947-02750iMCV10,VCV10..NAP199212-199607

W(*66),(J)

main90947-02750iMCV10,VCV10..NAP199212-199408

W(*66 OR 3RD SEAT),(J)

main90947-02752iSXV10..NAP199212-199607

(J)

47319TUBE, FRONT BRAKE, NO.9

main47319-06010iSXV10,VCV10..NAP199109-199309

main47319-06030iMCV10,SXV10..NAP199309-199607

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94020iSXV10..NAP..(CP,SED)199402-199607

W(*66),(L)

main90080-94020iSXV10..NAP..(CP,SED)199402-199408

W(*66 OR 3RD SEAT),(L)

main90080-94020iSXV10..NAP..WG199402-199607

(L)

main90080-94021iSXV10..NAP..(DX,LE)199402-199607

(L)

main90947-02669iSXV10..NAP..WG199203-199212

W(*66 OR 3RD SEAT)

sub90947-02751

main90947-02669iVCV10..NAP199109-199212

W(*66)

sub90947-02751

main90947-02671iSXV10..NAP199109-199212

sub90947-02753

main90947-02751iMCV10,VCV10..NAP199212-199607

W(*66),(J)

main90947-02751iMCV10,VCV10..NAP199212-199607

(J)

main90947-02751iMCV10,VCV10..NAP199212-199408

W(*66 OR 3RD SEAT),(J)

main90947-02753iSXV10..NAP..(DX,LE)199212-199607

(J)

47321TUBE, REAR BRAKE, NO.1

main47321-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

(L)

main47321-06020iSXV10,VCV10..NAP..SED199109-199309

W(*66),(L)

main47321-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

(L)

main47321-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199311

(J)

main47321-33030iSXV10,VCV10..NAP..SED199109-199309

W(*66),(J)

main47321-33030iMCV10,SXV10,VCV10..NAP..WG199203-199311

(J)

47322TUBE, REAR BRAKE, NO.2

main47322-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

(L)

main47322-06020iSXV10,VCV10..NAP..SED199109-199309

W(*66),(L)

main47322-06020iMCV10,SXV10,VCV10..NAP..WG199203-199607

(L)

main47322-33010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199311

(J)

main47322-33030iSXV10,VCV10..NAP..SED199109-199309

W(*66),(J)

main47322-33030iMCV10,SXV10,VCV10..NAP..WG199203-199311

(J)

47323TUBE, REAR BRAKE, NO.3

main47323-06010iVCV10..NAP199109-199309

W(*66)

main47323-06020iSXV10..NAP199109-199607

sub47323-06110

main47323-06040iMCV10..NAP199309-199607

W(*66)

47324TUBE, REAR BRAKE, NO.4

main47324-06010iVCV10..NAP199109-199309

W(*66)

main47324-06020iSXV10..NAP199109-199607

sub47324-06110

main47324-06040iSXV10..NAP..(DX,LE)199309-199607

W(*66)

47325TUBE, REAR BRAKE, NO.5

main47325-06010iMCV10,SXV10..NAP..WG199109-199607

47326TUBE, REAR BRAKE, NO.6

main47326-06010iSXV10,VCV10..NAP199109-199607

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33040iMCV10,SXV10..NAP..XLE199109-199607

W(*66)

main47372-50090iMCV10,SXV10,VCV10..NAP199109-199607

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iMCV10,SXV10,VCV10..NAP199109-199607

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iMCV10..NAP199109-199607

47372CLAMP, BRAKE TUBE, NO.2

main47371-33050iMCV10,SXV10..NAP..XLE199109-199607

W(*66)

main47371-33060iMCV10,SXV10..NAP..(DX,LE,SE)199109-199607

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-33030iSXV10..NAP..WG199203-199309

W(*66 OR 3RD SEAT)

main47900-33030iMCV10,VCV10..NAP..WG199203-199607

main47900-33060iMCV10..NAP..WG199309-199607

W(*66)

main47900-33060iSXV10..NAP..WG199203-199607

main47900-33080iSXV10,VCV10..NAP..SED199109-199309

9011908587

main90119-08587

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9046110755

main90461-10755

9048001621

main90480-01621

9095001459

main90950-01459

9161160614

main91611-60614

9165161020

main91651-61020

9699112080

main96991-12080
