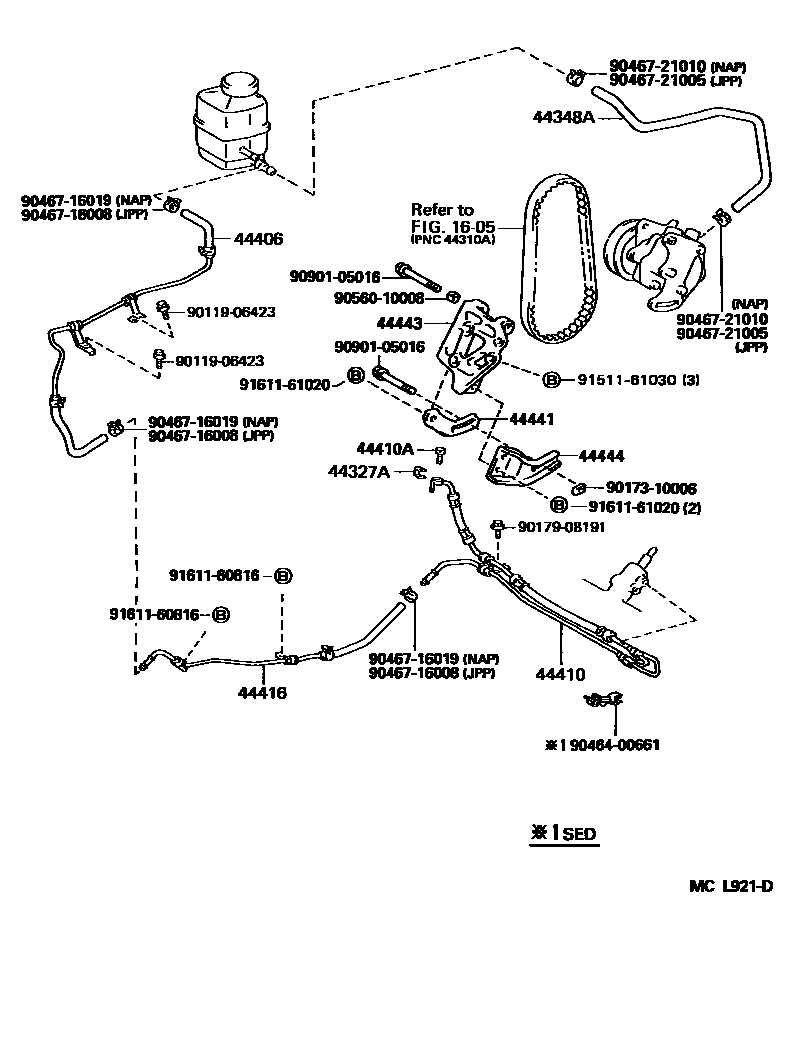

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCV10,SXV10..NAP199109-199607

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06080iSXV10..NAP199311-199607

main44348-06100iMCV10..NAP199311-199402

main44348-06140iMCV10..NAP199408-199607

KOYO

sub44348-06150

main44348-07010iMCV10..NAP199408-199607

TOYODA KOKI

main44348-33010iVCV10..NAP199109-199309

main44348-33051iSXV10..NAP199109-199203

main44348-33070iSXV10..NAP199203-199607

main44348-33090iMCV10..NAP..(LE,SE,XLE)199309-199409

44406TUBE SUB-ASSY, RETURN

main44406-06010iVCV10..NAP199109-199112

sub44406-06011

main44406-06011iVCV10..NAP199112-199308

sub44406-06012

main44406-06012iMCV10,VCV10..NAP199308-199408

main44406-06020iMCV10,SXV10..NAP..(DX,LE,SE)199408-199607

KOYO

main44406-06020iSXV10..NAP199109-199408

main44406-06030iMCV10,SXV10..NAP..(DX,LE,SE)199408-199607

W(*66),KOYO

main44406-06030iMCV10,SXV10..NAP..XLE199309-199607

W(*66)

main44406-06040iMCV10..NAP199309-199408

W(*66)

main44406-07010iMCV10..NAP..(DX,LE,SE)199408-199607

TOYODA KOKI

main44406-07020iMCV10..NAP..XLE199408-199607

W(*66),TOYODA KOKI

main44406-07020iMCV10..NAP..(DX,LE,SE)199408-199607

W(*66)

44410TUBE ASSY, PRESSURE FEED

main44410-06010iMCV10,VCV10..NAP199109-199607

KOYO

sub44410-06080

main44410-06021iSXV10..NAP199109-199203

main44410-06060iSXV10..NAP199203-199607

main44410-07010iMCV10..NAP199408-199607

TOYODA KOKI

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iMCV10,SXV10..NAP199109-199607

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06010iMCV10,SXV10,VCV10..NAP199109-199607

KOYO

main44416-07010iMCV10..NAP199408-199607

TOYODA KOKI

44441BRACKET, PUMP, FRONT

main44441-32010iSXV10..NAP199109-199203

44443BRACKET, PUMP

main44443-20050iSXV10..NAP199109-199203

main44443-33010iVCV10..NAP199109-199309

main44443-33020iSXV10..NAP199203-199607

main44443-33030iMCV10..NAP199309-199408

main44443-33040iMCV10..NAP199408-199607

sub44443-33041

44444STAY, PUMP, REAR

main44444-20030iSXV10..NAP199109-199203

9011906423

main90119-06423

9017310006

main90173-10006

9017908191

main90179-08191

9046400661

main90464-00661

9046716008

main90467-16008

9046716019

main90467-16019

9046721005

main90467-21005

9046721010

main90467-21010

9056010008

main90560-10008

9090105016

main90901-05016

9151161030

main91511-61030

9161160816

main91611-60816

9161161020

main91611-61020

23 parts on this diagram · 4 diagrams in section
