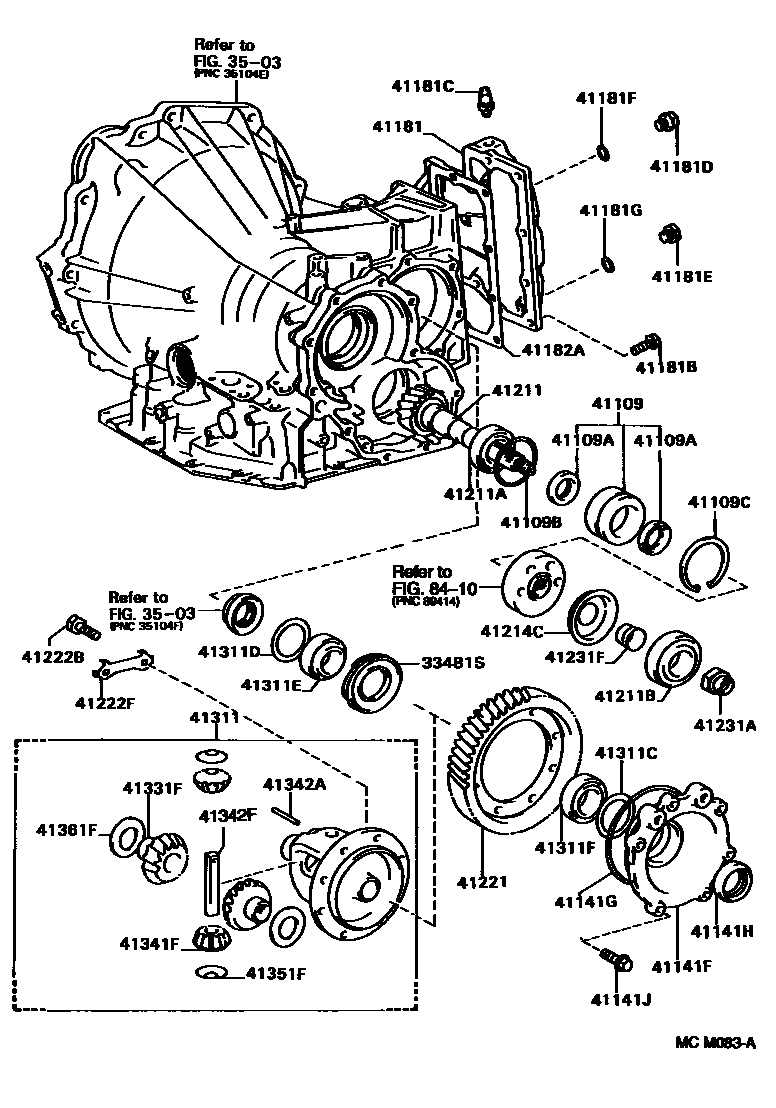

FRONT AXLE HOUSING & DIFFERENTIAL
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=27
N=35
33481SGEAR, SPEEDOMETER DRIVE (ATM)
3503
41109ASEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
41109BRING, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
41109CRING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE)
DRIVE PINION RH
DRIVE PINION LH
41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*8-1.25PX28-28
41181COVER, FRONT DIFFERENTIAL CARRIER
41181BBOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
*8-1.25PX29-24
41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41182AGASKET, DIFFERENTIAL CARRIER COVER
41211PINION, DIFFERENTIAL DRIVE
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231ANUT, DRIVE PINION LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.40,MARK 11
T=1.0
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.625
T=0.80,MARK FA
T=0.90,MARK FB
T=1.00,MARK FC
T=1.10,MARK FD
T=1.20,MARK FE
T=1.30,MARK FF
T=1.40,MARK FG
T=0.80
T=0.90
T=1.00
T=1.10
T=1.20
T=1.30
T=1.40
T=1.725
T=1.825
8410
40 parts on this diagram · 5 diagrams in section
