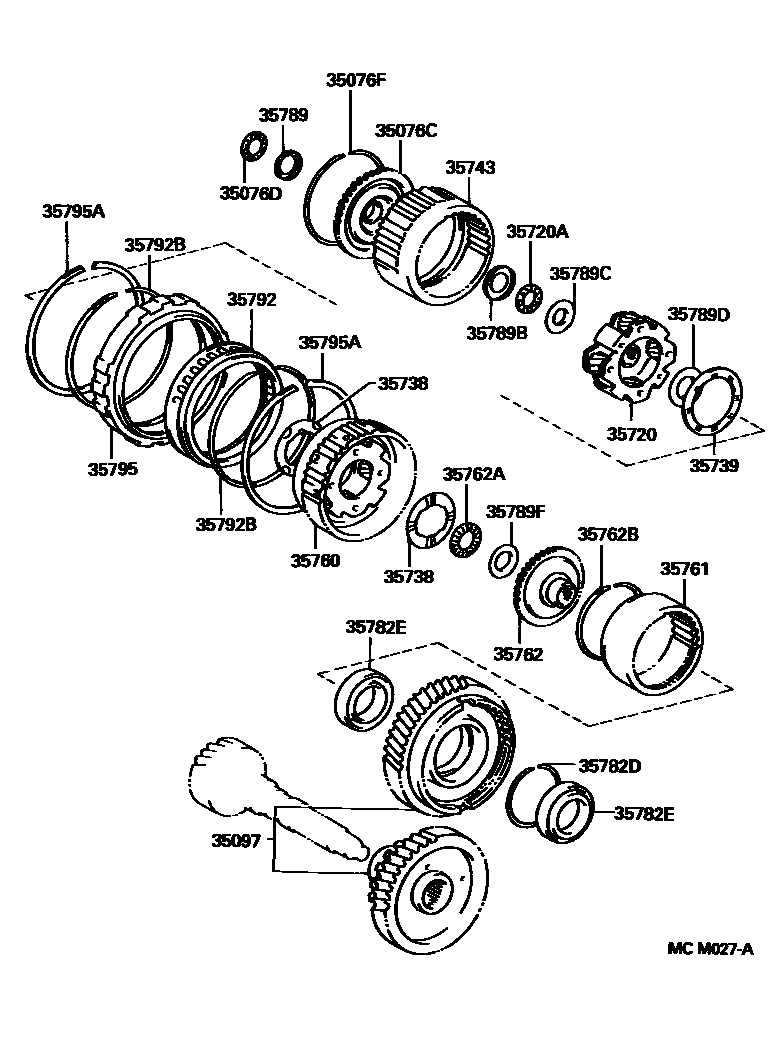

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)
35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)
35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35762FLANGE, REAR PLANETARY RING GEAR
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
35795RACE, 1 WAY CLUTCH OUTER
35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
25 parts on this diagram · 3 diagrams in section
