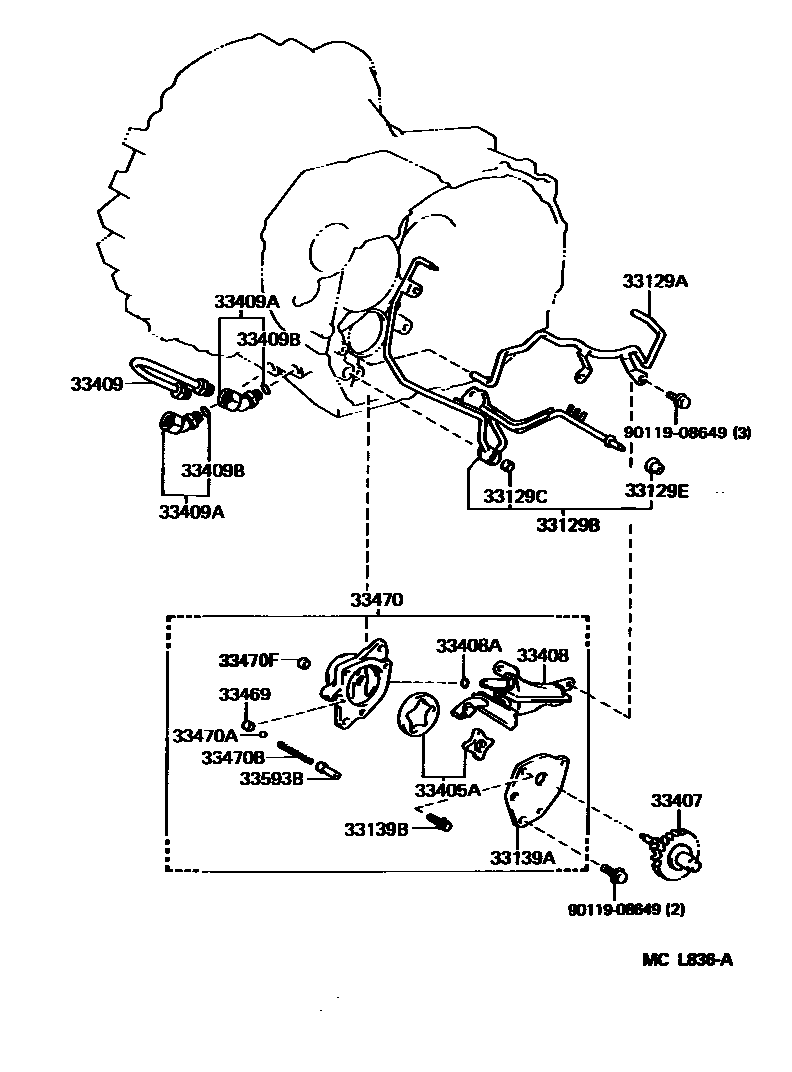

OIL PUMP, OIL COOLER & PIPE (MTM)
33129APIPE, MANUAL TRANSMISSION OIL, NO.1
33129BPIPE, MANUAL TRANSMISSION OIL, NO.2
33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)
33129EBUSH(FOR MANUAL TRANSMISSION OIL PIPE)
33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)
33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)
33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP
33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE
33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL
sub33408-20011
33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
33409TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER
33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
33409BRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)
33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)
33470PUMP ASSY, MANUAL TRANSMISSION OIL
sub33470-12011
33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)
33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)
33470FGASKET (FOR TRANSMISSION OIL PUMP)
33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)
9011908649
main90119-08649
20 parts on this diagram · 1 diagram in section
