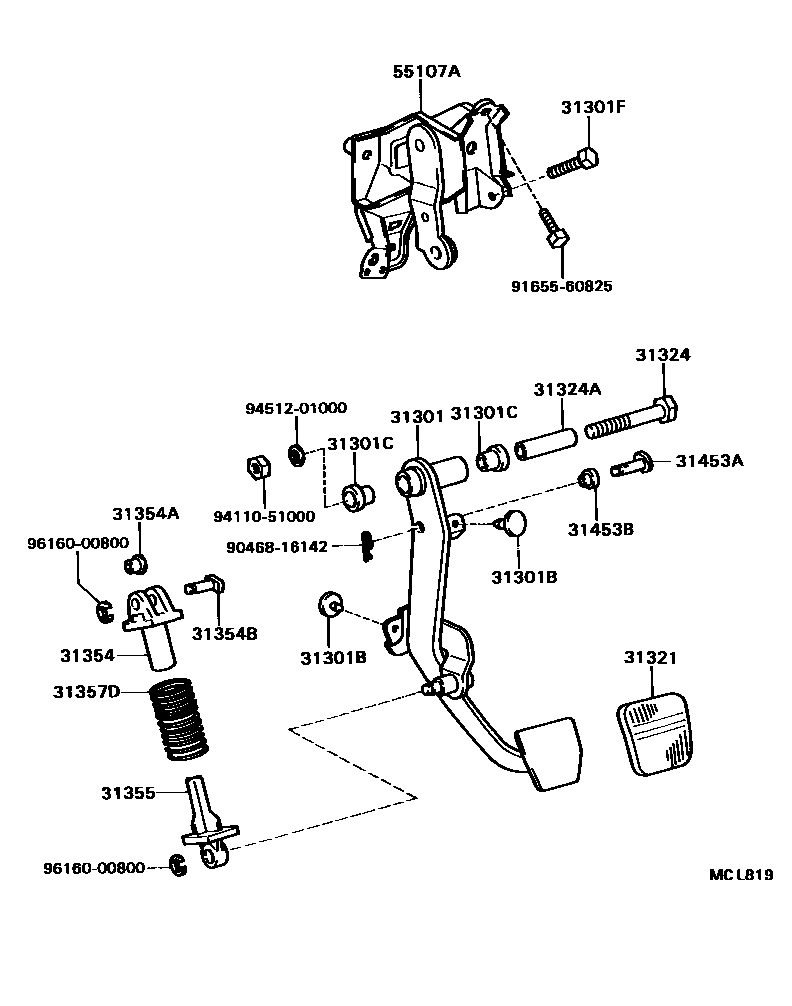

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33010iSXV10,VCV10..NAP..MTM199109-199607

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iSXV10,VCV10..NAP..MTM199109-199408

sub90541-06036

main90541-06036iSXV10..NAP..MTM199408-199607

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iSXV10,VCV10..NAP..MTM199109-199607

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iSXV10,VCV10..NAP..MTM..(DX,SE)199109-199607

31321PAD, CLUTCH PEDAL

main31321-14020iSXV10,VCV10..NAP..MTM199109-199607

31324SHAFT, CLUTCH PEDAL

main90101-10273iSXV10,VCV10..NAP..MTM199109-199607

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iSXV10,VCV10..NAP..MTM199109-199607

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-20030iSXV10,VCV10..NAP..MTM199109-199509

main31354-33010iSXV10..NAP..MTM199509-199607

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iSXV10,VCV10..NAP..MTM199109-199607

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iSXV10,VCV10..NAP..MTM199109-199607

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20030iSXV10,VCV10..NAP..MTM199109-199607

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-35018iSXV10..NAP..MTM199109-199607

main90501-40029iVCV10..NAP..MTM199209-199309

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iSXV10,VCV10..NAP..MTM199109-199607

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iSXV10,VCV10..NAP..MTM199109-199607

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33010iSXV10,VCV10..NAP..MTM199109-199607

9046816142

main90468-16142

9165560825

main91655-60825

9411051000

main94110-51000

9451201000

main94512-01000

9616000800

main96160-00800

20 parts on this diagram · 4 diagrams in section
