IGNITION COIL & SPARK PLUG / GLOW PLUG

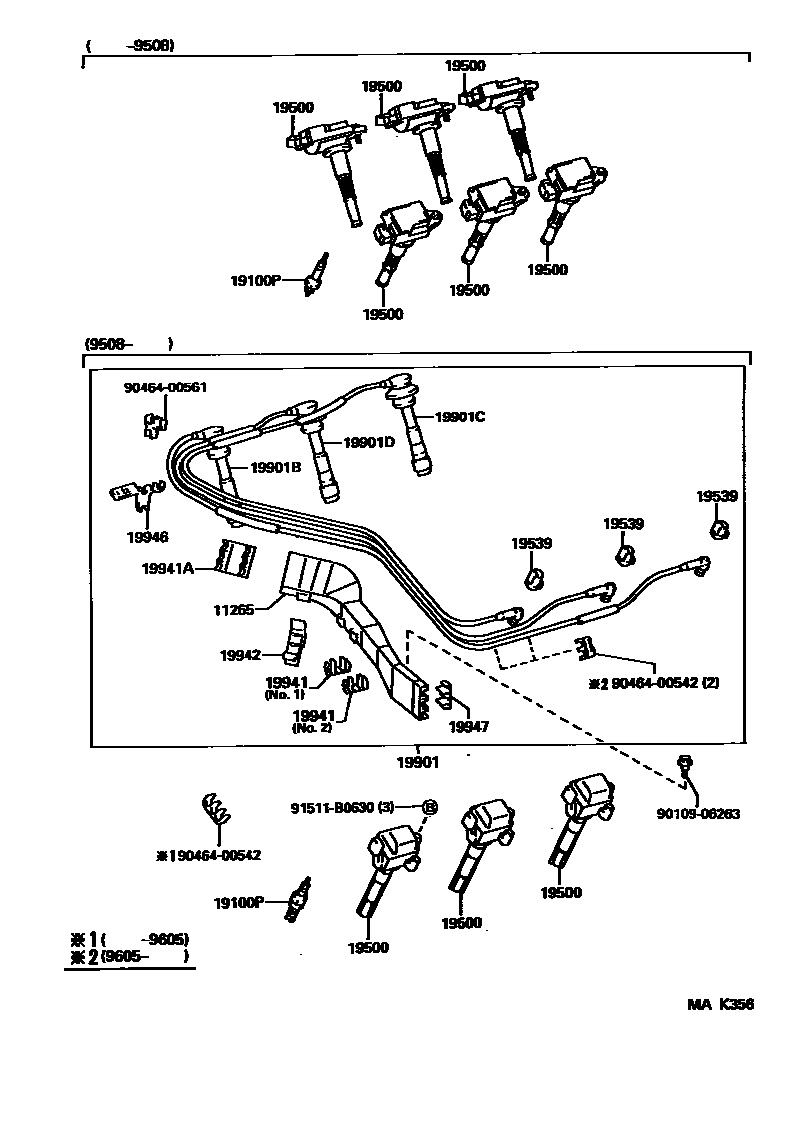

Parts diagram
11265COVER, COIL & RESISTIVE CORD, UPR
main11265-20010i199508-199605
sub11265-20020
main11265-20020i199605-199607
19100PPLUG, SPARK
main90919-01127i199109-199309
PQ20R
main90919-01178i199309-199408
PK20R11,NIPPONDENSO
sub90919-01210
main90919-01178i199109-199607
PK20R11
sub90919-01210
main90919-01194i199508-199607
PK20TR11
19500COIL ASSY, IGNITION
main90919-02197i199309-199607
main90919-02207i199109-199309
main90919-02211i199408-199508
NIPPONDENSO
sub90919-02214
main90919-02211i199309-199508
sub90919-02214
main90919-02214i199408-199508
AISAN
main90919-02215i199508-199607
19539HOLDER, RESISTIVE CODE, NO.4
main19539-11040i199508-199607
main19539-50010i199109-199309
NO.5
main19539-62010i199109-199309
NO.3,NO.4
main19539-62020i199309-199412
main19539-62020i199109-199412
NO.1
main19539-70010i199109-199309
NO.2
main19539-74010i199309-199508
CALIFORNIA SPEC
main19539-74010i199508-199607
main19539-74040i199412-199508
19901CORD SET, COIL & SPARK, W/RESISTIVE
main19037-20010i199508-199605
sub19037-20011
main19037-20011i199605-199607
main90919-21519i199109-199309
sub90919-21607
main90919-21582i199309-199508
CALIFORNIA SPEC
sub90919-29185
main90919-21582i199508-199607
sub90919-29185
main90919-22319i199109-199309
main90919-22370i199309-199508
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90080-91038i199109-199309
main90080-91069i199309-199508
(L)
main90080-91074i199508-199607
(L)
main90080-91074i199309-199508
CALIFORNIA SPEC,(L)
main90919-15165i199109-199309
SUMITOMO
main90919-15169i199109-199309
YAZAKI
main90919-15173i199109-199309
sub90919-15518
main90919-15308i199508-199607
main90919-15400i199309-199508
CALIFORNIA SPEC,(J)
sub90919-15578
main90919-15400i199309-199408
CALIFORNIA SPEC,SUMITOMO
sub90919-15578
main90919-15400i199508-199607
(J)
sub90919-15578
main90919-15409i199309-199508
(J)
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90080-91039i199109-199309
main90080-91070i199309-199508
(L)
main90080-91075i199508-199607
(L)
main90080-91075i199309-199508
CALIFORNIA SPEC,(L)
main90919-15166i199109-199309
SUMITOMO
main90919-15170i199109-199309
YAZAKI
main90919-15176i199109-199309
sub90919-15521
main90919-15309i199508-199607
main90919-15401i199309-199508
CALIFORNIA SPEC,(J)
sub90919-15579
main90919-15401i199309-199408
CALIFORNIA SPEC,SUMITOMO
sub90919-15579
main90919-15401i199508-199607
(J)
sub90919-15579
main90919-15411i199309-199508
(J)
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90080-91040i199109-199309
main90080-91071i199309-199508
(L)
main90080-91076i199508-199607
(L)
main90080-91076i199309-199508
CALIFORNIA SPEC,(L)
main90919-15167i199109-199309
SUMITOMO
main90919-15171i199109-199309
YAZAKI
main90919-15174i199109-199309
sub90919-15519
main90919-15310i199508-199607
main90919-15402i199309-199508
CALIFORNIA SPEC,(J)
sub90919-15580
main90919-15402i199309-199408
CALIFORNIA SPEC,SUMITOMO
sub90919-15580
main90919-15402i199508-199607
(J)
sub90919-15580
main90919-15410i199309-199508
(J)
19941CLAMP, RESISTIVE CORD, NO.1
main19941-20010i199508-199605
main19941-20010i199605-199607
NO.1
main19941-20020i199605-199607
NO.2
19941ACLAMP(FOR RESISTIVE CORD)
main19941-65040i199508-199607
19942CLAMP, RESISTIVE CORD, NO.2
main19942-20010i199508-199607
19946CLAMP, RESISTIVE CORD, NO.3
main19946-20010i199508-199607
19947CLAMP, RESISTIVE CORD, NO.4
main19947-20010i199508-199607
9010906263
main90109-06263
9046400542
main90464-00542
9046400561
main90464-00561
91511B0630
main91511-B0630

17 parts on this diagram · 5 diagrams in section
