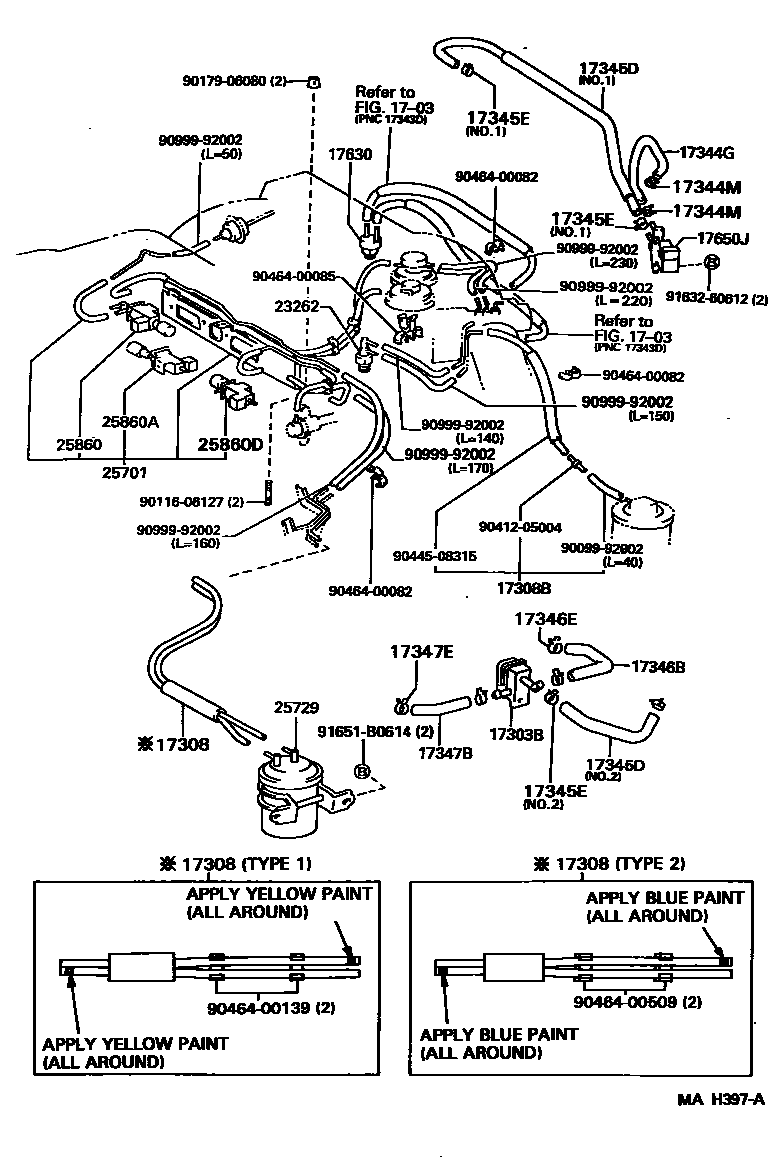

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1703

17303BPIPE SUB-ASSY, AIR, NO.1

main17303-0A010i1MZFE..MCV10..NAP199508-199607

main17303-20010i1MZFE..MCV10..NAP199309-199607

main17303-62010i3VZFE..VCV10..NAP199109-199309

main17303-74040i5SFE..SXV10..NAP199109-199508

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-20020i1MZFE..MCV10..NAP199309-199403

main17308-20020i1MZFE..MCV10..NAP199403-199607

TYPE 1

main17308-20040i1MZFE..MCV10..NAP199403-199607

TYPE 2

main17308-62040i3VZFE..VCV10..NAP199109-199308

main17308-62041i3VZFE..VCV10..NAP199308-199309

main17308-74130i5SFE..SXV10..NAP199109-199309

sub17308-74131

main17308-74131i5SFE..SXV10..NAP199309-199607

main17308-74460i5SFE..SXV10..NAP..ATM199508-199607

17308BHOSE SUB-ASSY, VACUUM

main17308-20030i1MZFE..MCV10..NAP199309-199607

main17308-74490i5SFE..SXV10..NAP199508-199607

17344GHOSE, AIR, NO.4

main17344-0A010i1MZFE..MCV10..NAP199408-199508

sub17344-20010

main17344-20010i1MZFE..MCV10..NAP199309-199508

17344MCLIP(FOR AIR HOSE, NO.4)

main90467-13007i1MZFE..MCV10..NAP199309-199408

SURGE TANK SIDE

sub96132-51300

main90467-15006i1MZFE..MCV10..NAP199309-199408

VSV SIDE

17345DHOSE, AIR, NO.5

main17345-0A010i1MZFE..MCV10..NAP199408-199508

NO.1

sub17345-20020

main17345-0A010i1MZFE..MCV10..NAP199309-199408

sub17345-20020

main17345-0A020i1MZFE..MCV10..NAP199408-199607

NO.2

main17345-20010i1MZFE..MCV10..NAP199309-199408

main17345-20010i1MZFE..MCV10..NAP199408-199607

NO.2

main17345-62010i3VZFE..VCV10..NAP199109-199110

sub17345-62011

main17345-62011i3VZFE..VCV10..NAP199110-199309

17345ECLAMP OR CLIP(FOR AIR HOSE, NO.5)

main90467-13007i1MZFE..MCV10..NAP199309-199508

NO.1,SURGE TANK SIDE

sub96132-51300

main90467-15006i1MZFE..MCV10..NAP199309-199508

NO.1,VSV SIDE

main90467-16003i1MZFE..MCV10..NAP199408-199607

sub96134-51500

main90467-16003i1MZFE..MCV10..NAP199309-199408

NO.2

sub96134-51500

main96135-41300i3VZFE..VCV10..NAP199109-199309

sub96135-51300

17346BHOSE, AIR, NO.6

main17346-0A010i1MZFE..MCV10..NAP199408-199508

main17346-20010i1MZFE..MCV10..NAP199309-199607

main17346-62010i3VZFE..VCV10..NAP199109-199309

main17346-74050i5SFE..SXV10..NAP..SED..MTM..USA199508-199607

W(*AIC)

main17346-74050i5SFE..SXV10..NAP199109-199508

main17346-74100i5SFE..SXV10..NAP..WG..CND;5SFE..SXV10..NAP..(CP,SED)..ATM199508-199512

main17346-74130i5SFE..SXV10..NAP..WG..CND;5SFE..SXV10..NAP..(CP,SED)..ATM199512-199607

17346ECLIP(FOR AIR HOSE NO.6)

main90467-13007i1MZFE..MCV10..NAP199408-199607

sub96132-51300

main96132-41300i1MZFE..MCV10..NAP199309-199512

sub96132-51300

main96133-41300i1MZFE..MCV10..NAP199512-199607

17347BHOSE, AIR, NO.7

main17347-0A010i1MZFE..MCV10..NAP199408-199607

main17347-20010i1MZFE..MCV10..NAP199309-199607

main17347-74020i5SFE..SXV10..NAP199109-199607

17347ECLIP(FOR AIR HOSE NO.7)

main90467-13007i1MZFE..MCV10..NAP199408-199607

sub96132-51300

main96132-41300i1MZFE..MCV10..NAP199309-199512

sub96132-51300

main96133-41300i1MZFE..MCV10..NAP199512-199607

17630VALVE ASSY, AIR CONTROL

main17630-74010i3VZFE..VCV10..NAP199109-199607

main17630-74040i5SFE..SXV10..NAP199109-199607

17650VALVE ASSY, VACUUM SWITCHING

main25860-62010i3VZFE..VCV10..NAP199109-199309

17650JVALVE, SOLENOID W/ADJUST SCREW

main90910-13006i1MZFE..MCV10..NAP199309-199508

23262VALVE, BIMETAL VACUUM SWITCHING, NO.1

main90925-05068i5SFE..SXV10..NAP199109-199607

main90925-05075i3VZFE..VCV10..NAP199109-199309

main90925-05086i1MZFE..MCV10..NAP199309-199607

25701VALVE SET, EMISSION CONTROL

main25701-20010i1MZFE..MCV10..NAP199309-199408

sub25701-20011

sub90464-00082

sub90999-92004

main25701-20011i1MZFE..MCV10..NAP199408-199508

main25701-20040i1MZFE..MCV10..NAP199508-199607

main25701-62010i3VZFE..VCV10..NAP199109-199309

25729TANK, VACUUM SURGE W/BRACKET

main25729-62010i3VZFE..VCV10..NAP199109-199607

sub25729-20010

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-20020i5SFE..SXV10..NAP..WG..CND;5SFE..SXV10..NAP..(CP,SED)..ATM199508-199607

NO.2

main25860-62010i1MZFE..MCV10..NAP199309-199607

main25860-74050i5SFE..SXV10..NAP199109-199607

NO.1

main25860-74160i5SFE..SXV10..NAP..USA199309-199508

CALIFORNIA SPEC

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12074i1MZFE..MCV10..NAP199309-199607

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main90910-12080i1MZFE..MCV10..NAP199309-199607

9009992002

main90099-92002

9011606127

main90116-06127

9017906080

main90179-06080

9041205004

main90412-05004

9044508315

main90445-08315

9046400082

main90464-00082

9046400085

main90464-00085

9046400139

main90464-00139

9046400509

main90464-00509

9099992002

main90999-92002

9163260612

main91632-60612

91651B0614

main91651-B0614

33 parts on this diagram · 7 diagrams in section
