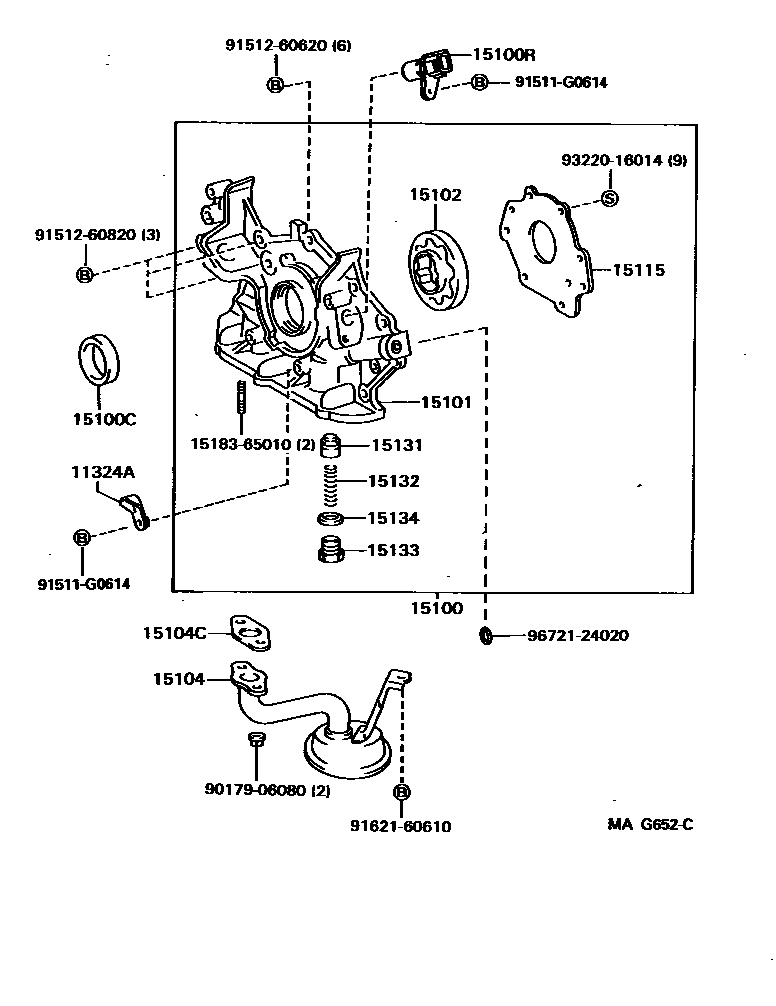

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

11324APLATE, TIMING BELT

main11324-20010i1MZFE..MCV10..NAP199309-199607

15100PUMP ASSY, OIL

main15100-03020i5SFE..SXV10..NAP199109-199508

(L)

main15100-03030i5SFE..SXV10..NAP199508-199607

(L)

main15100-0A010i1MZFE..MCV10..NAP199408-199607

main15100-20020i1MZFE..MCV10..NAP199309-199607

main15100-62030i3VZFE..VCV10..NAP199109-199309

main15100-74020i5SFE..SXV10..NAP199109-199508

(J)

sub15100-74040

sub15197-74030

main15100-74030i5SFE..SXV10..NAP199508-199607

(J)

15100CSEAL(FOR OIL PUMP)

main15165-70010i5SFE..SXV10..NAP199109-199304

(J)

main15165-74020i5SFE..SXV10..NAP199304-199607

(J)

main90080-31003i5SFE..SXV10..NAP199109-199607

(L)

main90080-31034i1MZFE..MCV10..NAP199408-199607

main90311-40013i1MZFE..MCV10..NAP199109-199607

sub90311-40022

15100RSENSOR, CRANK POSITION

main90919-05012i1MZFE..MCV10..NAP199309-199607

main90919-05017i5SFE..SXV10..NAP199508-199607

15101BODY SUB-ASSY, OIL PUMP

main15101-0A010i1MZFE..MCV10..NAP199408-199607

main15101-20020i1MZFE..MCV10..NAP199309-199607

main15101-62030i3VZFE..VCV10..NAP199109-199309

15102ROTOR SET, OIL PUMP

main15102-03020i5SFE..SXV10..NAP199109-199607

(L)

main15102-74020i5SFE..SXV10..NAP199109-199607

(J)

main15103-0A010i1MZFE..MCV10..NAP199408-199607

main15103-62030i3VZFE..VCV10..NAP199109-199607

15104STRAINER SUB-ASSY, OIL

main15104-03030i5SFE..SXV10..NAP199109-199402

(L)

sub15104-03031

main15104-03031i5SFE..SXV10..NAP199402-199607

main15104-0A010i1MZFE..MCV10..NAP199408-199607

main15104-20020i1MZFE..MCV10..NAP199309-199607

main15104-62030i3VZFE..VCV10..NAP199109-199309

main15104-74060i5SFE..SXV10..NAP199109-199607

(J)

15104CGASKET(FOR OIL STRAINER)

main15147-0A010i1MZFE..MCV10..NAP199408-199607

main15147-20010i1MZFE..MCV10..NAP199309-199607

main15147-62020i3VZFE..VCV10..NAP199109-199309

main15149-03020i5SFE..SXV10..NAP199408-199607

(L)

main15149-74020i5SFE..SXV10..NAP199109-199309

main15149-74030i5SFE..SXV10..NAP199309-199607

(J)

15115COVER, OIL PUMP

main15115-0A010i1MZFE..MCV10..NAP199408-199607

main15115-20020i1MZFE..MCV10..NAP199309-199607

main15115-62030i3VZFE..VCV10..NAP199109-199309

15131VALVE, OIL PUMP RELIEF

main15131-03021i5SFE..SXV10..NAP199109-199607

(L)

main15131-24010i3VZFE..VCV10..NAP199109-199309

main15131-42021i1MZFE..MCV10..NAP199309-199607

main15131-63011i5SFE..SXV10..NAP199109-199607

(J)

15132SPRING, OIL PUMP RELIEF VALVE

main15132-03020i5SFE..SXV10..NAP199109-199607

(L)

main15132-0A010i1MZFE..MCV10..NAP199408-199607

main15132-20020i1MZFE..MCV10..NAP199309-199607

main15132-62030i3VZFE..VCV10..NAP199109-199309

main15132-88380i5SFE..SXV10..NAP199109-199607

(J)

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1MZFE..MCV10..NAP199309-199607

main15133-62030i3VZFE..VCV10..NAP199109-199309

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1MZFE..MCV10..NAP199309-199408

main15134-67010i1MZFE..MCV10..NAP199603-199607

main15134-70030i1MZFE..MCV10..NAP199408-199603

1518365010BOLT, UNION(FOR OIL PUMP)

main15183-65010

9017906080

main90179-06080

91511G0614

main91511-G0614

9151260620

main91512-60620

9151260820

main91512-60820

9162160610

main91621-60610

9322016014

main93220-16014

9672124020

main96721-24020

21 parts on this diagram · 4 diagrams in section
