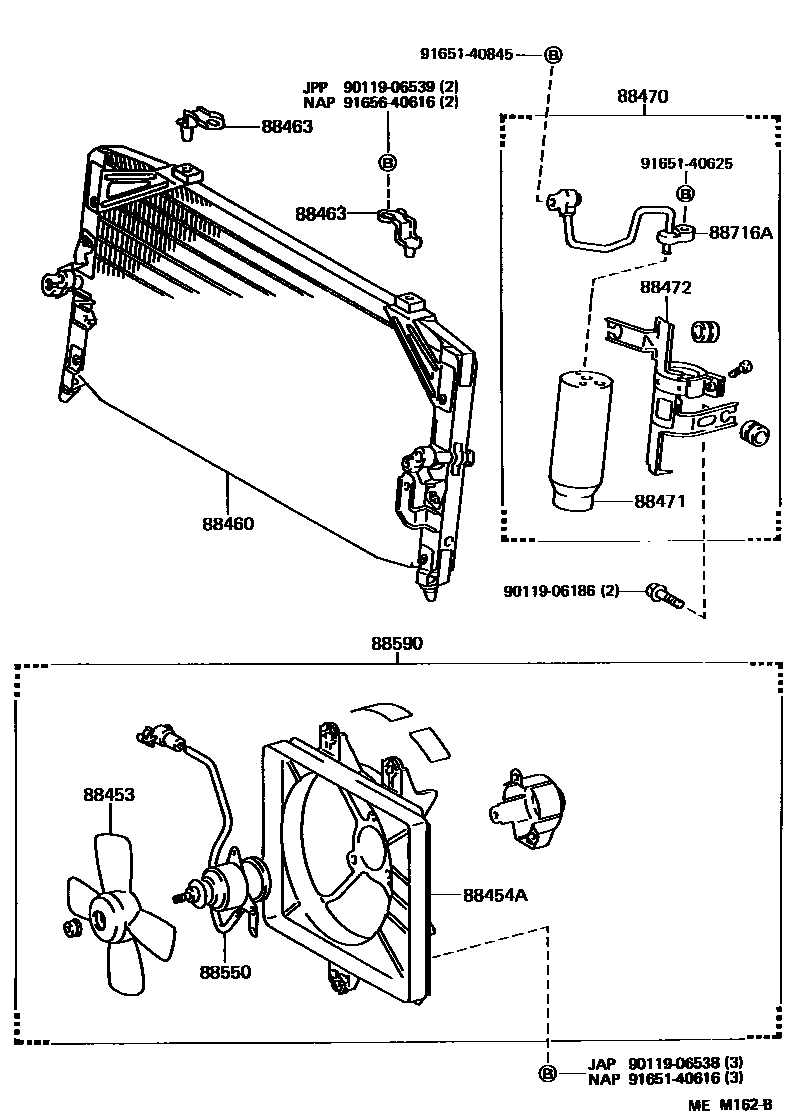

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88453FAN, COOLING (FOR CONDENSER)

main88453-03010iSV21198807-199109

main88453-03020iVZV21..LE198909-199109

88454ASHROUD, FAN

main88454-03010iSV21198807-199109

main88454-03020iVZV21..LE198909-199109

88460CONDENSER ASSY, COOLER

main88460-03010iSV21,VZV21198807-199109

88463BRACKET, COOLER CONDENSER, NO.1

main88463-03010iSV21,VZV21198807-199109

88470RECEIVER & DRYER ASSY, COOLER

main88470-03010iSV21,VZV21198807-199109

88471TANK, RECEIVER AIR CONDITIONER

main88471-03010iSV21,VZV21198807-199109

88472BRACKET, RECEIVER TANK, NO.1

main88473-03010iSV21,VZV21198807-199109

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-03010iSV21198807-199109

main88550-03020iVZV21..LE198909-199109

88590BLOWER ASSY, W/SHROUD

main88590-03010iSV21198807-199109

main88590-03020iVZV21..LE198909-199109

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-03010iSV21,VZV21198807-199109

9011906186

main90119-06186

9011906538

main90119-06538

9011906539

main90119-06539

9165140616

main91651-40616

9165140625

main91651-40625

9165140845

main91651-40845

9165640616

main91656-40616

17 parts on this diagram · 4 diagrams in section
