ABS & VSC

88263ARELAY, SKID CONTROL

main88263-14110iVZV21..LE198909-199109

MOTER RELAY

main88263-14120iVZV21..LE198909-199109

SOLENOID RELAY

89411SENSOR, SPEED

main89542-32010iVZV21..LE198909-199109

FRONT RH

main89543-32010iVZV21..LE198909-199109

FRONT LH

main89545-32010iVZV21..LE198909-199109

REAR RH

main89546-32010iVZV21..LE198909-199109

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-32030iVZV21..LE198909-199109

89549BRACKET, SKID CONTROL COMPUTER

main89549-32020iVZV21..LE198909-199109

89638COVER, BRAKE CONTROL COMPUTER

main89638-32010iVZV21..LE198909-199109

8826632050CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32050

8826632060CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32060

8826632070CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32070

8826632080CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32080

8826632090CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32090

8826632100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32100

8826632110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32110

8826632120CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32120

9015950193

main90159-50193

9017906081

main90179-06081

9046400102

main90464-00102

9161160612

main91611-60612

9161160614

main91611-60614

9161160622

main91611-60622

9165160614

main91651-60614

9165540616

main91655-40616

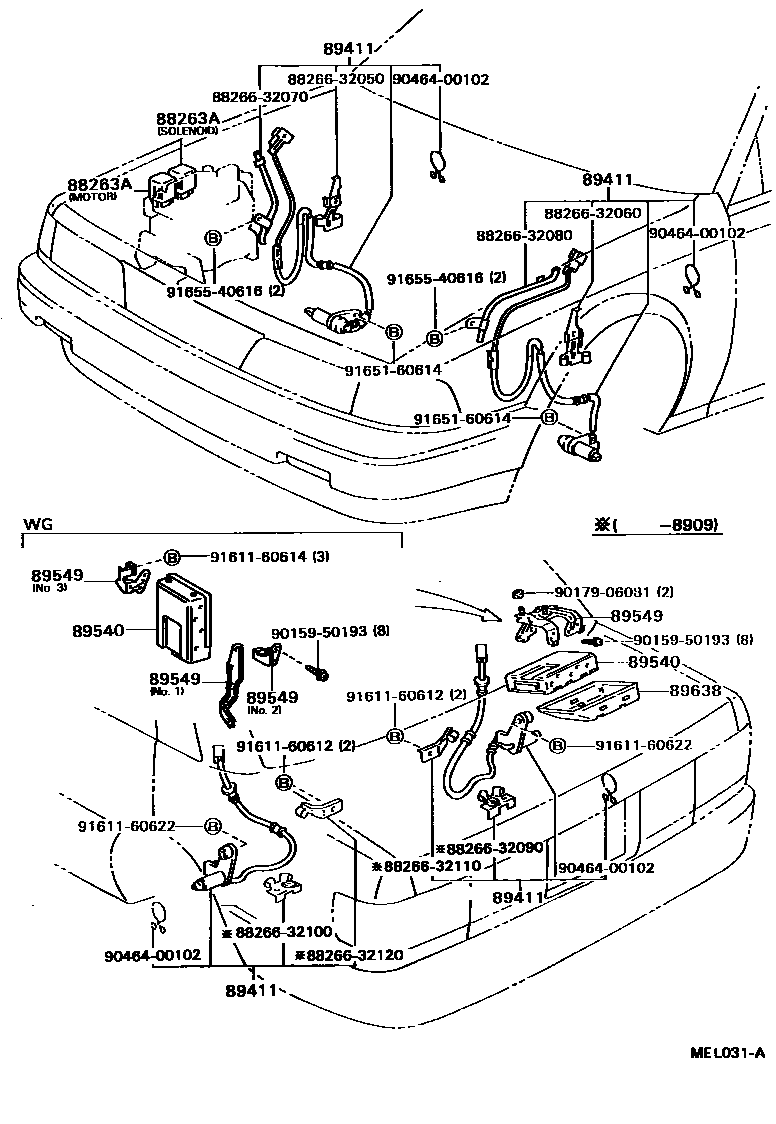

21 parts on this diagram · 1 diagram in section
