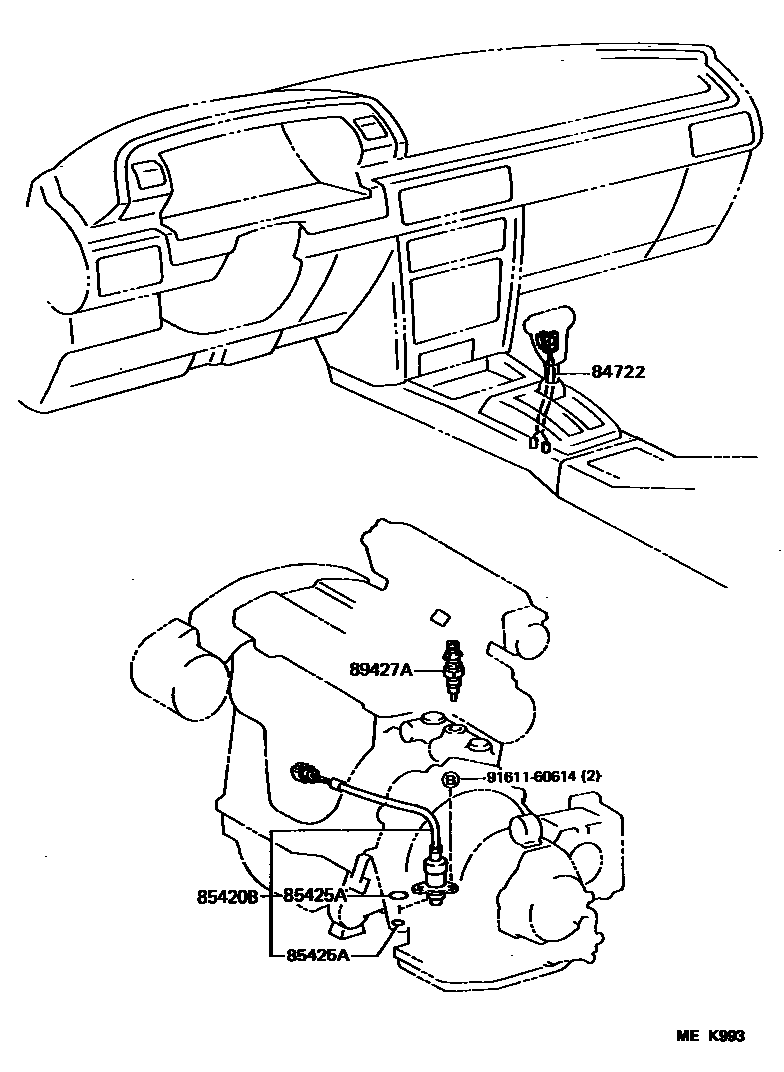

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT 0003 1ECT

84722SWITCH, TRANSMISSION CONTROL

main84722-32040-B0iSV21,VZV21..4FC..(LE,STD)198807-199109

MEDIUM GRAY,TRIM1#

sub84722-32040

main84722-32040-D0iSV21,VZV21..4FC..(LE,STD)198807-199109

MAROON,TRIM3#

sub84722-32040

main84722-32040-E0iSV21,VZV21..4FC..(LE,STD)198807-199109

BROWN,TRIM4#

sub84722-32040

main84722-32040-J0iSV21,VZV21..LE198807-199109

DARK BLUE,TRIM8#

sub84722-32040

85420SOLENOID ASSY, TRANSMISSION

main85420-32020iSV21..4FC..(DX,LE)198807-198809

NO.1

sub85420-32021

main85420-32021iSV21..4FC..(DX,LE)198807-199109

NO.1

main85420-32040iSV21..4FC..(DX,LE)198807-198809

NO.2

sub85420-32041

main85420-32041iSV21..4FC..(DX,LE)198807-199109

NO.2

main85420-32071iSV21..4FC..(DX,LE)198807-199109

NO.3

sub85420-32061

main85420-32102iVZV21..4FC198909-199109

NO.1

main85420-32120iVZV21..4FC198909-199109

NO.2

sub85420-32121

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iSV21..4FC..STD198807-199109

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iSV21..4FC..STD198807-199109

ID=7

main96721-19017iSV21..4FC..STD198807-199109

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iSV21..4FC..STD198807-199109

9161160614

main91611-60614

6 parts on this diagram · 3 diagrams in section
